Sunricher SR-2850RGB IT SR-2830RGB US Manual

RF RGB Wall Mounted Controller
Important: Read All Instructions Prior to Installation

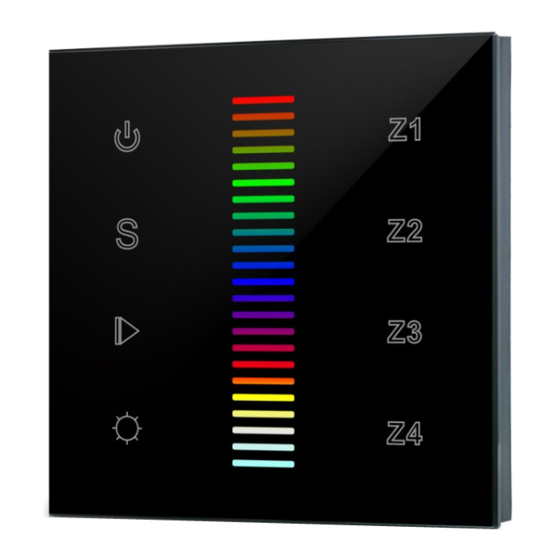

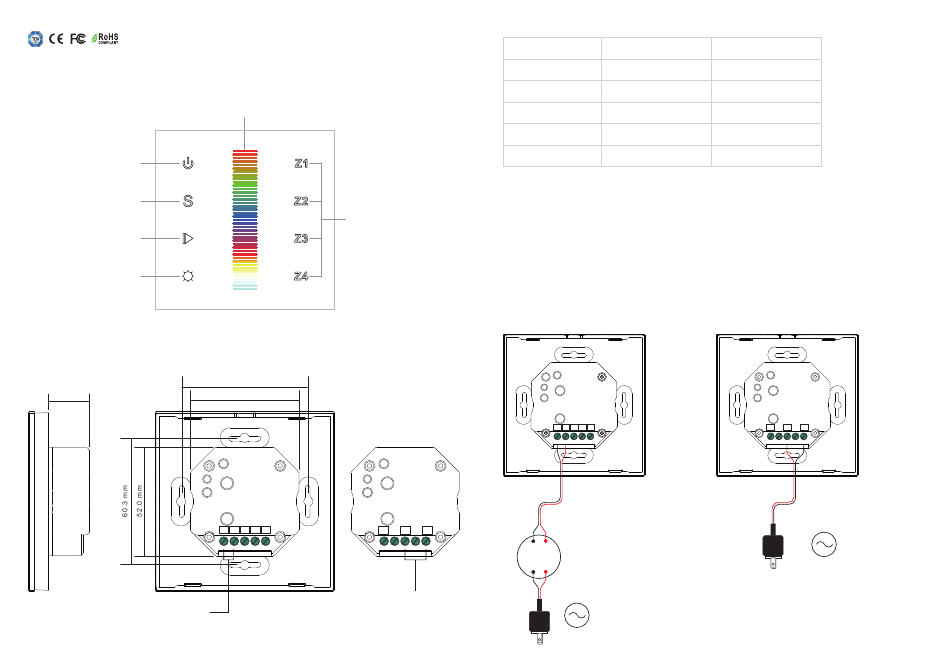

Function introduction
Color slider, touch to select R/G/B color
Click to turn on/off
Press and hold down to save
color; Click to recall the saved
Click to play / pause the 10
built-in effects, Press and hold
down to speed up/down the
running effect
Press and hold down to
increase/decrease light
intensity
19.4 mm
DC Power input
Total 4 zones. Click to choose
the zone, Press and hold down to
turn on/off corresponding zone
Front side
60.3 mm
52.0 mm
DC Version AC Version
RF Wall RF Wall
Panel Controller Panel Controller
V- V+
AC Power input
Back side
Product Data
09.2830R.04197
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
• Touch sensitive
• Glass interface(white & black)
• Compatible with all universal series RF receivers, radio frequency: 869.5/434MHz
• Control RGB color
• Control 4 zone of RF receiver synchronously and separately
• Waterproof grade: Ip20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring diagram
DC Version
RF Wall
Panel Controller
V- V+
L N
12-24VDC
PSU
AC Power
50/60Hz
AC 100-240V
DC Version AC Version
RF signal RF signal
12-24VDC 100-240VAC
20 mA 20 mA
0-40°C 0-40°C
8% to 80% 8% to 80%
86x86x29.1mm 86x86x29.1mm
AC Version
AC Version
RF Wall
Panel Controller
L N
AC 100-240V
AC Power
50/60Hz
