Sunricher SR-2850C Manual

RF RGB & Dual Color Wall Mounted Controller
Important: Read All Instructions Prior to Installation

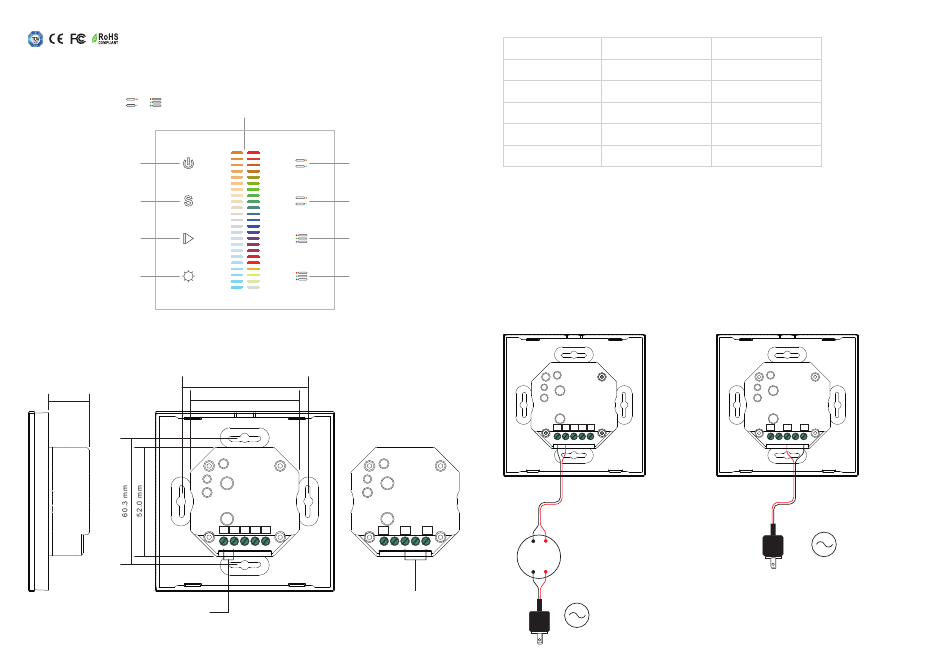

Function introduction

Click or to choose the zone, Touch the sliders to dim CCT
color(if choose CCT color zone) or RGB color(if choose RGB color zone)
Click to turn on/off
Press and hold down to save
color; Click to recall the saved
Click to play / pause the 10
built-in effects, Press and hold
down to speed up/down the
running effect
Press and hold down to
increase/decrease light
intensity
19.4 mm
DC Power input
CCT color zone 1.Click to choose
the zone, Press and hold down to
turn on/off corresponding zone
CCT color zone 2.Click to choose
the zone, Press and hold down to
turn on/off corresponding zone
RGB color zone 1.Click to choose
the zone, Press and hold down to
turn on/off corresponding zone
RGB color zone 2.Click to choose
the zone, Press and hold down to
turn on/off corresponding zone

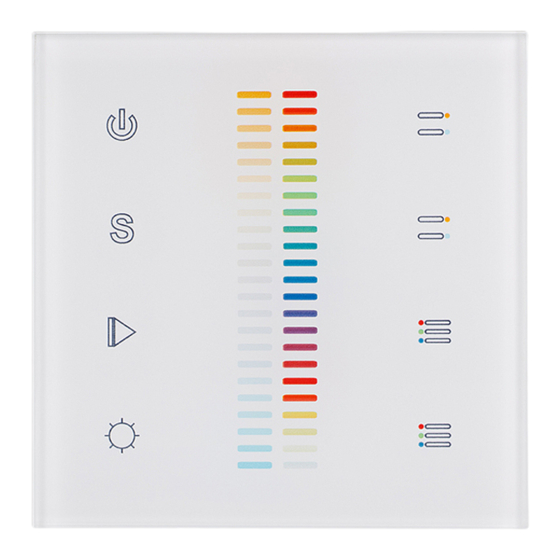

Front side
60.3 mm
52.0 mm
DC Version AC Version
RF Wall RF Wall
Panel Controller Panel Controller
V- V+
AC Power input
Back side

Product Data

09.2830C.04192
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
• Touch sensitive
• Glass interface(white & black)
• Compatible with all universal series RF receivers, radio frequency: 869.5/434MHz
• Control RGB+CCT color
• Control 4 zone of RF receiver synchronously and separately
• Waterproof grade: Ip20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Wiring diagram

DC Version
RF Wall
Panel Controller
V- V+
L N
12-24VDC
PSU
AC Power
50/60Hz
AC 100-240V
DC Version AC Version
RF signal RF signal
12-24VDC 100-240VAC
20 mA 20 mA
0-40°C 0-40°C
8% to 80% 8% to 80%
86x86x29.1mm 86x86x29.1mm
AC Version
AC Version
RF Wall
Panel Controller
L N
AC 100-240V
AC Power
50/60Hz
