Sunricher SR-2855T2 Manual

RF Single Color Wall Mounted Controller
Important: Read All Instructions Prior to Installation

Function introduction

Click to turn on/off, press and hold down
to increase/decrease light intensity
Zone 1
Zone 3
19.50 mm
Wall Mounted Controller
Zone 2
Zone 4
Front side
101.00 mm
83.00 mm
71.00 mm
RF RGBW Color
DC Version
DC INPUT
V+ V+ V- V-
DC Power input
AC INPUT
L L N N
AC Version
AC Power input
Back side
Product Data
09.28T2I.04272
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
• Touch sensitive
• Glass interface(white & black)
• Control single color
• Control 4 zones synchronously and separately
• Compatible with all universal series RF receivers, radio frequency: 868/869.5/434MHz
• Back lighting for finding in the dark
• Waterproof grade: Ip20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

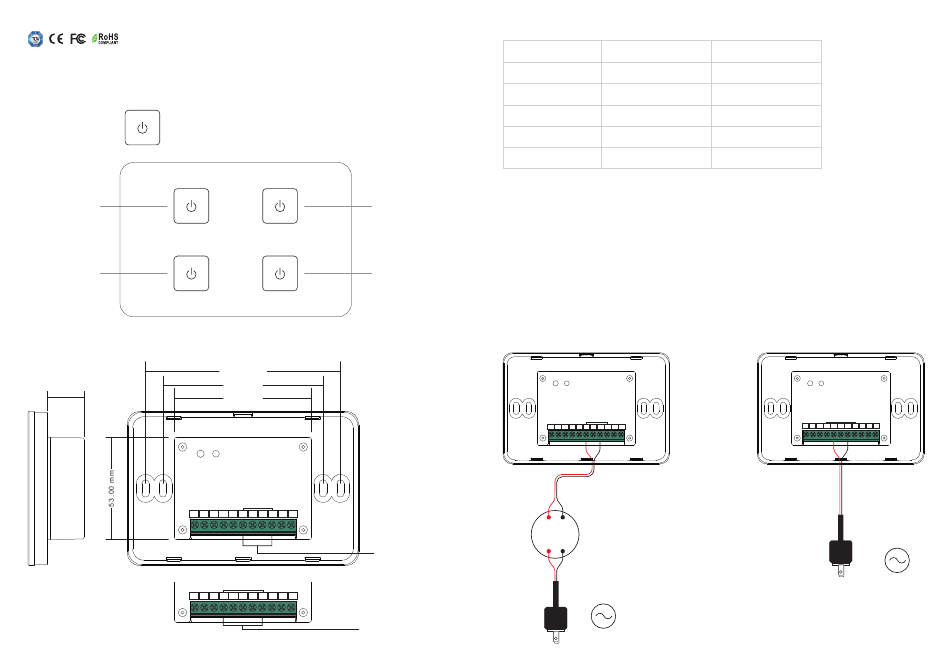

Wiring diagram

DC Version
RF RGBW Color
Wall Mounted Controller
V+ V+ V- V-
12-24VDC
PSU
AC 100-240V
DC Version AC Version
RF signal RF signal
12-24VDC 100-240VAC
200 mA 15 mA
0-40°C 0-40°C
8% to 80% 8% to 80%
120x80x29.1mm 120x80x29.1mm
DC INPUT
AC Power
50/60Hz
AC Version
RF RGBW Color
Wall Mounted Controller
AC INPUT
L L N N
AC Power
AC 100-240V
50/60Hz
