Sunricher SR-2830RGB Manual

RF RGB Wall Mounted Controller
Important: Read All Instructions Prior to Installation

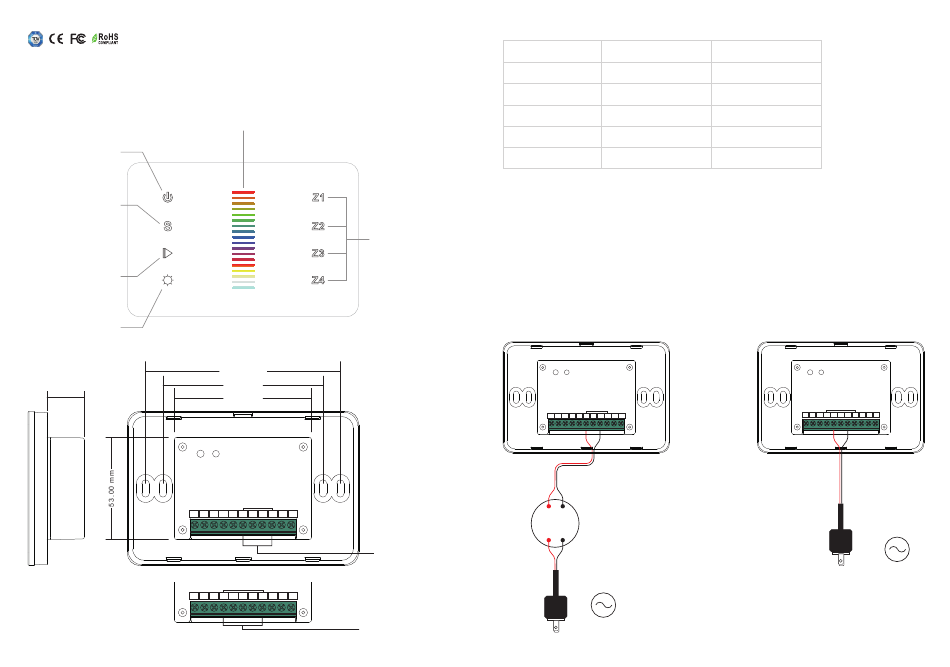

Function introduction

Color slider, touch to select R/G/B color
Click to turn on/off
Press and hold down to
save color; Click to recall
the saved
Click to play / pause the
10 built-in effects, Press
and hold down to speed
up/down the running effect
Press and hold down to
increase/decrease light
intensity
19.50 mm
Wall Mounted Controller
Total 4 zones, click to
choose zone, Press and
hold down to turn on/off
corresponding zone
Front side
101.00 mm
83.00 mm
71.00 mm
RF Single Color
DC Version
DC INPUT
V+ V+ V- V-
DC Power input
AC INPUT
L L N N
AC Version
AC Power input
Back side

Product Data

09.283RI.04193
Output Signal
Power Supply
Power consumption
Operating temperature
Relative humidity
Dimensions
• Touch sensitive
• Glass interface(white & black)
• Control RGB color
• Control 4 zones synchronously and separately
• Compatible with all universal series RF receivers, radio frequency: 869.5/434MHz
• Waterproof grade: Ip20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Wiring diagram

DC Version
RF Single Color
Wall Mounted Controller
V+ V+ V- V-
12-24VDC
PSU
AC 100-240V
DC Version AC Version
RF signal RF signal
12-24VDC 100-240VAC
20 mA 20 mA
0-40°C 0-40°C
8% to 80% 8% to 80%
120x80x29.1mm 120x80x29.1mm
DC INPUT
AC Power
50/60Hz
AC Version
RF Single Color
Wall Mounted Controller
AC INPUT
L L N N
AC Power
AC 100-240V
50/60Hz
