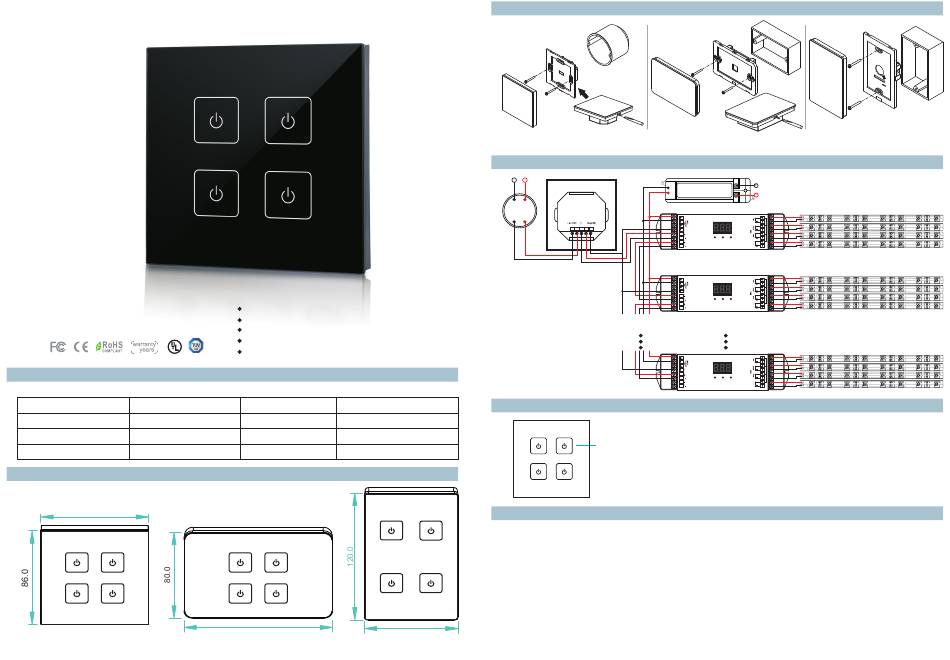

Sunricher SR-2202T2 IT Manual

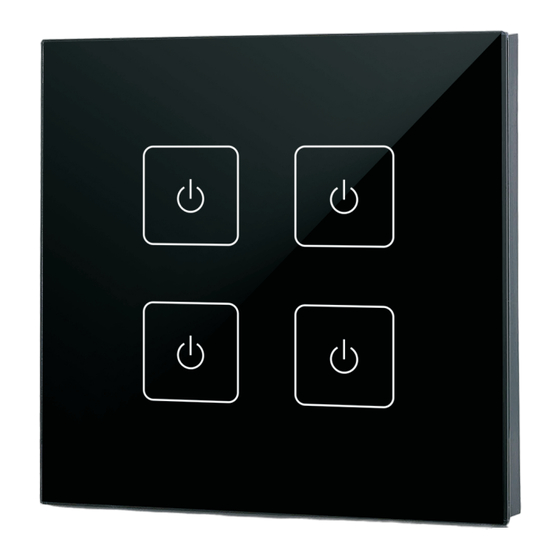

Wall mounted single color DMX512 Master
5
ISO9001：2000

Parameter

Remote
Operation Voltage
Part No.
SR-2202T2 12-24VDC
SR-2202T2(IT) 12-24VDC
SR-2202T2(US) 12-24VDC

Product Size

86.0
SR-2202T2
SR-2202T2
4 zone
Touch sensitive
Glass interface
Back lighting for finding in the dark
Italian/ Australian, US wall mounted size available as well.
Output
Dimensions (mm)
DMX512 Signal 86x86x29.1
DMX512 Signal 120x80x29.1
DMX512 Signal 75x120x29.1
120.0
SR-2202T2(IT) SR-2202T2(US)

Installation

SR-2202T2

Wiring diagram

110V-230VAC
N L
Power Supply
SR-2202T2
12-24VDC
GND Vin D-

Operation

4 zones
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
75.0
6) Please ensure that the cable is secured tightly in the connector
7) For update information please consult your supplier.
SR-2202T2(IT)
Power Supply
110V-230VAC
12-36VDC
SR-2102B
D+ GND
DMX512 Decoder
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
After connect well with DMX decoders, please set the DMX
decoders address as below:
Short press on/off
DMX decoder's address 001 is controlled by Zone 1
Long press dim up
DMX decoder's address 005 is controlled by Zone 2
long press again dim down
DMX decoder's address 009 is controlled by Zone 3
DMX decoder's address 013 is controlled by Zone 4
SR-2202T2(US)
