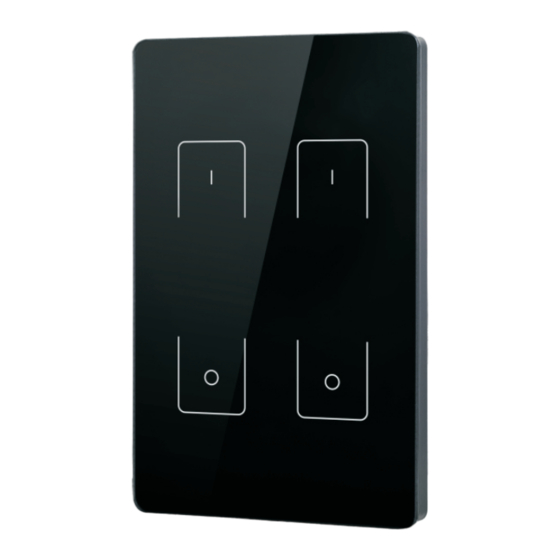

Wall mounted single color DMX512 Master
Parameter
Remote
Operation Voltage
Part No.
SR-2202T1(US)
12-24VDC
Product Size
75.0
SR-2202T1(US)
2 zone
Touch sensitive
Glass interface
Back lighting for finding in the dark
Italian/ Australian, US wall mounted size available as wel l.
5
ISO9001：2000
Output
Dimensions (mm)
DMX512 Signal
75x120x29.1
Installation
Wiring diagram
110V-230VAC
N
L
Power Supply
12-24VDC
SR-2202T1(US)
GND
Vin
D-
D+
GND
Operation
Zone 1
Zone 2
Short press on
Long press dim up
Short press off
Long press dim down
Power Supply
110V-230VAC
12-36VDC
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
After connect well with DMX decoders, please set the DMX
decoders address as below:
DMX decoder's address 001 is controlled by Zone 1
DMX decoder's address 005 is controlled by Zone 2
