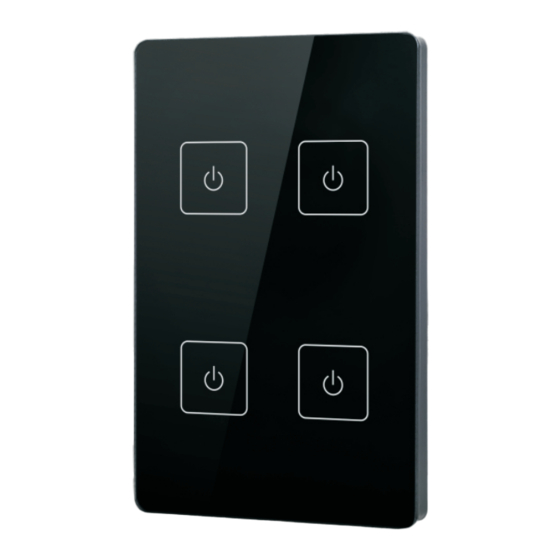

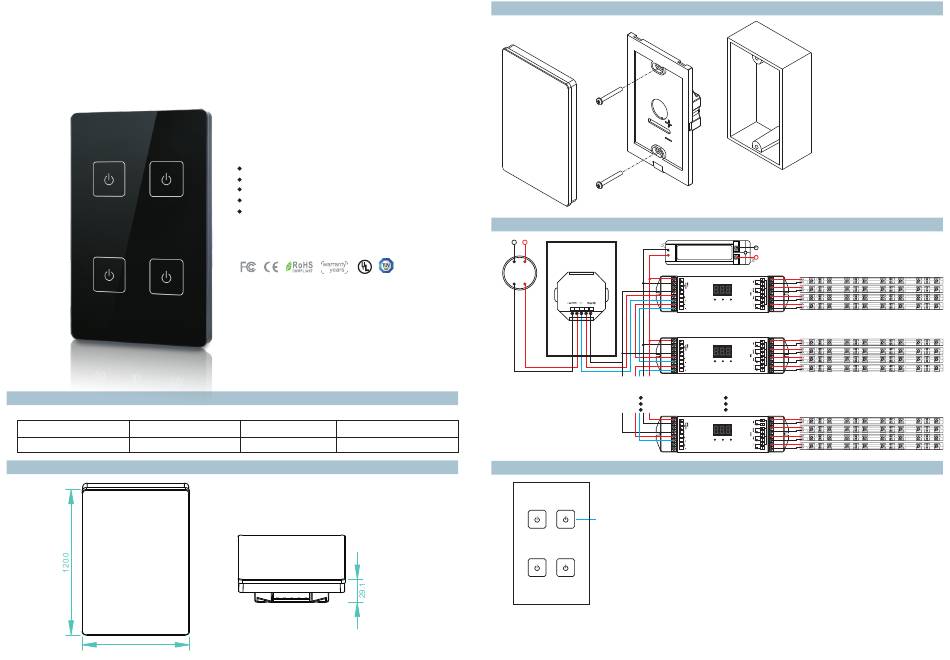

Wall mounted single color DMX512 Master
Parameter
Remote
Part No.
Operation Voltage
SR-2202T2(US)
12-24VDC
Product Size
75.0
SR-2202T2(US)
4 zone
Touch sensitive
Glass interface
Back lighting for finding in the dark
Italian/ Australian, US wall mounted size available as well.
5
ISO9001：2000
Output
Dimensions (mm)
DMX512 Signal
75x120x29.1
Installation
Wiring diagram
110V-230VAC
N
L
Power Supply
12-24VDC
SR-2202T2(US)
GND
Vin
D-
D+
GND
Operation
4 zones
Short press on/off
Long press dim up
long press again dim down
Power Supply
110V-230VAC
12-36VDC
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
SR-2102B
DMX512 Decoder
After connect well with DMX decoders, please set the DMX
decoders address as below:
DMX decoder's address 001 is controlled by Zone 1
DMX decoder's address 005 is controlled by Zone 2
DMX decoder's address 009 is controlled by Zone 3
DMX decoder's address 013 is controlled by Zone 4
Advertisement
Table of Contents
Related Manuals for Sunricher SR-2202T2 US
Summary of Contents for Sunricher SR-2202T2 US
- Page 1 Wall mounted single color DMX512 Master Installation SR-2202T2(US) 4 zone Touch sensitive Glass interface Back lighting for finding in the dark Italian/ Australian, US wall mounted size available as well. Wiring diagram 110V-230VAC Power Supply 110V-230VAC 12-36VDC Power Supply 12-24VDC ISO9001：2000 SR-2102B SR-2202T2(US)
- Page 2 Safety & Warnings 1) The product shall be installed and serviced by a qualified person. 2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure. 3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating. 4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
