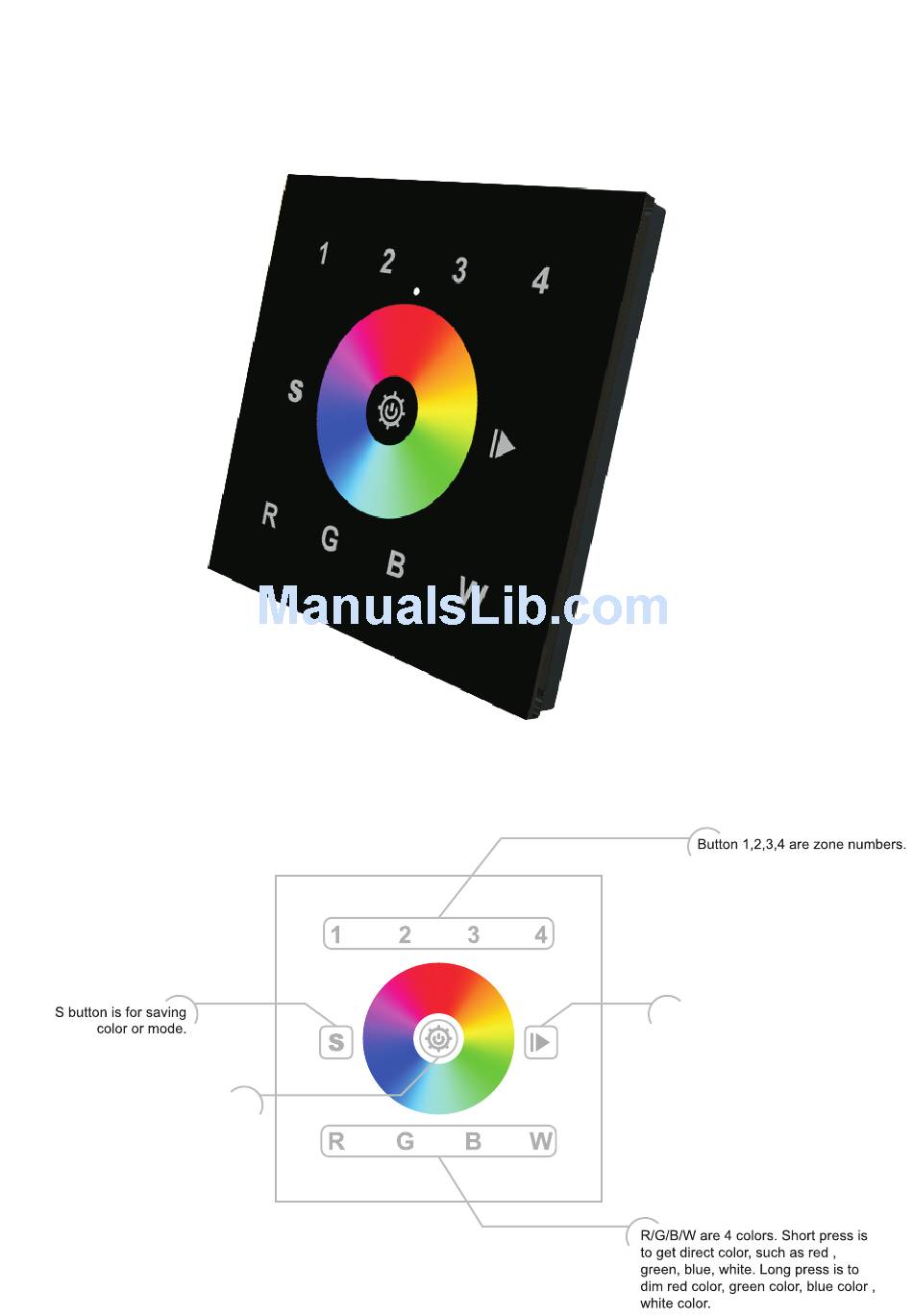

1.Button introduction
short press: switch on/off of lighting
long press:press zone button ( 1 or
2 or 3 or 4), then do long press on
"ON/OFF" button , which is to dim
brightness of any zone

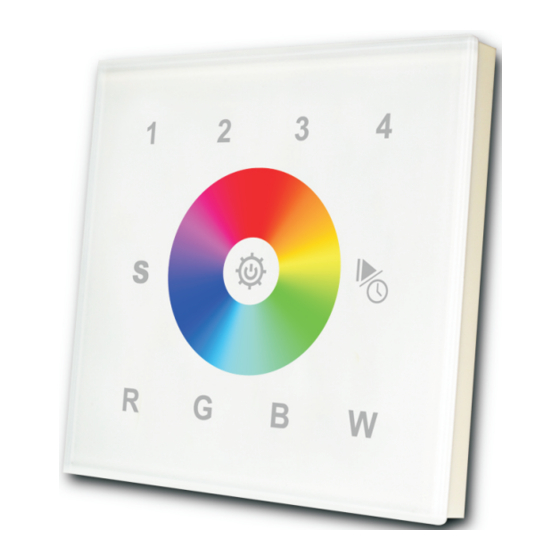

SR-2812 User Manual
short press: starting mode or pause
mode, there are 10 bulid-in modes
long press: press zone button ( 1 or 2
or 3 or 4), then do long press on button
which is to adjust speed.
Advertisement
Table of Contents
Related Manuals for Sunricher SR-2812
Summary of Contents for Sunricher SR-2812
- Page 1 SR-2812 User Manual 1.Button introduction short press: starting mode or pause mode, there are 10 bulid-in modes long press: press zone button ( 1 or 2 or 3 or 4), then do long press on button which is to adjust speed.
- Page 2 2.Wiring Please do connection as below picture SR-2812 Back 3.Operation a.how to operate zone button Each zone will get 4 addresses. Such as button one is address from 1-4, then button 2 is 5-8. Button 3 is 9-12, button 4 is 13- 16.There are total 16 address.
