Summary of Contents for Crystal Image Technologies RM-K24

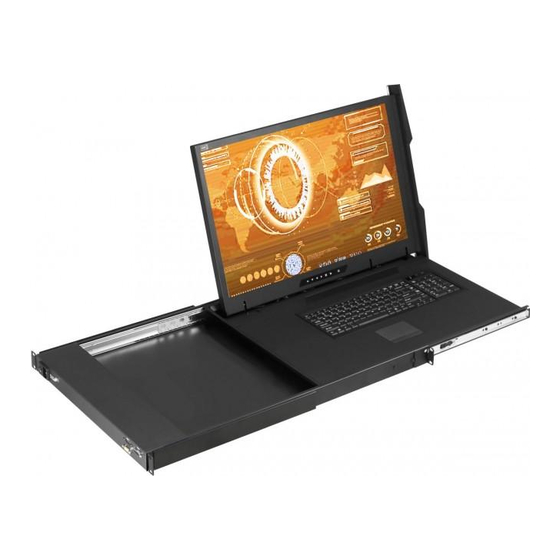

- Page 1 KVM switch and rackmount screen technology User Manual 1U 23″ 4K LCD Console Drawer RM-K24 3840 x 2160 native resolution UM-CV-751-K123-Q318V2 www.rackmountsales.com...
- Page 2 Legal Information First English printing, January 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents RM-K24 < Part. 1 > Package Content Structure Diagram & Dimension P.3 - 4 Installation Connection Specifi cations / OSD < Part. 2 > Product Specifi cations P.6 - 7 Keyboard / Mouse Specifi cations P.8 - 10 On-screen Display Operation ( OSD ) P.11 - 13... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part. 1 > Rm-K24
< Part 1 > RM-K24 < 1.1 > Package Content - EKC-2 6ft USB keyboard mouse cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 Weight 441.6 x 690 x 44 mm 595 x 910 x 140 mm 15.3 kg 19.5 kg RM-K24 17.4 x 27.2 x 1.73" 23.4 x 35.8 x 5.5” 33.7 lb 42.9 lb The weight is only for the single console models. It varies with accessories & options such as SDI, HDMI &...
-
Page 7: Installation
RM-K24 < 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. - Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. Option - Right Side Open ■ at the end of the model no. Flip up LCD from the side sample : Panel...
-
Page 9: Connection
RM-K24 < 1.4 > Connection to DP Server LCD Console Drawer Power KB / MS EKC-2 USB attached 6ft KB mouse cable DP cable DP server < 1.4 > Connection to external KVM LCD Console Drawer Power KB / MS... -
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Native Resolution 3840 x 2160 Panel Panel Size ( diagonal ) 23.8-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 1.07 Billion, 10-bit Viewing Angle ( L/R/U/D ) 89/89/89/89 Response Time ( ms ) Dot pitch ( mm ) - Page 11 RM-K24 Applicable Display Port Input PC Signal 3840 x 2160 x 60Hz Format 1920 x 1080 x 60Hz 1600 x 1200 x 60Hz 1360 x 768 x 60Hz 1280 x 1024 x 60 / 75Hz 1280 x 768 x 60Hz...
-
Page 12: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations tb keyboard integrated with trackball keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 13 < 2.2 > MAC Keyboard / Mouse Options K123 MAC keyboard integrated with touchpad MAC keyboard integrated with trackball F8 F8 F8 F8 Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion...
- Page 14 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 15: On-Screen Display Operation ( Osd )
RM-K24 < 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 16 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 17 < 2.3 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
-
Page 18: Part. 3 > Options
< Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input ’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty. - Page 19 < 3.2 > Options : HDMI - HDMI 2.0 ( HDCP 2.2 ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi...
-
Page 20: Part. 4 > Kvm Integration
< 3.3 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
