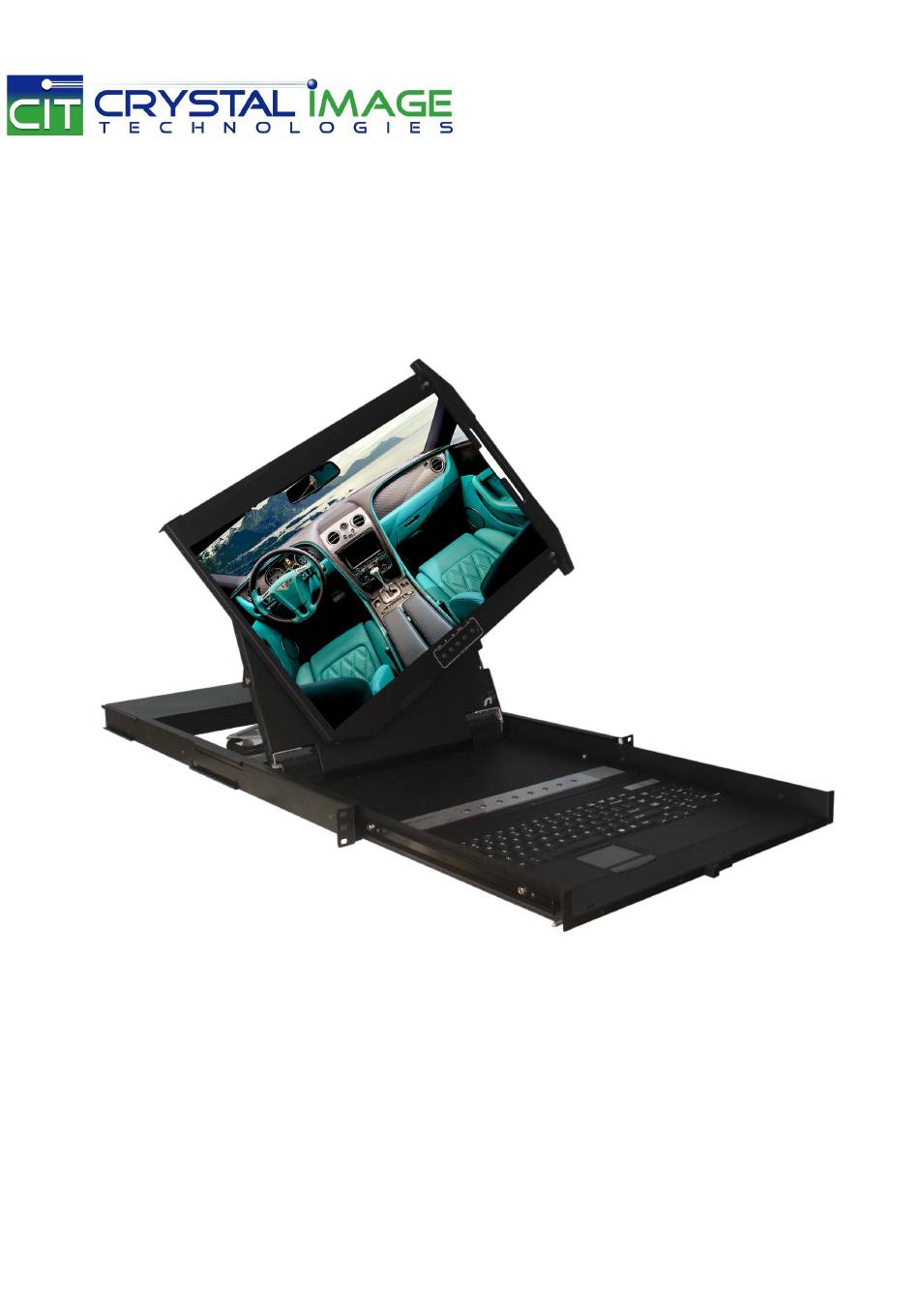

- Page 1 LCD Drawer User Manual Screen Pivot Version - RM-K24A-R - 1 -...
- Page 2 This manual, covering various aspects of the equipment such as installation, setup and cascade, will help you make full use of this LCD KVM Drawer. Please read this manual carefully and install and operate the equipment according to the manual to avoid damage to this product its accessories.
-
Page 3: Table Of Contents
Table of Contents Introduction …………………………………………………………………………-4- 1.1Overview…………………………………………………………………...…. -4- 1.2 Functions & Features…………………………………… ……………...…..-4- 1.3 Hardware Requirement……………………………………………..….……-4- 1.3.1 Host Requirement………………………………………………..… -4- 1.3.2 Cables…………………………………………………………...….… -4- 1.4 Product Specifications………………………………………………..….…..-5- 1.5 LCD Specifications………………………………………………….…..……-5- 1.6 Front View………………………………………………………….…..……. -6- 1.7 Rear View……………………………………………………………..….…...-7- Installation……………………………………………………………………...……-8- 2.1 Rack Installation……………………………………………………………… -8- 2.2 Standard Installation……………….………………………………….……... -
Page 4: Introduction

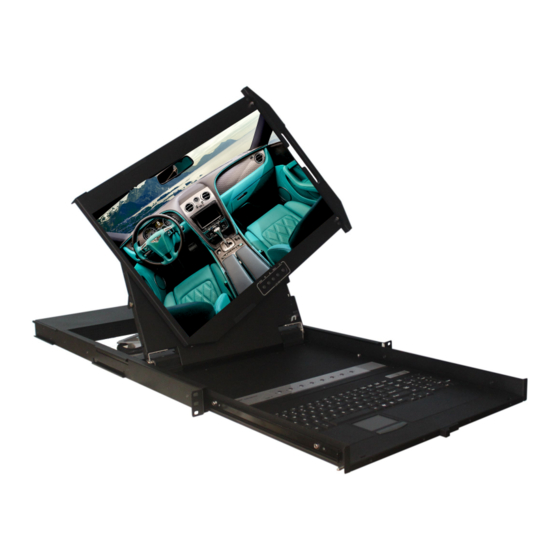

1 Introduction 1.1 Overview The RM-K24A-R rotating LCD KVM integrates keyboard, LCD display and touch pad in a drawer 1U LCD drawer and provides a convenient space-saving design for for KVM switch technology, combining a 24" LCD display with an integrated keyboard and touchpad. -
Page 5: Product Specifications
1.4 Product Specifications Model KVM-2401WPD-M5-4K Brightness 300cd/m Contrast 1000:1 Angle of visibility 178°(H),178°(V) Color display 1.07 Billion color 104 keys Keyboard touch pad mouse Mouse USB 2.0 Local Control Keyboard/Mouse HDMI female connector (HDCP2.2) Terminal HDMI2.0 Display port 1.4 Display port female connector (HDCP2.2) USB 2.0 For USB peripheral device Video resolution... -
Page 6: Front View
Front View Part Function Description Handle to adjust screen opsition LCD display Keyboard Touchpad LCD button to control Screen Display position and LCD OSD button image setting. Mounting bracket Install into rack cabinet Lock button Auto lock / release when lcd pull up and down USB2.0 HUB port - 6 -... -
Page 7: Rear View
Rear View Component Function Description AC Power port Standard IEC Type AC Inlet Power Switch Rock switch, turn on/off equipment main power. Display port Connect to server. Connect to server. HDMI port USB port Connect to server. For USB peripheral device USB 2.0 - 7 -... -
Page 8: Installation
2 Installation 2.1 Rack Installation Step one Loosen screw A on both sides to slide out and remove the two rear slide rails. Step two A ach the two rear slide rails to the rear ve cal moun ng rails of the rack cabinet usin g standard M6 cage nuts and screws. - Page 9 Step 4 4 4 4 4 4 4 4 4 4 4 4 4 f our 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 Unlock Latch (B) to the left. Slide out along with the rail. Step 4 4 4 4 4 4 4 4 4 4 4 4 4 f ive 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 Unlock Latch (B) to the left again to lift up LCD.
- Page 10 Step 4 4 4 4 4 4 4 4 4 4 4 4 4 s even 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 3. Adjust the latch (C) to stable LCD module at operating position Step 4 4 4 4 4 4 4 4 4 4 4 4 4 e ight 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 1.
-
Page 11: Standard Installation
2.2 Standard Installation Please follow the installation drawing and instructions below for standard installation: * Please turn POWER OFF on Equipment to be Connected * Please Pay Attention to Grounding of Equipment The standard installation is completed, and LCD KVM console can be powered on. Then power on connected hosts. -
Page 12: Lcd Osd Menu Setup
2.3 LCD OSD Menu Setup OSD Control buttons LCD OSD can establish and setup LCD display. Setup instructions of four buttons are as follows: Button Functions POWER Turn on or off the LCD Display Activate OSD menu, select a menu and press MENU key to confirm the MENU selection and enter the submenu. -
Page 13: Certificates
3 Certificates This product has been tested and is proved to meet requirements of Grade B electronic devices and specifications of Section 15 of FCC certification. Please observe following two conditions in operation that: (1) The equipment will not generate any harmful interruption. (2) If the equipment is interrupted, it may cause unnecessary operations.
