Connectors

10-pin header for the System Port.

16-pin header for 8 digital inputs.

16-pin header for 8 digital outputs.

10-pin header for 2 analog outputs.

2 BNC connectors for 2 analog inputs.

10-pin header for Power Measurement Port.
All connectors, except the BNCs, are standard Berg 2.54mm / 100mils raster.
For analog inputs, standard scope probes can be used.
For more details on I/O module and its use, refer to a separate standalone document titled I/O Module user's
manual.
 iSYSTEM, March 2017

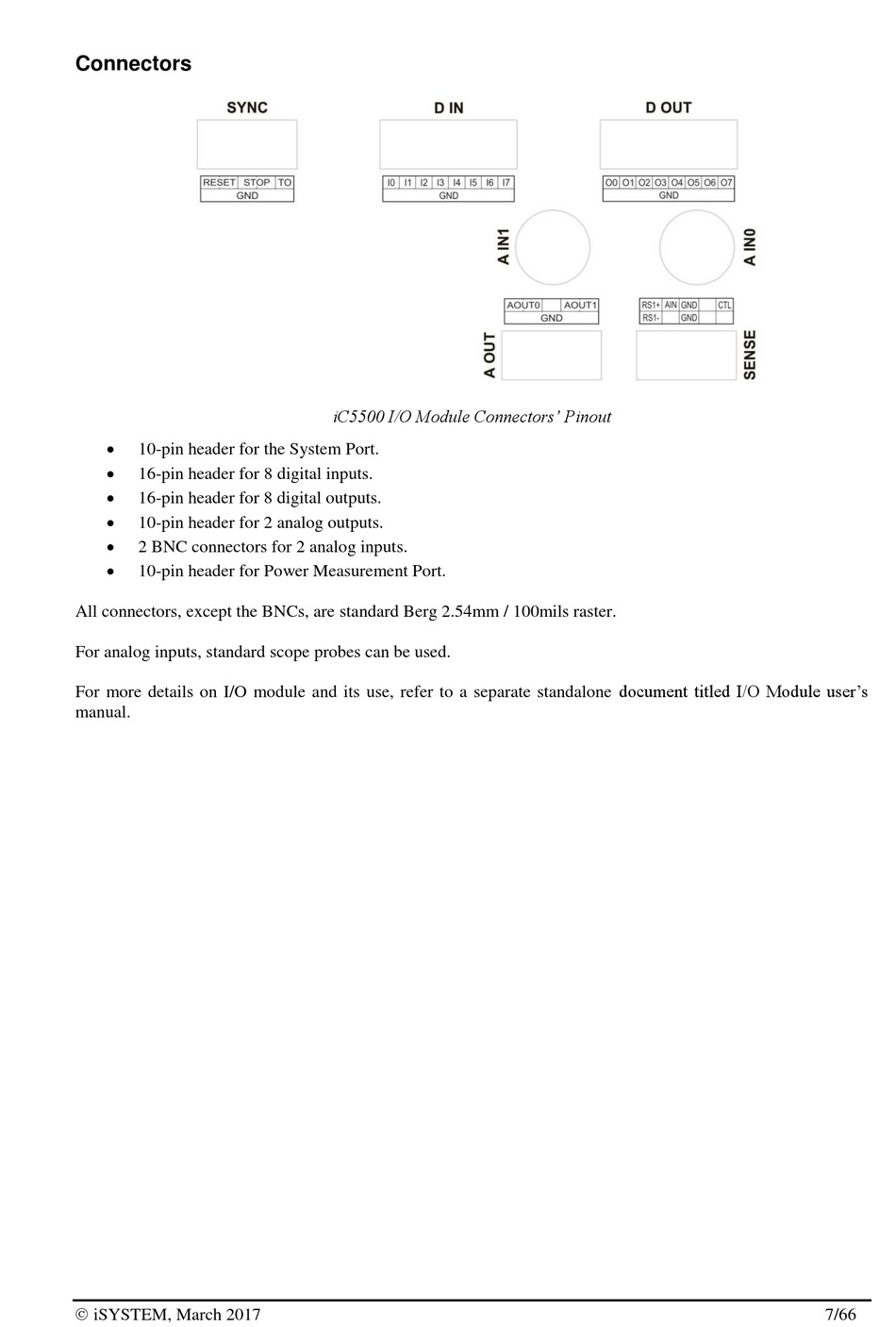

iC5500 I/O Module Connectors' Pinout
