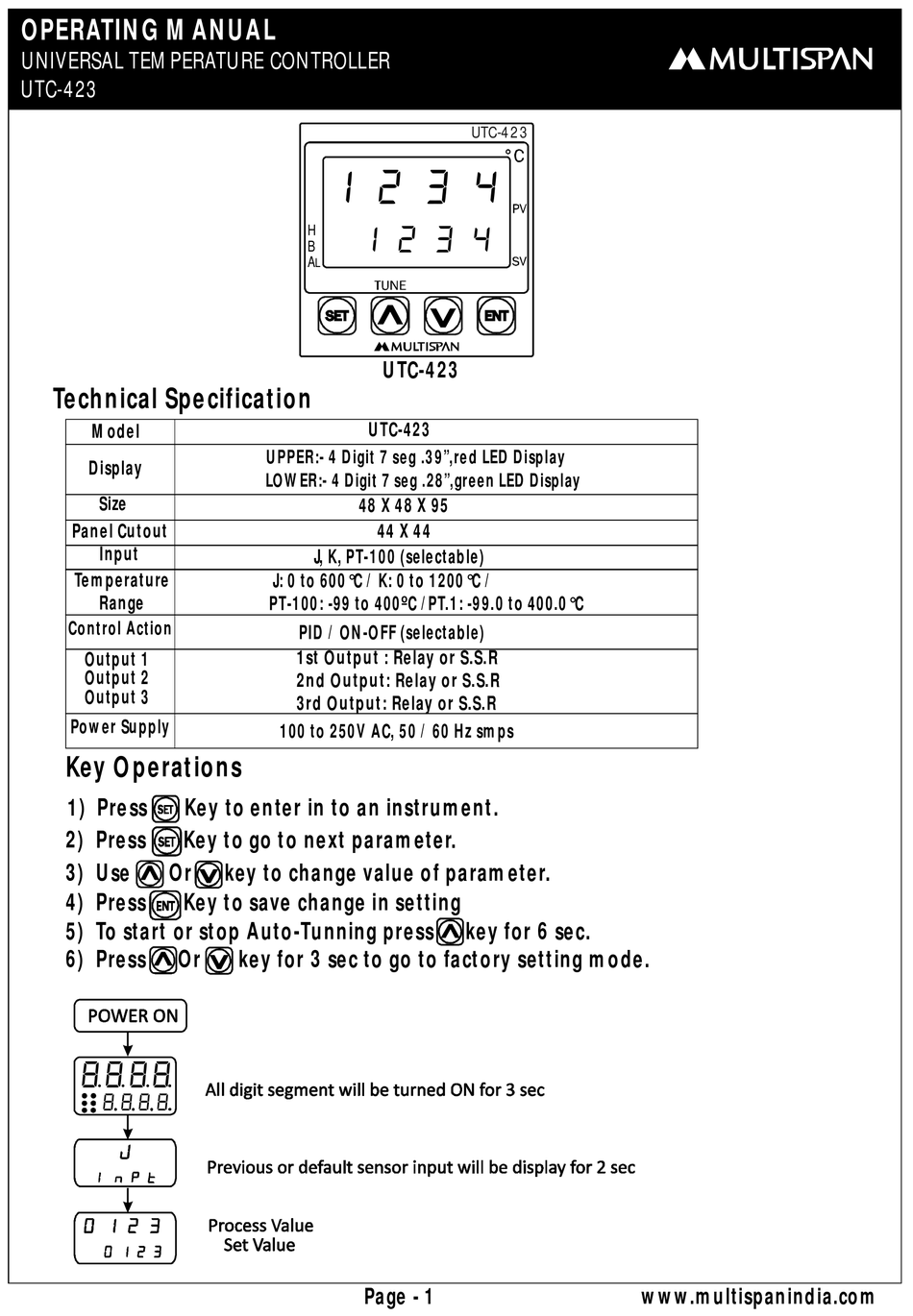

MULTISPAN UTC-423 Operating Manual

OPERATING MANUAL

UNIVERSAL TEMPERATURE CONTROLLER

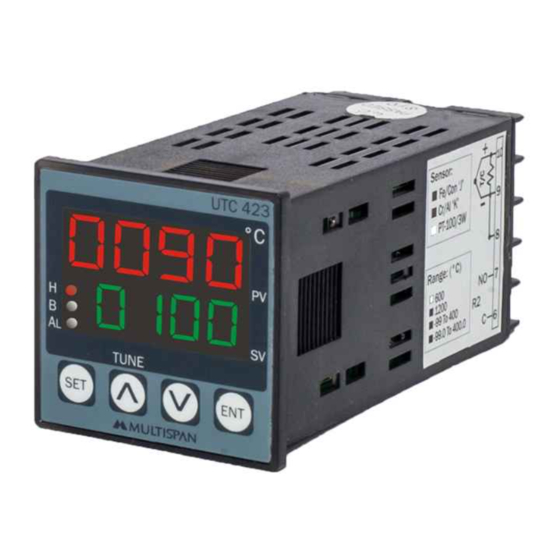

UTC-423
Technical Specification
Model
Display
Size
Panel Cutout
Input
Temperature
Range
Control Action
Output 1
Output 2
Output 3
Power Supply

Key Operations

1) Press Key to enter in to an instrument.
2) Press Key to go to next parameter.
3) Use Or
4) Press Key to save change in setting
5) To start or stop Auto-Tunning press
6) Press Or
   
   

H 
B
A
L
UTC-423
UTC-423
UPPER:- 4 Digit 7 seg .39",red LED Display
LOWER:- 4 Digit 7 seg .28",green LED Display
48 X 48 X 95
44 X 44
J, K, PT-100 (selectable)
J: 0 to 600 C / K: 0 to 1200 C /
°
PT-100: -99 to 400 C /PT.1: -99.0 to 400.0 C
PID / ON-OFF (selectable)
1st Output : Relay or S.S.R
2nd Output: Relay or S.S.R
3rd Output: Relay or S.S.R
100 to 250V AC, 50 / 60 Hz smps
key to change value of parameter.
key for 3 sec to go to factory setting mode.
Page - 1
UTC-423
°
º °
key for 6 sec.
www.multispanindia.com
