Summary of Contents for Akuvox R26C

  • Page 1           R26X Door Phone User Manual                                                                       ...
  • Page 2: Table Of Contents

                                Content      Overview  .................. 3  1 Product Description ..................... 3  2 Features  ........................ 5  3 Panel Description .................... 7  4 Unpacking  ...................... 9  5 Installation  ......................  1 0  Configuration  ................ 13  1 Web login ......................  1 3  1.1 Obtaining IP address ................  1 3  1.2 Login the web ...
  • Page 3: Overview

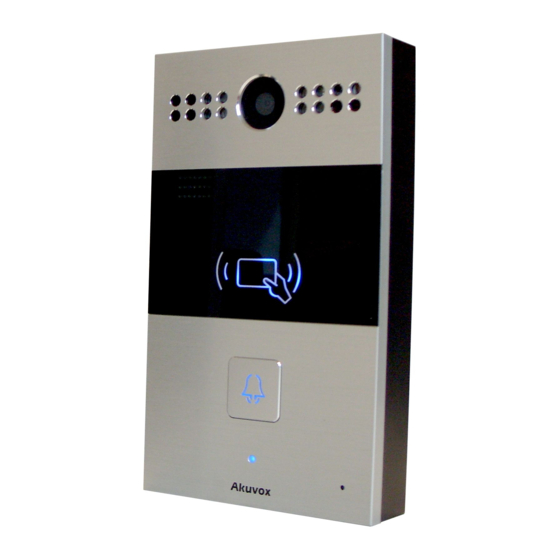

                            R26P  R26C    Akuvox R26X is a SIP‐compliant handfree video outdoor phone. It can be connected  with your Akuvox IP Phone for remote unlock control and monitor. You can operate  the indoor handset to communicate with visitors via voice and video, and unlock the  door  if  you  wish.  User  can  also  use  RF  card  to  unlock  the  door(Only  R26C).  It’s  applicable in villas, office and so on.              FCC Caution:   Any Changes or modifications not expressly approved by the party responsible for ...
  • Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the  following two conditions: (1) This device may not cause harmful interference, and (2)  this device must accept any interference received, including   interference that may  cause undesired operation.    Note: This equipment has been tested and found to comply with the limits for a Class  B digital device, pursuant to   part 15 of the FCC Rules. These limits are designed to  provide reasonable protection against harmful interference in   a residential  installation. This equipment generates, uses and can radiate radio frequency energy  and, if not installed   and used in accordance with the instructions, may cause  harmful interference to radio communications. However,   there is no guarantee that  interference will not occur in a particular installation. If this equipment does cause  harmful   interference to radio or television reception, which can be determined by  turning the equipment off and on, the user is   encouraged to try to correct the  interference by one or more of the following measures:      —Reorient or relocate the receiving antenna.      —Increase the separation between the equipment and receiver.      —Connect the equipment into an outlet on a circuit different from that to which the  receiver is connected.      —Consult the dealer or an experienced radio/TV technician for help.                ...
  • Page 5: 2 Features

    2 Features   Highlight    Vandal resistant body, with a flush button   Wild‐angle camera:90°   POE(IEEE802.3af, Power‐over‐Ethernet)   Two‐way audio communication over IP network with Echo cancel feature   Complies with SIP Standard for easy integration in each SIP PBXes         Physical&Power   Body material: all‐aluminum   Camera: 3M pixels, automatic lighting   Button: 1 call button   Infrared Sensor   RF Card Reader:13.56MHz Supported(Optional)   Output Relay: 2 output relays for door opener   802.3af Power‐Over‐Ethernet   12V DC connector(if not using POE)   Power consumption: less than 12w   Water proof&Dust proof: IP65   Installation: Wall‐mounted  ...
  • Page 6  Speech Quality: 7kHz Audio     Echo Cancellation     Voice Activation Detection    Comfort Noise Generator      Video   Resolution: up to 1080p   Maximum image transfer rate:1080p‐30pfs   High intensity white LEDs for picture lighting during dark hours with internal light  sensor   Compatible with 3 .Party.Video components,e.g.NVRs.       Door Entry Feature   Relay control individually by DTMF tones   Camera permanently operational   White Balance: Auto   Auto‐night mode with LED illumination   Minimum illumination: 0.1LUX     ...
  • Page 7: 3 Panel Description

    3 Panel Description      Infrared LED  Photosensitive sensor  Camera Infrared sensor  Speaker RF card reader  Call button  Status LED  Mic      R26C                   ...
  • Page 8   Infrared LED  Photosensitive sensor Camera  Infrared sensor  Speaker  Call button  Status LED  Mic    R26P                  ...
  • Page 9: 4 Unpacking

    4 Unpacking    Name  Quantity  R26C/P  1  Back cover  1  Wall bracket  1  Cable buckle  1  M4X20 screw  2  ST4x20 screw  4  Screw fixing seat  4  M3X5 screw  4  M3X10 screw  1                                 ...
  • Page 10: 5 Installation

    5 Installation      With 86 embedded box:    Use  2  M4X20  Use  the  pen  to  screws  to  fix  the  mark  the  hole  wall bracket and      location  on  the  Embedded box.  wall bracket                                       ...
  • Page 11   Without 86 embedded box, you can follow the below step:      Use  6mm  hand  drill  to  Mark  the  red  make  the  red  hole  you  hole  of  the  marked  before  ,and  dig  a  bracket  in  the  5cm depth square hole  wall  via  using  pen                ...
  • Page 12   Back cover installation:    For  convenient  Take down the back  wiring, hang R26X in  cover  ,cable  buckle  the bracket via using  and      sealing ring  rope                                                              Make ...
  • Page 13: Configuration

    Configuration      1 Web login  1.1 Obtaining IP address   The  Akuvox  R26X  uses  Static  IP  by  default,  and  the  default  IP  address  is  192.168.1.100.    If the IP address is unknown, after power on, when you see the LED light turns Blue,  press the call button about 5s, the phone will announce its IP.      1.2 Login the web  Open a Web Browser, enter the corresponding IP address. Then, type the default user  name and password to log in. The default User Name and Password are as below:  User name: admin    Password: admin            ...
  • Page 14                              ...
  • Page 15: 2 Status-Basic

    2 Status‐Basic  Status, including product information, network information and Account information,  can be viewed from Status ‐> Basic.      Sections  Description  Product Information  To  display  the  device’s  information  such  as  Model  name,  MAC address (IP device’s physical address), Firmware version  and Hardware firmware.  Network Information  To  display  the  device’s  Networking  status(LAN  Port),such  as  Port Type(which could be DHCP/Static/PPPoE), Link Status, IP  Address,  Subnet  Mask,  Gateway,  Primary  DNS  server,  Secondary  DNS  server,  Primary  NTP  server  and  Secondary  NTP ...
  • Page 16: 3 Intercom-Basic

    3 Intercom‐Basic      Go to the path: Intercom‐Basic      Sections  Description   Basic  Select  Account:  R26  supports  2  accounts.  You  can  choose  one  account  or  Auto  mode  for  the  following  Intercom basic settings.   No  Answer  Call:R26  will  call  to  the  No  answer  call  number in order when the ringtone is time out without  Disable by default.
  • Page 17: 4 Intercom-Led Setting

    is over the Dial in Time without answer. The call will be  hang up.   Dial out Time: When R26 calls to the other party, if the  ringtone  is  over  the  Dial  out  Time  without  answer.  R26  will continue calls to no answer call number in order.  Push to Hang up  To enable or disable the Push to Hang up function            4 Intercom‐LED Setting  To setup the LED lighting mode.      Sections  Description  State  There  is  five  states:  Normal,Offline,Calling,Talking  and  Receiving.  Color Off  The default status is OFF.  Color On  It can support three color: Red, Green, Blue.  Blink Mode ...
  • Page 18: 5 Intercom- Relay&Input

      5 Intercom‐ Relay&Input      Sections  Description  Relay  To configure some settings about unlock   Relay Select: R26 supports 2 relays   Relay  Type:  Different  locks  use  different  relay  types,  positive  or  negative.  If  you  connect  the  Lock  in  NO  connector, select positive type. Otherwise using negative  type.   Relay Delay(sec): Allows door remain “open” for certain  period The range is from 1 to 10 seconds   DTMF  Option:  R26  supports  1digit  or  4  digits  DTMF  unlock ...
  • Page 19 to use DTMF code to remote unlock.   Type: Connect web relay and choose the type.   IP Address: Enter web relay IP address.   User  name:  it  is  an  authentication  for  connecting  web  relay   password:  it  is  an  authentication  for  connecting  web  relay    Note: Users can modify username and password in web relay  website.  Input  There  is  a  sensor  that  used  to  anti  vandal  in  R26X.  When  R26X ...
  • Page 20: 6 Intercom-Live Stream

    6 Intercom‐Live Stream        Sections  Description  Live Stream  To check the real‐time video from R26.                       ...
  • Page 21: 7 Intercom-Aec Setting

    7 Intercom‐AEC Setting      Sections  Description  AEC Level  AEC(Configurable  Acoustic  and  Line  Echo  Cancelers)  is  used  to  adjust  the  echo  effect  during  the  communication.  The  default  value  is  700.  Increase  the  level,  the  echo  control  is  better.             ...
  • Page 22: 8 Intercom-Rtsp

    8 Intercom‐RTSP      Sections  Description  RTSP Basic  To active the RTSP function, then R26 can be monitored.  RTSP Stream  To  enabled  RTSP  video  and  select  the  video  codec.  R26  supports H264,H263 video codec. H264 by default.  H.264 Video Parameters  H264:  A  video  stream  compression  standard.  Different  from  H263,  it  provides  an  approximately  identical  level  of  video  stream quality but a half bit rate. This type of compression is  sometimes called MPEG‐4 part 10.    To modify the resolution,framerate and bitrate of H264 ...
  • Page 23: 9 Intercom-Onvif

    quality video image and has a flexible configuration in video  definition and Compressed frames    To modify the resolution,framerate and bitrate of MJPEG          9 Intercom‐Onvif      Sections  Description  Basic Setting  To setup the Onvif function parameters. It is used to connect  with the corresponding Onvif tool.   Onvif  Mode:  Two  modes  ‐  Discoverable  and  Non‐discoverable.  Discoverable  by  default.  Only  Discoverable mode, then Onvif software can search R26.  User Name: To modify  the user name you need.  Admin  by default.   Password: To modify the  password you want. Admin by  default.  Note: User name and password is used for authentication.   ...
  • Page 24: 10 Intercom-Multicast

    10 Intercom‐Multicast    Sections  Description  Multicast Audio Receiving  To display and configure the Multicast setting.   Multicast  Receiver  Enable:  Enable  receiver  multicast function.   Receiver address : Setup the multicast address.  Receiver  port  :  setup  the  multicast  address  port.  Multicast Audio Sending  To setup the multicast parameters.   Multicast  Sending  Enable:  Enable  sender  multicast function   Send to Address: setup the multicast address.   Send to port: setup the multicast address port.        ...
  • Page 25: 11 Intercom-Card Setting(Optional)

    11 Intercom‐Card Setting(Optional)      Sections  Description  Import/Export Card Data  To  import  or  export  the  card  data  file.  Only  support  .xml  format.   Card Status  Normal: Choose Normal mode when reading card.   Card  Issuing:  Choose  Card  Issuing  mode  when  writing  card   Card Setting  IC Key DoorNum: R23X can support to connect 2 doors.  Choose one and add the valid card for unlock.   IC Key Name: To setup corresponding name for the card.  IC  Key  Code:  Place  the  card  in  the  R26  RF  Card  Read  area, ...
  • Page 26: 12 Account-Basic

    12 Account‐Basic      Sections  Description  SIP Account  To display and configure the specific Account settings.   Status: To display register result.   Display  Name:  Which  is  sent  to  the  other  call  party  for  display.   Register Name: Allocated by SIP server provider, used for  authentication.   User  Name:  Allocated  by  your  SIP  server  provide,  used  for authentication.   Password: Used for authorization.  SIP Server 1  To display and configure Primary SIP server settings.  ...
  • Page 27 This  is  for  redundancy,  if  registering  to  Primary  SIP  server  fails,  the  IP  phone  will  go  to  Secondary  SIP  server  for  registering.  Note: Secondary SIP server is used for redundancy, it can be  left  blank  if  there  is  not  redundancy  SIP  server  in  user’s  environment.    Outbound Proxy Server  To display and configure Outbound Proxy server settings.  An  outbound  proxy  server  is  used  to  receive  all  initiating  request ...
  • Page 28: 13 Account-Advanced

    13 Account‐Advanced       ...
  • Page 29   Sections  Description  SIP Account  To display current Account settings or to select which account  to display.  Codecs  To display and configure available/unavailable codecs list.  Codec means coder‐decoder which is used to transfer analog  signal to digital signal or vice versa.  Familiar  codecs  are  PCMU(G711U),  PCMA(G711A),  G722  (wide‐bandth codecs), G729 and so on.  Video Codec  To configure the video quality   Codec Name: The default video codec is H264.   Codec  Resolution:  It  can  support  QCIF,  CIF,  VGA,  4CIF,  720P.     Codec  Bitrate:  The  lowest  bitrate  is  128,  the  highest  bitrate is 2048. ...
  • Page 30 when there is an incoming call for designated account.   Ringtones: Choose the ringtone for each account.   Provisioning  Response  ACK:  100%  reliability  for  all  provisional messages, this means it will send ACK every  time  the  IP  phone  receives  a  provisional  SIP  message  from SIP server.   User=phone: If enabled, IP phone will send user=phone  within SIP message.   PTime:  Interval  time  between  two  consecutive  RTP  packets.   Anonymous  Call:  If  enabled,  all  outgoing  call  for  the  designated account will be anonymous number. ...
  • Page 31: 14 Network-Basic

    into outgoing SIP message for designated account.  User Agent  One  can  customize  User  Agent  field  in  the  SIP  message;  If  user  agent  is  set  to  specific  value,  user  could  see  the  information  from  PCAP.  If  user  agent  is  not  set  by  default,  user  could  see  the  company  name,  model  number  and  firmware version from PCAP ...
  • Page 32: 15 Network-Advanced

    15 Network‐Advanced      Sections  Description  Local RTP  To display and configure Local RTP settings.   Max  RTP  Port:  Determine  the  maximum  port  that  RTP  stream can use.   Starting RTP Port: Determine the minimum port that RTP  stream can use.  SNMP  To display and configure SNMP settings.   Active: To enable or disable SNMP feature.   Port: To configure SNMP server’s port.   Trusted IP: To configure allowed SNMP server address, it  could be an IP address or any valid URL domain name.  Note:  SNMP  (Simple  Network  Management  Protocols)  is  Internet‐standard  protocol  for  managing  devices  on  IP  networks. ...
  • Page 33 Note:  Please  consult  your  administrator  for  specific  VLAN  settings in your networking environment.  TR069  To display and configure TR069 settings.   Active: To enable or disable TR069 feature.   Version:  To  select  supported  TR069  version  (version  1.0  or 1.1).   ACS/CPE:  ACS  is  short  for  Auto  configuration  servers  as  server  side,  CPE  is  short  for  Customer‐premise  equipment as client side devices. ...
  • Page 34: 16 Phone-Time/Language

    16 Phone‐Time/Language        Sections  Description  NTP  To configure NTP server related settings.   Time Zone: To select local Time Zone for NTP server.   Primary  Server:  To  configure  primary  NTP  server  address.   Secondary  Server:  To  configure  secondary  NTP  server  address,  it  takes  effect  if  primary  NTP  server  is  unreachable.   Update  interval:  To  configure  interval  between  two  consecutive NTP requests. ...
  • Page 35: 17 Phone-Call Feature

    17 Phone‐Call Feature    Sections  Description   Mode  Mode: Select the desired mode.  DND  DND  (Do  Not  Disturb)  allows  IP  phones  to  ignore  any  incoming calls.   Return Code when DND: Determine what response code  should be sent back to server when there is an incoming  call if DND on.   DND  On  Code:  The  Code  used  to  turn  on  DND  on  server’s  side,  if  configured,  IP  phone  will  send  a  SIP  message to server to turn on DND on server side if you ...
  • Page 36: 18 Phone-Voice

     Active: To enable or disable Intercom feature.   Intercom Mute: If enabled, once the call established, the  callee will be muted.   Others  Return Code When Refuse: Allows user to assign specific  code as return code to SIP server when an incoming call  is rejected.   Auto  Answer  Delay:  To  configure  delay  time  before  an  incoming call is automatically answered.   Auto Answer Mode: To set video or audio mode for auto  answer by default.   Direct IP: Direct IP call without SIP proxy.          18 Phone‐Voice      Sections  Description  Mic Volume  To configure Microphone volume , from 1‐15. 8 by default.  Speaker Volume  To configure Speaker Volume,from 1‐15,8 by default.  Open Door Warning  To ...
  • Page 37: 19 Multicast

    19 Multicast        Sections  Description  Multicast Setting  To  display  and  configure  the  Multicast  setting.   Paging  Barge:  Choose  the  multicast  number ,the range is 1‐10.   Paging  priority  Active:  Enable  o  disable  the multicast.  Priority List    To setup the multicast parameters.   Listening  Address:  Enter  the  IP  address  you need to listen  ...
  • Page 38: 20 Call Log

    20 Call Log      Sections  Description  Call History  To display call history records.  Available call history types are All calls, Dialed calls, Received  calls, Missed calls, Forwarded calls.  Users can check the call history in detail. Tick the number to  delete or delete all logs. R26 supports 100 call logs.                 ...
  • Page 39: 21 Door Log

    21 Door Log      Sections  Description  Door Log  To display unlock history  Users  can  check  the  unlock  information  in  detail.  User  can  delete one or all logs. The maximum door log is 500.                         ...
  • Page 40: 22 Upgrade-Basic

    22 Upgrade‐Basic    Sections  Description  Upgrade  To  select  upgrading  zip  file  from  local  or  a  remote  server  automatically.  Note: Please make sure it’s right file format for right model.  Firmware version  To  display  firmware  version,  firmware  version  starts  with  MODEL name.  Hardware Version  To display Hardware version.  Reset to Factory Setting  To enable you to reset IP phone’s setting to factory settings.  Reboot  To reboot IP phone remotely from Web UI.               ...
  • Page 41: 23 Upgrade-Advanced

    23 Upgrade‐Advanced      Sections  Description  PNP Option  To display and configure PNP setting for Auto Provisioning.   PNP:  Plug  and  Play,  once  PNP  is  enabled,  the  phone  will  send SIP subscription message to PNP server automatically  to get Auto Provisioning server’s address.  By  default,  this  SIP  message  is  sent  to  multicast  address  224.0.1.75(PNP server address by standard).  DHCP Option  To display and configure custom DHCP option.   DHCP  option:  If  configured,  IP  Phone  will  use  designated  DHCP option to get Auto Provisioning server’s address via ...
  • Page 42 access, otherwise left blank.   Password: Configure if server needs a password to access,  otherwise left blank.   Common AES Key: Used for IP phone to decipher common  Auto Provisioning configuration file.   AES  Key  (MAC):  Used  for  IP  phone  to  decipher  MAC‐oriented  auto  provisioning  configuration  file(for  example,  file  name  could  be  0c1105888888.cfg  if  IP  phone’s MAC address is 0c1105888888).  Note:  AES  is  one  of  many  encryption,  it  should  be  configure  only configure file is ciphered with AES, otherwise left blank. ...
  • Page 43: 24 Security-Basic

    24 Security‐Basic      Sections  Description  Web Password Modify    To modify user’s password.     Current Password: The current password you used.     New Password: Input new password you intend to use.     Confirm Password: Repeat the new password.         ...
