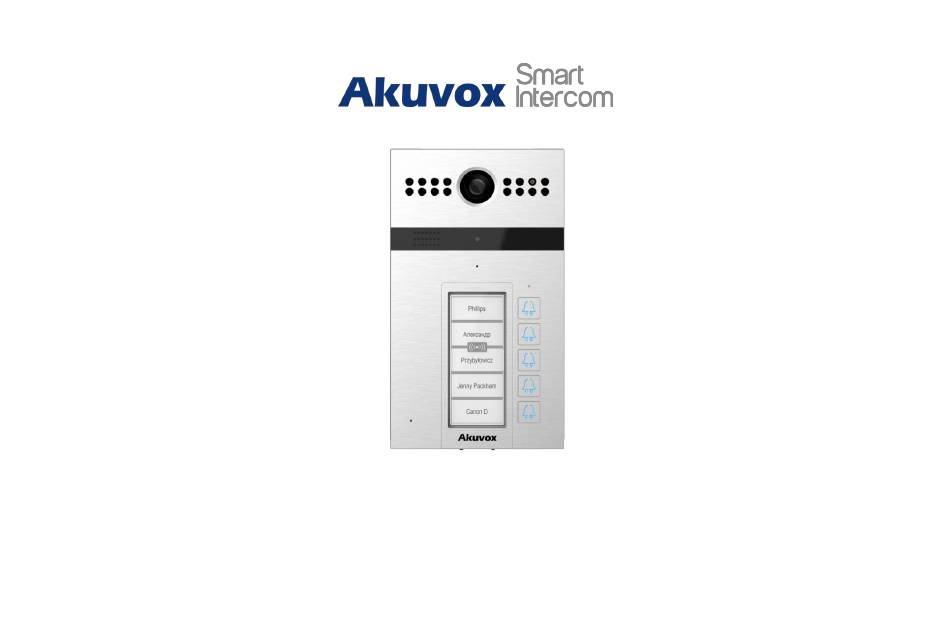

- Page 1 R26B Door Phone User Manual...
- Page 2 About this manual Thank you for choosing Akuvox’s R26B door phone. This manual is intended for end userswho need to properly configure the door phone. This manualis applicable to 26.31.4.xx version, and it provides all functions’ configurations of R26B. Please visit Akuvox forum or consult technical support for any new information or latest firmware.
-
Page 3: Table Of Contents
Content 1. Product Overview.......................................1 1.1. Product Description....................................1 1.2. Connector Introduction....................................1 1.3. LED Status Information.....................................2 2. Daily Use..........................................3 2.1. Making a Call......................................3 2.2. Receiving a Call......................................3 2.3. Unlock.......................................... 4 2.3.1. Unlock by RFID Cards..................................4 2.3.2. Unlock by DTMF Codes................................. 4... -
Page 4: Product Overview

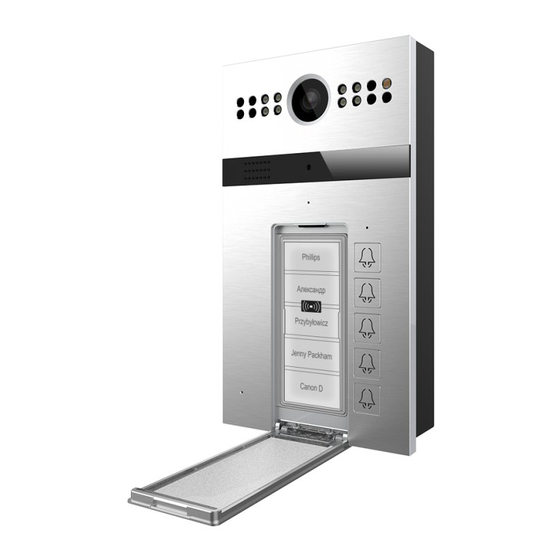

1.1. Product Description Akuvox R26B is a SIP-compliant, hands-free, five buttons door phone. It can be connected with Akuvox indoor monitors for remote unlock control and monitor. Users can operate the indoor phone to communicate with visitors via voice and video. Users can also use RFID cards to unlock the door It’s applicable in villas, office and so... -
Page 5: Led Status Information
R26B User Manual DOOR A/B: Trigger signal input terminal. Relay A/B (NO/NC/COM): Relay control terminal. Note: The general door phone interface diagram is only for reference. 1.3. LED Status Information LED Status Description Figure 1.2-2 General interface Blue Always on... -
Page 6: Daily Use
IP address and if LED turns green, it means the call has been answered. 2.2. Receiving a Call User can use IP phone or indoor monitor to call R26B and R26Bwill answer it automatically by default. If user disable auto answer, pressing button to answer incoming call. -
Page 7: Unlock
2.3.1. Unlock by RFID Cards Place the predefined user cards in RFID card reader to unlock. Under normal conditions, R26B will announce “The door is now opened.” 13.56 MHz RF card is supported on R26B. 2.3.2. Unlock by DTMF Codes Users can press the predefined DTMF code from an answer unit to remotely unlock the door during the call. - Page 8 R26B User Manual Abbreviations DNS-SRV:Service record in the Domain Name System ACS:Auto Configuration Server FTP: File Transfer Protocol Auto:Automatically GND: Ground AEC:Configurable Acoustic and Line Echo Cancelers HTTP: Hypertext Transfer Protocol ACD:Automatic Call Distribution HTTPS: Hypertext Transfer Protocol Secure Autop:Automatical Provisioning...
- Page 9 R26B User Manual SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center...
- Page 10 R26B User Manual Contact us For more information about the product, please visit us atwww.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: techsupport@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
