Akuvox R27 Series Quick Manual

Hide thumbs Also See for R27 Series:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

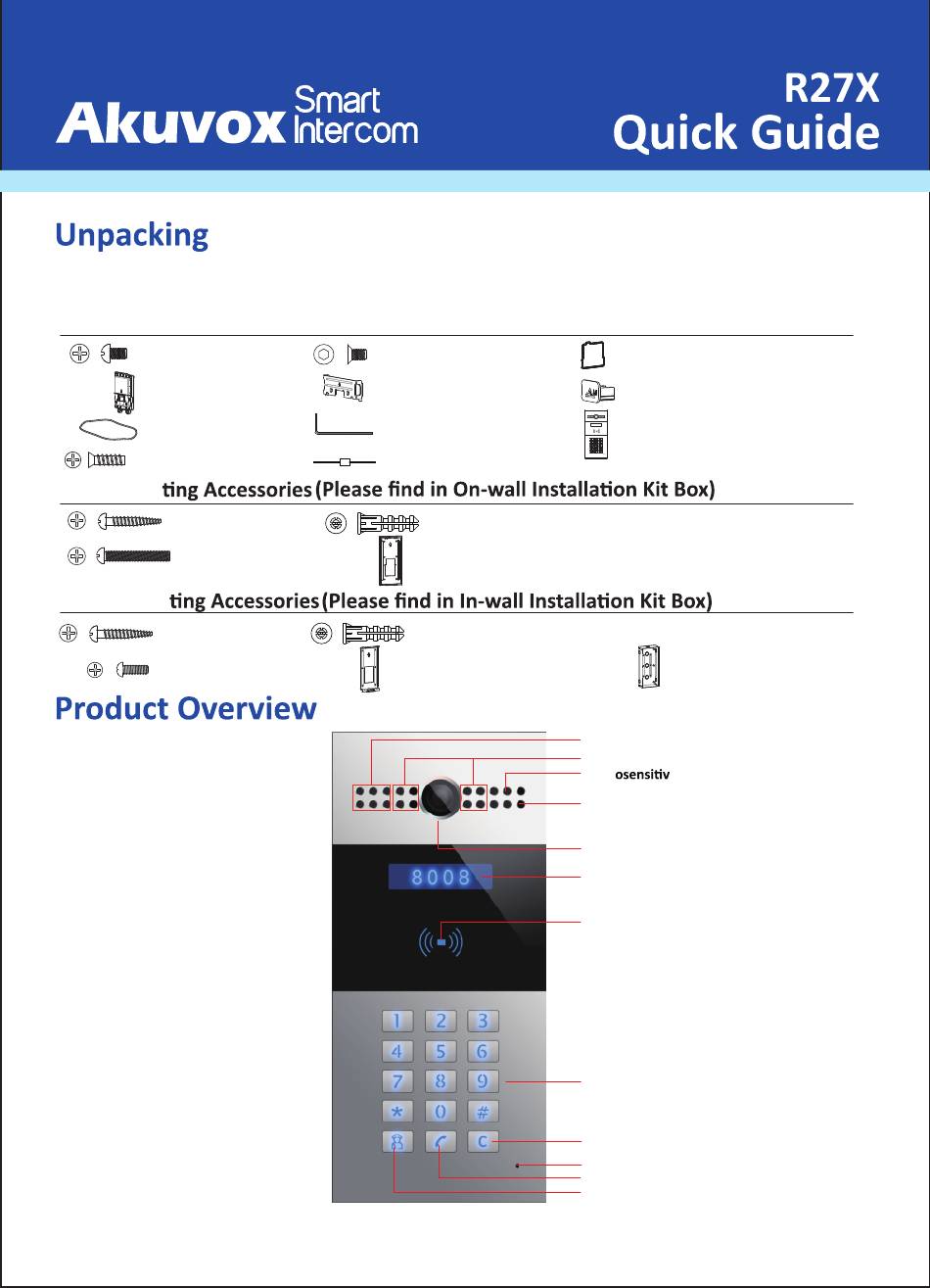

Before you begin using the device, please check the version you got and ensure
that the following items are included in the shipped box:
Mainframe
Accessories:
M3x5 screw x 4
Back cover x 1
Rope x 1
ST1.7x4 screw x 2
Wall moun
ST4x20 screw x 6
M4x30 screw x 2
Flush moun
ST4x20 screw x 6
M4x10 screw x 6
Allen screw x 2
Cable Locking Plate x 1
Allen Wrench x 1
Diode
x
3
Plastic Wall Anchor x 6
Wall-mounting box x 1
Plastic Wall Anchor x 6
Flush-mounting bracket x 1
R27A
Silicon rubber sealing ring x 1
Rubber Plug x 3(S,M,L)
R27X x 1
:
:
Flush-mounting box x 1

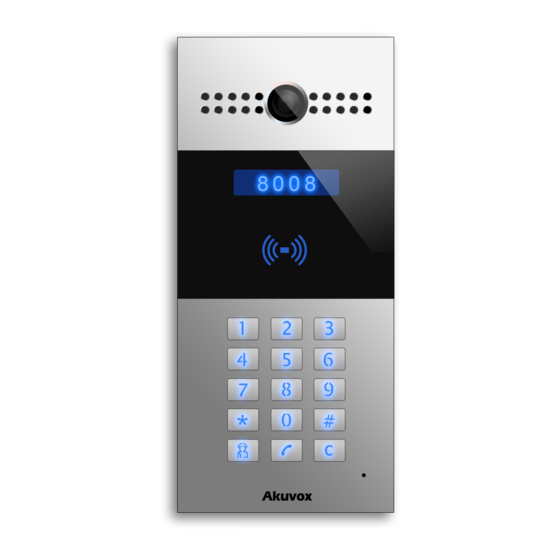

Speaker
Infrared LED
Phot
e
sensor
Infrared sensor
Camera
Screen
RF card reader
Numerical
Keypad
Clear key
Mic
Dial key
Manager
center key

Advertisement

loading
Need help?

Need help?

Do you have a question about the R27 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Akuvox R27 Series

Summary of Contents for Akuvox R27 Series

  • Page 1 Before you begin using the device, please check the version you got and ensure that the following items are included in the shipped box: Mainframe Accessories: M3x5 screw x 4 Allen screw x 2 Silicon rubber sealing ring x 1 Back cover x 1 Cable Locking Plate x 1 Rubber Plug x 3(S,M,L)

  • Page 2: Installation Environment

    Installation Environment Indoor and outdoor installation are supported. If installing the device outdoors, please don't place device under direct sunlight, it will bring a bad effect or be broken with the high temperature. If installing the device indoors, please keep device at least 2 meters away from light, and at least 3 meters away from window and door .
  • Page 3 According to the position of the wire Use a hand drill with 5 mm diameter bit to Fix the wall-mounting box with six ST4x20 on the wall, put the wall-mounting make the holes in markded positions.And screws. box closely on to the wall and mark then insert the plastic wall anchors into the six positioning holes, while the holes.

  • Page 4: Flush Mounting

    Use four M3x5 screws to fix For convenient wiring, hang Make cables go through the back cover, connecting R27X on the wall-mounting to the corresponding interfaces of the main board. the back cover. box/flush-mounting bracket Choose a suitable size rubber plug to compress with rope.

  • Page 5: Device Wiring

    Application Network Topology SIP Video Phone Network Video Recorder (third party) (third party) R27A R27A R27A R27A Device Wiring Warning When you connect a device containting a coil, such as a relay or an electromagnetic lock, it is necessary to protect the intercom against voltage peak while switching off...
  • Page 6 Notice Information Akuvox R27X firmware contains third-party open source software under the terms of the GNU General Public License(GPL). Akuvox is committed to meeting the requirements of the GNU General Public License (GPL) and will make all required source code available.
