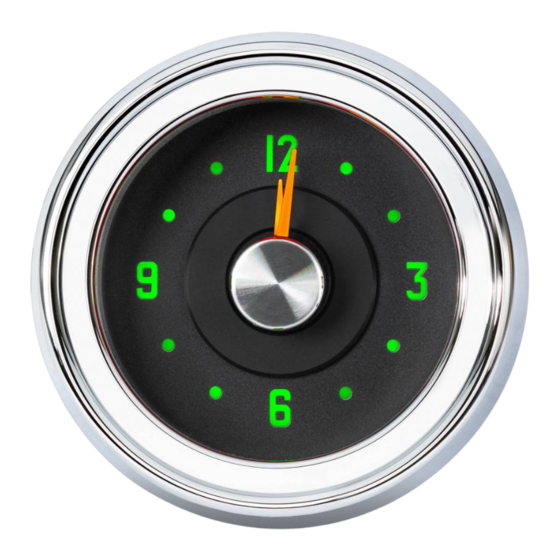

Dakota Digital Retrotech RLC-51C Installation

For 1951-'52 chevrolet car

Download this manual

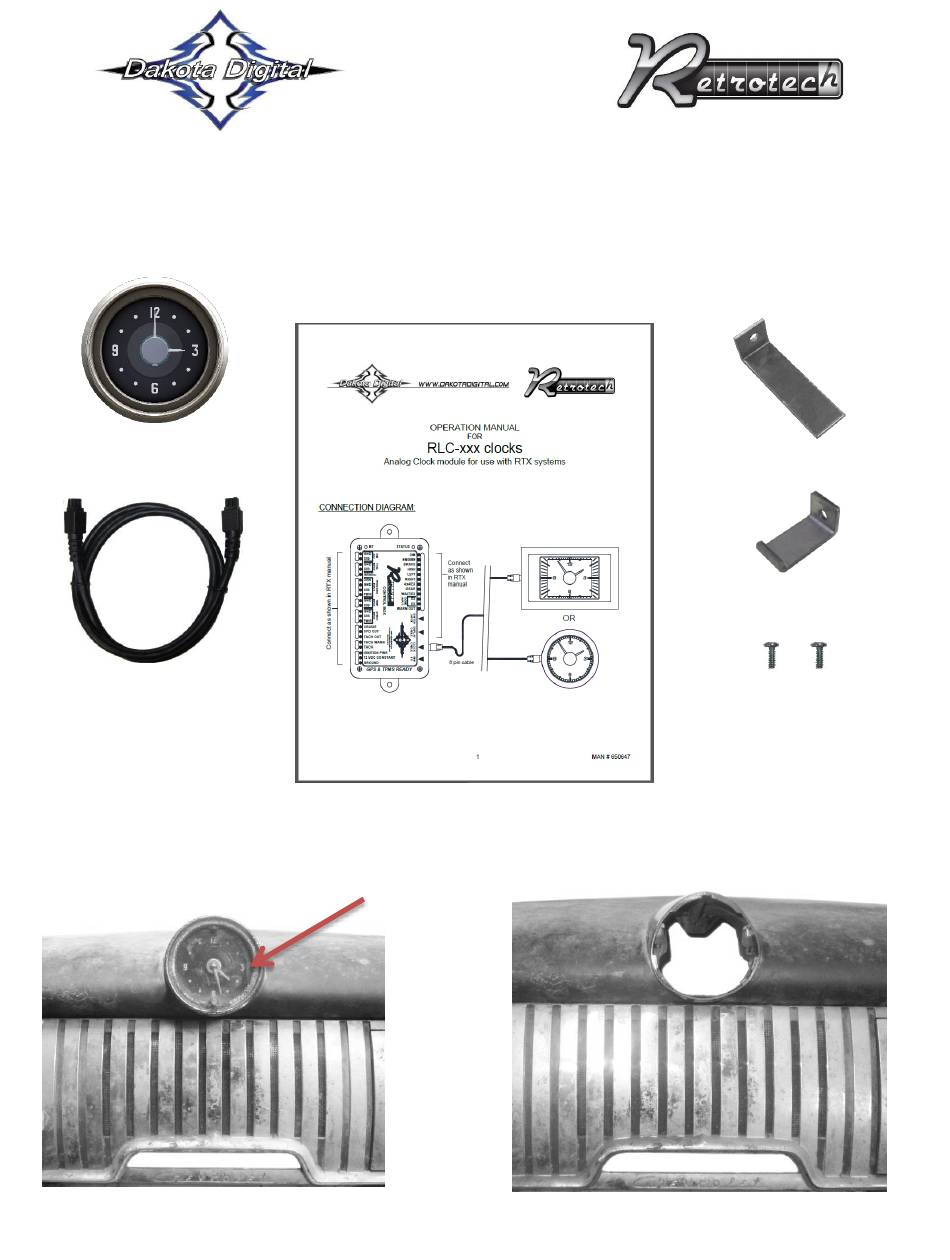

Your new RLC-51C kit includes:

RLC Clock

Harness

Installation

1. Disconnect and remove the original clock.

RLC-51C

Dakota Digital RTX Clock Installation

For 1951-'52 Chevrolet Car

Installation Manual

Long L-Bracket

Short L-Bracket

2 x 3/8" screws

Manual # 650747

Page 1 RLC-51C Dakota Digital RTX Clock Installation For 1951-‘52 Chevrolet Car Your new RLC-51C kit includes: Installation Manual RLC Clock Long L-Bracket Short L-Bracket Harness 2 x 3/8” screws Installation 1. Disconnect and remove the original clock. Manual # 650747...
Page 2 2. Underneath the dash; remove the three (3) nuts that hold the back plate and clock bezel to the dash. Retain these parts for reassembly. 3. Insert the RLC gauge into the clock bezel, making sure it is centered. Then, partially secure the gauge on the top side with the supplied long L-bracket and one of the supplied 3/8”...
Page 3 5. Connect the provided RLC harness to the back of the clock. 6. Refer to the enclosed clock operating manual for remaining connections and clock setup. WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
