QUICK START GUIDE
FEATURES
• 1/2.7" 5.0 MegaPixel CMOS Image Sensor
• Up to 20fps live view @ 5 MegaPixel (2592x1944)
• 2.8~12mm Motorized Varifocal Lens
• 3 Matrix Style Infrared LEDs with a 150' IR Range
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D-DN & 2D-DNR) Noise Reduction
• On Board Motion Detection, Privacy Masking, and Region of
Interest
• H.265, H.264 & MJPEG Compression
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• IP67 Weather Resistance / IK10
• Optional Wall (VT-TWM03/B & VT-TWMT-A1/B), Junction Box
(VT-TJB02A/B) and Pedestal (VT-TPDMT-A1/B) Mounts Available
• Available in Ivory or Charcoal Grey (VTD-TND5RME)
• 12VDC & PoE (Power over Ethernet) Operation

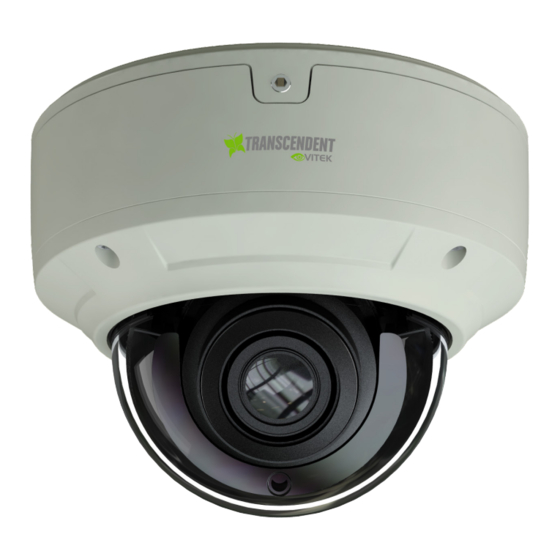

VTD-TND5RME
Transcendent Series 5MP
Indoor/Outdoor WDR IP Vandal
Dome Camera with Matrix
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
IR LED Illumination
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek TRANSCENDENT VTD-TND5RME
Summary of Contents for Vitek TRANSCENDENT VTD-TND5RME
- Page 1 VTD-TND5RME Transcendent Series 5MP Indoor/Outdoor WDR IP Vandal Dome Camera with Matrix IR LED Illumination QUICK START GUIDE FEATURES • 1/2.7” 5.0 MegaPixel CMOS Image Sensor • Up to 20fps live view @ 5 MegaPixel (2592x1944) • 2.8~12mm Motorized Varifocal Lens •...
- Page 2 Components and Accessories Rubber plug 4 tapping screws PA 4×2 Camera Quick start guide ×4 Screwdriver Drill template Plastic plug Overview Ethernet Connector 12VDC Power Connector Cable Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply.
- Page 3 Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
- Page 4 3. Route the cables and connect the power & video cables, use the rubber plug Sponge to fill the gap of the mounting base. Then secure the mounting base to the ceiling or wall with screws. Mounting Base 4. Fix the camera to the mounting base with the lock screw. 5.
- Page 5 LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2.
- Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
- Page 7 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
- Page 8 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
