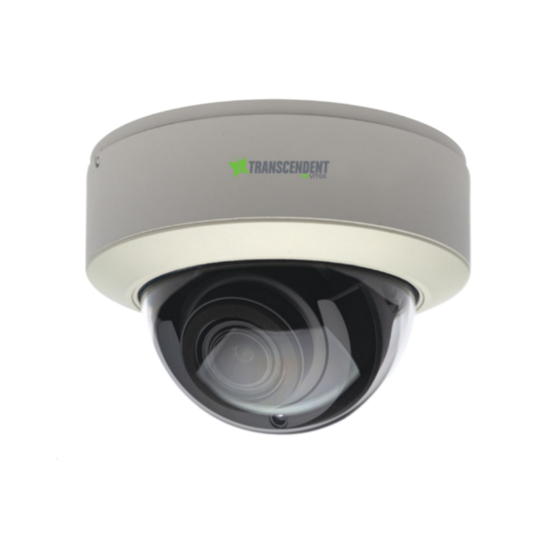

Transcendent series 5 megapixel motorized ip wdr vandal dome camera

Advertisement

Quick Links

QUICK START GUIDE
FEATURES:
• 1/2.7" 5.0 Megapixel CMOS Image Sensor
• Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP
(2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165' IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line
Crossing, Video Blur, Video Color Cast Detection
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via CMS, IE (plug-in required)/Google Chrome/Edge/Firefox/Safari,
and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Junction Box (VT-TJB010), Wall Mount (VT-TWMT-A2 [reqs. VT-TJB010]),
Pendant Mount (VT-TPDMT-A2 [reqs. VT-TJB010]), and In-Ceiling Semi Flush Mount
(VT-TFMT-L2) Available See Additional Mounting Options on Pg. 9
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation
of audio surveillance.
VTD-TND5RMEA
Transcendent Series 5 MegaPixel
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Motorized IP WDR
Vandal Dome Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTD-TND5RMEA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vitek VTD-TND5RMEA

  • Page 1 VTD-TND5RMEA Transcendent Series 5 MegaPixel Motorized IP WDR Vandal Dome Camera QUICK START GUIDE FEATURES: • 1/2.7” 5.0 Megapixel CMOS Image Sensor • Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF •...
  • Page 2: Components And Accessories

    Components and Accessories Camera Quick Start Guide 4 Tapping Screws Rubber Plug Drill Template Allen Key 4 Plastic Plugs Overview 1. Ethernet Connector 2. Audio Input (3.5mm) 3. Power Connector 4. MicroSD Card Slot 5. Reset 6. Microphone Connect the Weather Resistant Cap to an Ethernet patch cable. Connect the cameras ethernet adaptor.
  • Page 3: Installation

    Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. Install in dry conditions. Do not leave the lower dome off the camera for more than three hours during installation.
  • Page 4 3) Secure the camera to the wall or ceiling with the provided screws 5) Prior to the Three-Axis adjustment, preview the camera on a monitor and adjust as necessary to achieve the optimal viewing angle. 5) Install the lower dome back onto the camera using the provided screws.
  • Page 5: Lan Configuration

    LAN Configuration Swi t ch Network Cable Network Cable MENU IP Camera Comput er Rout er The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1.
  • Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
  • Page 7: Wan Configuration

    2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
  • Page 8 VTD-TND5RMEA Detailed Specifications 1/2.7” 5.0 Megapixel CMOS Image Sensor Image Sensor 5 MegaPixel (2880 × 1620) Image Size Resolution Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF 0.007 lux @F1.6, AGC ON;...
  • Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTD-TND5RMEA VT-TWMT-A2 VT-TPDMT-A2 VT-TJB010 Wall Mount - Pendant Mount Optional Junction reqs. VT-TJB010 - reqs. VT-TJB010 5.48” 5.54” 7.68” 5.48” 7.84” 5.47” VT-TPLMT VT-TCNMT VT-TFMT-L2 Transcendent Transcendent Universal Optional Semi Universal Pole Mount -...
  • Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression • Analytic Support Including Basic Face Detection, License Plate Recognition, and More! •...
  • Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
  • Page 12: Limited Product Warranty

    LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
