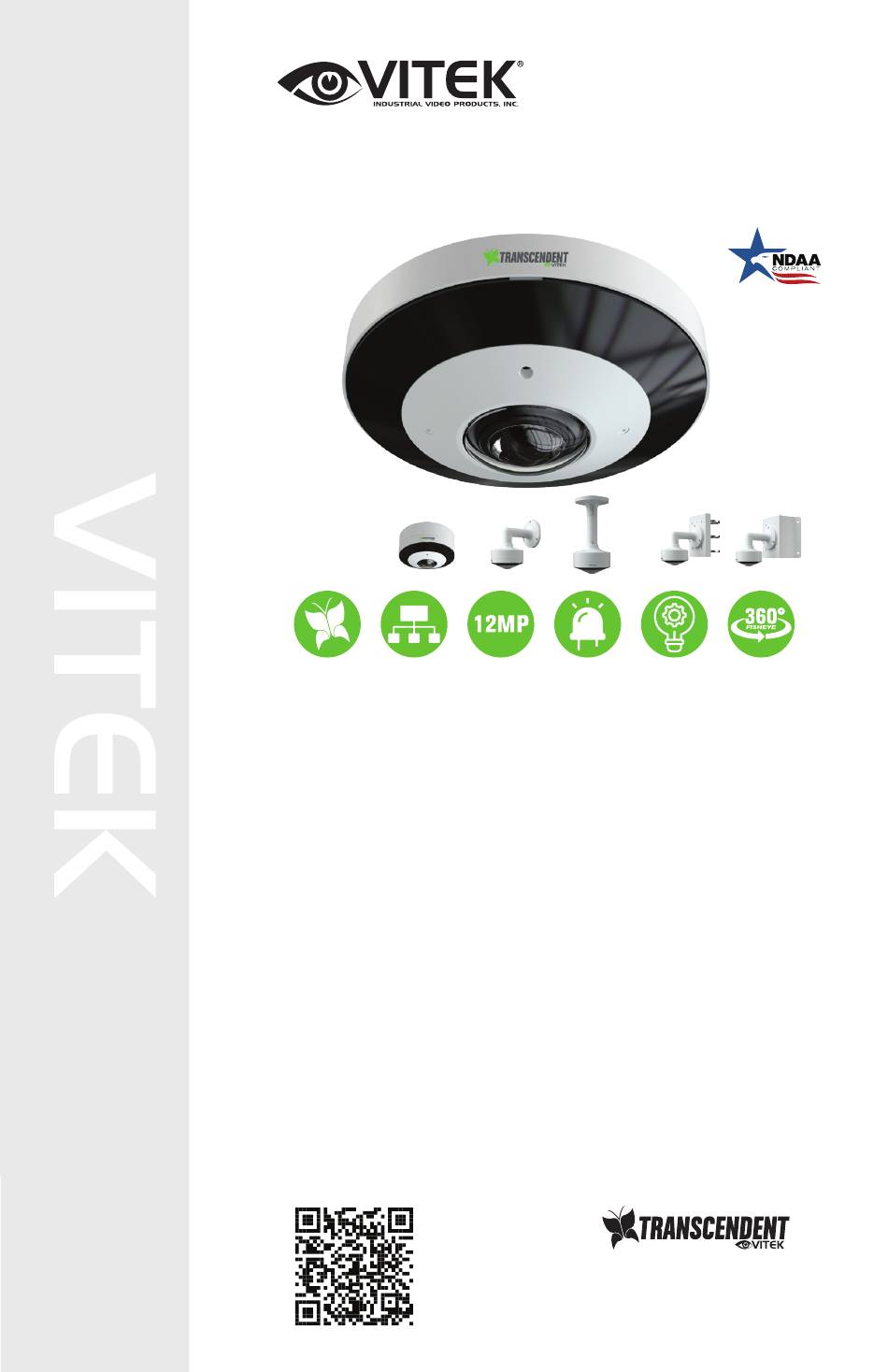

QUICK START GUIDE
*Optional Mounts
Sold Separately
TRANSCENDENT
NETWORK
FEATURES
• 1/1.7"12.0 MegaPixel CMOS Image Sensor
• Up to 30fps@3000×3000 and Below
• 1.65mm@F2.0 360° Fixed Fisheye Lens with Dewarping
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• ROI Encoding
• H.265/(+)/H.264/(+)/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• MicroSD memory card slot for Local recording supporting up to 256GB
• IP67 Ingress Protection
• 12VDC & PoE (Power over Ethernet) Operation
• 4 High Power Covert IR LEDs with 65' IR Range
• Intrusion, Target Counting, Crowd Density, Heat Map
• Integrated Audio*
• 12VDC + PoE Operation
• Optional J-Box VT-TJB-F1, Pendant Mount VT-TPDM-F, and Wall Mount
VT-TWM-F (See page 17)
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.

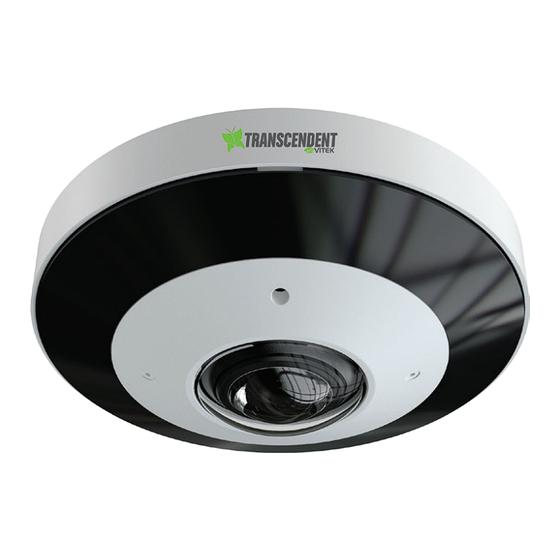

VTD-TND12FPN
12 Megapixel IP Vandal Dome
12 MEGAPIXEL
65' IR LED
ILLUMINATION
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series
360° Fisheye Camera
PROGRAMMABLE
360° FISHEYE
ANALYTICS
LENS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent VTD-TND12FPN
Summary of Contents for Vitek Transcendent VTD-TND12FPN
- Page 1 VTD-TND12FPN Transcendent Series 12 Megapixel IP Vandal Dome 360° Fisheye Camera QUICK START GUIDE *Optional Mounts Sold Separately TRANSCENDENT NETWORK 12 MEGAPIXEL 65’ IR LED PROGRAMMABLE 360° FISHEYE ILLUMINATION ANALYTICS LENS FEATURES • 1/1.7”12.0 MegaPixel CMOS Image Sensor • Up to 30fps@3000×3000 and Below •...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Plastic Wall Anchors Screws Waterproof Cap Hex Wrench Overview RJ-45 Ethernet RS-485 Audio In Power Cable MicroSD Card Slot Audio Out CVBS Output Reset Alarm I/O... - Page 3 Network Cable & Power Connections First connect the Water Resistant Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. ALM-COM ALM-OPEN ALM-INA...
-
Page 4: Sd Card Installation
SD Card Installation 1. Remove the fixed ring from the camera. 2. Loosen the screws of the cover of the SD card and then insert the SD card. Then reinstall the cover ring. -
Page 5: Installation
Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 5.12” *Optimal mounting height is 10’~15’ 1. Remove the trim ring from the gap of the 3.31”... - Page 6 Installation with J-Box 1. Remove the trim ring from the gap in the camera housing (See SD Card Installation, previous). 2. Install the Junction Box onto the Wall.
- Page 7 3. Route the cables through the cable hole (take side conduit cabling for example), and connect the cables Then fasten the camera onto the junction box with screws. 3. Install the trim ring back on the camera to complete installation.
-
Page 8: Lan Configuration
LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. Locate the IP-Tool installer at https://vitekcctv.com/sdm_downloads/ then install on the PC. - Page 9 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM. The browser will download the Active X control. After downloading the Active X control, a login window will pop up as shown below: Input the user name and password to log in.
-
Page 10: Wan Configuration
2. Open the Browser and input the default address of IP-CAM and confirm. The browser will download the Active X control. 3. After downloading the Active X control, a login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 11 A"er logging into camera you will come to the live screen. On the live screen you have four choices of view Fisheye, Panoramic, Fisheye + 3 PTZ and Panoramic + 3PTZ...
- Page 12 To configure camera, click on the Config Tab This will bring you to the programming page On this page you can program the cameras image seEngs network configuraFon, events etc. Click on any of the headers to enter that secFon, we’ll use Events as an example On the Event page you will have a choice of which event to use, by clicking on that event you will be brought to the page to program...
- Page 13 Then click on “Save” at boNom of screen Next click on “Area” Click on “Draw Area” and then le" click and drag where you want the line Click on “Stop Draw” then chose the DirecFon of entrance To have the count on the screen of people entering and exiFng click on StaFcs and enable the “OSD”...
- Page 14 Then Click “Save” Click on the “Live” tab at the top to go to the live screen and you will see the staFsFcs of how many entered and exited and a total sFll in...
- Page 15 NOTES...
- Page 16 DETAILED SPECIFICATIONS - VTD-TND12FPN Image Sensor 1/1.7” Progressive Scan CMOS Max. Resolution 4000×3000 Electronic Shutter 1/3s ~ 1/100000s Min. Illumination 0.01 lux@F2.0, AGC ON, 0 lux with IR Lens Fixed 1.65mm @F2.0, horizontal field of view : 180° (wall mounting), 360° (ceiling) True WDR 120dB S/N Ratio ≥50dB...
- Page 17 OPTIONAL MOUNTS FOR VTD-TND12FPN VT-TJB-F1 Junction Box for Transcendent VTD-TND6FPN Fisheye Dome Camera VT-TWM-F Wall Mount for Transcendent VTD-TND6FPN Fisheye Dome Camera VT-TPDM-F Pedestal Mount for Transcendent VTD-TND6FPN Fisheye Dome Camera VT-TPLMT Universal Transcendent Pole Mount Adapter - reqs. VT-TWM-F VT-TCNMT Universal Transcendent Corner Mount...
- Page 18 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs! TRANSCENDENT NVRs! A Standalone Solution with GEN. IV Advanced Analytic Support and NDAA Compliance! • Up to 12MP Recording • H.265S / H.265+ / H.265 / H.264 Video Compression •...
- Page 19 Also Consider Vitek NDAA Compliant Wireless Bridge Products to Reduce Costly Cable Installation! VT-WB1150, VT-WB2150, and VT-WB5900 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, High Speed Transmission, and Point-to-Multi- Point (P2MP) Topology VT-WB1150...
-
Page 20: Limited Product Warranty
LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
