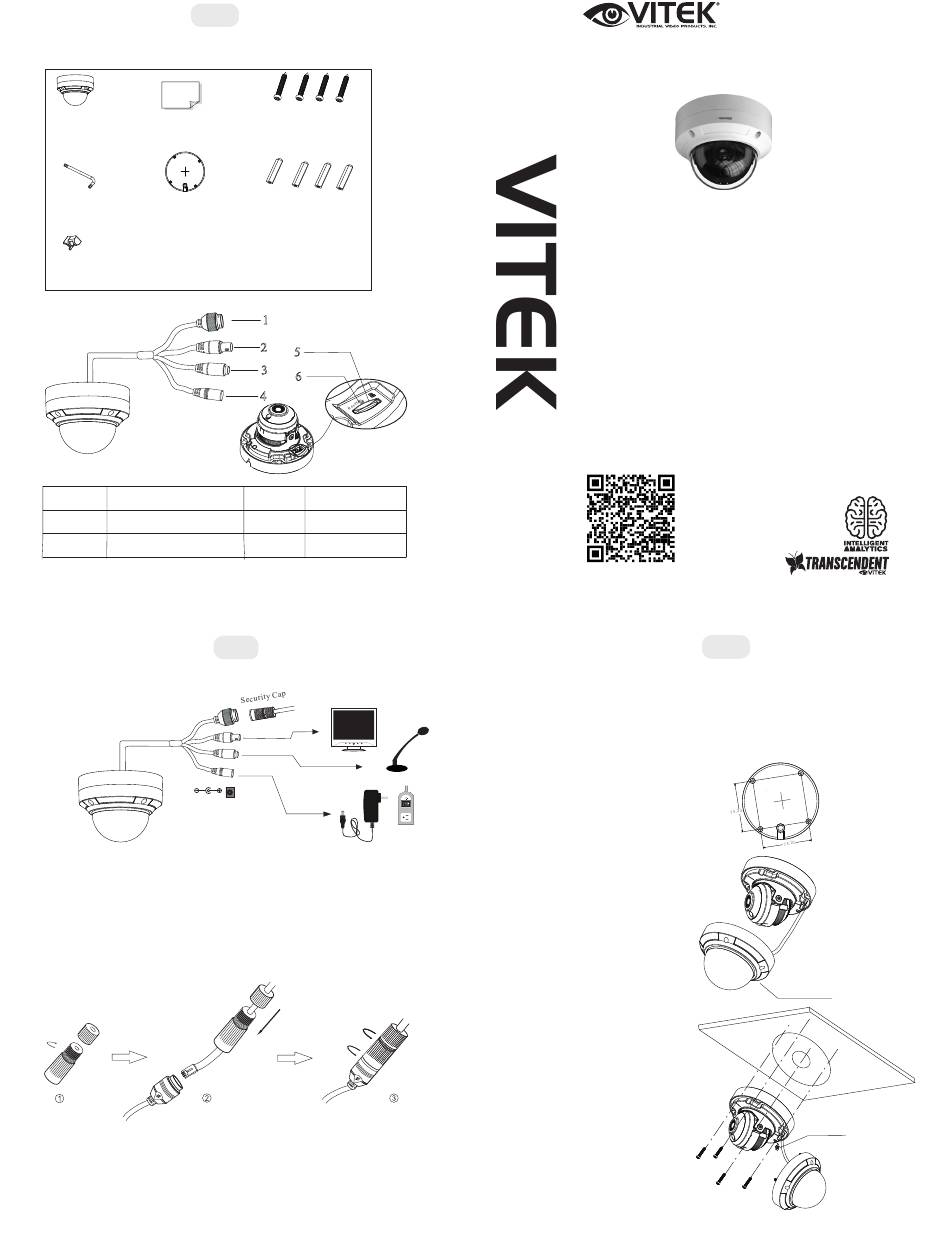

Vitek VTD-TND5RFS/-2 Quick Start Manual

1
Components and Accessories
Camera Quick start guide
Screwdriver Drill template
Rubber plug
Overview
1
Network Cable
2 CVBS Cable
3
MIC IN Cable
DC12V
* 1 I t is r ecommended to install the secur ity cap for outdoor i nstallation.
* 2 I f the P oE s witch is used to power the camer a t hat suppor ts P oE p ower
supply, D C 12V power supply is not r equir ed.
Weather Resistant Network Coupler
1. Loosen the nut from the Weather Resistant Network Coupler,
2. Run ethernet cable through coupler, then attach a RJ-45 connector.
3. Tighten the nut and coupler for a weather resistant seal.
4 tapping screws PA 4×25
×4
Plastic plug
1
2
5
3
6
4
4
Power Cable
5
SD Card Slot
6 Reset
2

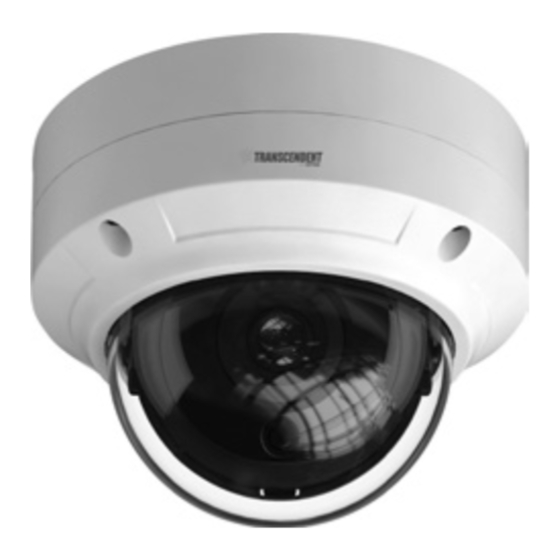

Outdoor WDR IP Dome Camera with
QUICK START GUIDE
FEATURES
• 1/2.5" 5.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 5 MegaPixel (2592×1944)
• 3.6mm or 2.8mm Fixed Iris Lens
• 16 IR LED Illumination with a 65' IR Range
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Fully Programmable Intelligent Analytics including Face Detection,
Object Removal/Museum Search, Exception, Line Crossing, Area
Intrusion, People Counting, People Intrusion, Crowd Density Monitoring
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• Micro SD Card support up to 128GB
• IP66 Weather Resistance & IK10 Impact Rating
• Optional Mounts Available: J Box (VT-TJB03A), Wall Mount (VT-TWMT3)
• 12VDC & PoE (Power over Ethernet) Operation
FOR FULL PRODUCT MANUAL
SCAN THE QR CODE BELOW
Installation
Before beginning installation, make sure that the wall or ceiling is
strong enough to withstand 3 times the weight of the camera. The
mounting steps are as follows:
1. Attach the drill template to
the place where you want to
install the camera, then drill
the screw holes and 1 cable
hole according to the drill
template.
2. Loosen the screws to open
the lower dome and then
loosen the lock screw to
remove the mounting base.
3. Route the cables and
connect the power & video
cables, use the rubber plug
to fill the gap of the mounting
base. then secure the
mounting base to the ceiling
or wall with screws.
VTD-TND5RFS/-2
Transcendent Series
5 Megapixel H.265 Indoor/
16 High Power IR LED Illumination
4 3
(mm)
Lower Dome
Rubber Plug
