QUICK START GUIDE
FEATURES:
• 1/2.7" 5.0 Megapixel CMOS Image Sensor
• Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP
(2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
• 2.8mm Fixed Iris Lens
• Matrix IR (up to 100' IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line
Crossing, Video Blur, Video Color Cast Detection
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via CMS, IE (plug-in required)/Google Chrome/Edge/Firefox/Safari,
and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance + IK10 Impact Rating
• Optional Junction Box (VT-TJB03A), Pendant Mount (VT-TPDM-1, [reqs.
VT-TJB03A]), Wall Mount (VT-TWMT-3) and In-Ceiling Semi Flush Mount
(VT-TFMT-S) Available See Additional Mounting Options on Pg. 9
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.
VTD-TND5RFEA-2
5 MegaPixel Fixed IP WDR
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads

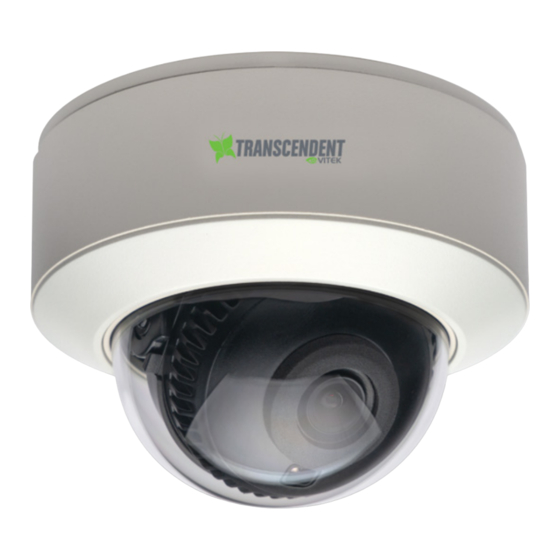

Transcendent Series
Vandal Dome Camera
Advertisement
Related Manuals for Vitek VTD-TND5RFEA-2
Summary of Contents for Vitek VTD-TND5RFEA-2
- Page 1 VTD-TND5RFEA-2 Transcendent Series 5 MegaPixel Fixed IP WDR Vandal Dome Camera QUICK START GUIDE FEATURES: • 1/2.7” 5.0 Megapixel CMOS Image Sensor • Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF •...
-
Page 2: Components And Accessories
Components and Accessories Camera Quick Start Guide 4 Tapping Screws PA 4 x 2 Rubber Plug Screwdri ver Dri l l templ ate Pl asti c pl ug Overview 1. Network Connector 2. Audio Input 3. Power Connector 4. MicroSD Card Slot 5. -
Page 3: Installation
Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler. 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 4 3. Route the cables and 3. Route the cables and 3. Route the cables and connect the power & video connect the power & video connect the power & video cables, use the rubber plug cables, use the rubber plug cables, use the rubber plug to fill the gap of the mounting to fill the gap of the mounting...
- Page 5 LAN Configuration LAN Configuration LAN Configuration Swi t ch Swi t ch Swi t ch Net wor k Cabl e Net wor k Cabl e Net wor k Cabl e Net wor k Cabl e MENU MENU Net wor k Cabl e Net wor k Cabl e IP Camera IP Camera...
- Page 6 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM .
- Page 7 2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. confirm.
- Page 8 VTD-TND5RFEA-2 Detailed Specifications 1/2.7” 5.0 Megapixel CMOS Image Sensor Image Sensor 5 MegaPixel (2880 × 1620) Image Size Resolution Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF 0.007 lux @F1.6, AGC ON;...
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTD-TND5RFEA-2 VT-TWMT-3 VT-TJB03A VT-TFMT-S Optional Wall Mount Optional Junction Box Optional Semi-Flush Mount 4.64“ 5.10” VT-TPLMT VT-TPDM-1 VT-TCNMT Transcendent Universal Optional Pendant Mount Transcendent Universal Pole Mount - reqs. - reqs. VT-TJB03A Corner Mount - reqs.
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression • Analytic Support Including Basic Face Detection, License Plate Recognition, and More! •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
