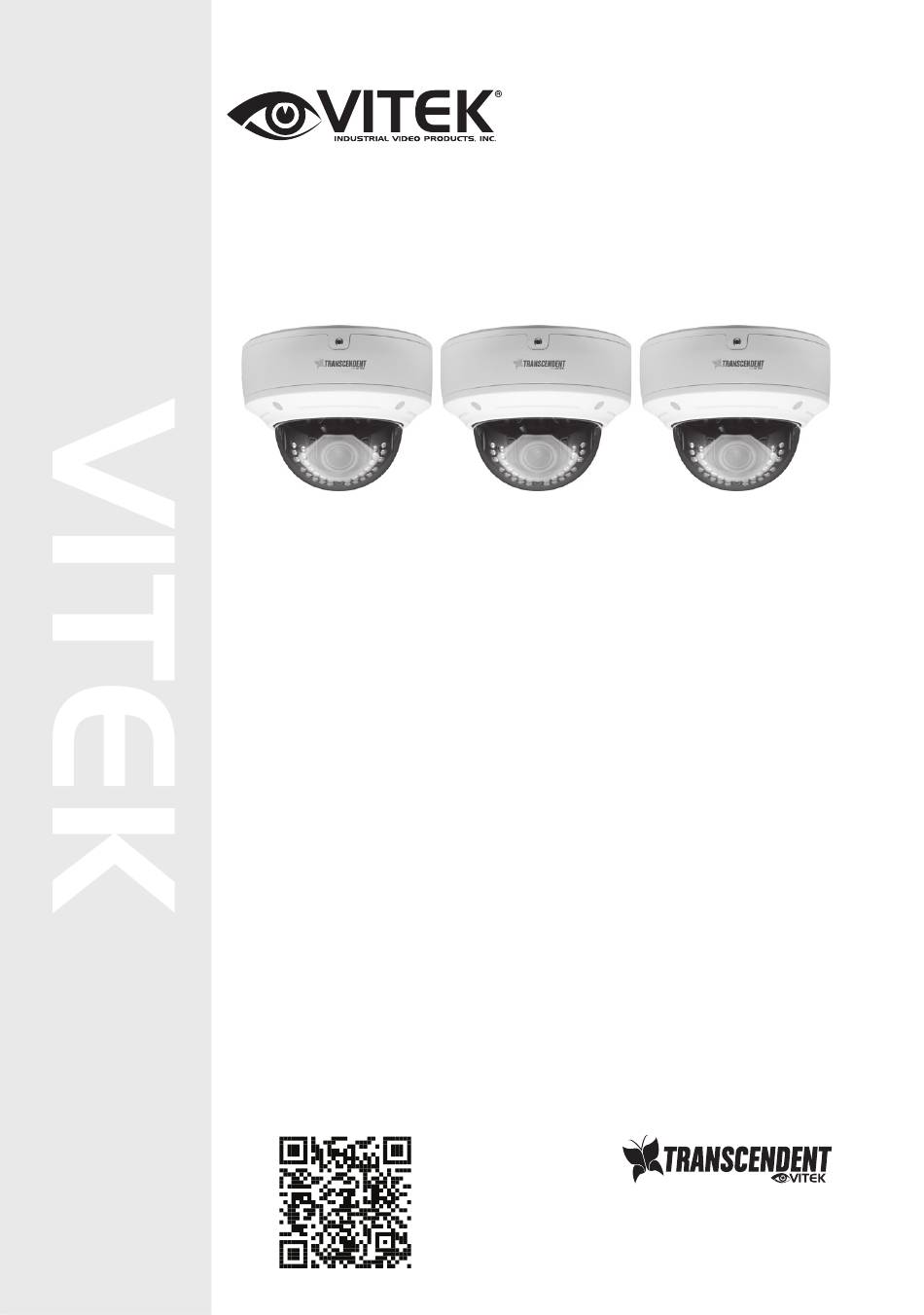

QUICK START GUIDE
FEATURES
• 1/3" Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view
• 3.3~12mm Varifocal Lens (VTD-TND30R3V2) / 3.6-10mm
Varifocal Lens (VTD-TND30R5V2) / Motorized 3.3-12mm
Varifocal Lens (VTD-TND30R4M2)
• 30 Infrared LED's with 100' IR Range
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• On Board Motion Detection
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS &
Android Apps
• Minimal Latency with up to 10 simultaneous user
connections
• MicroSD memory card slot for Local recording supporting
up to 128GB MicroSDXC cards
• ONVIF Compliant
• IP66 Weather Resistance
• Optional Wall Mount Available (VT-TWM03)
• 12VDC & PoE (Power over Ethernet) Operation

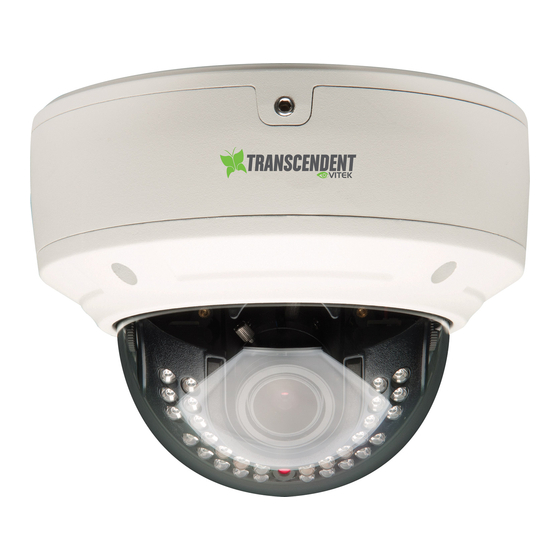

VTD-TND30R3V2
VTD-TND30R5V2
VTD-TND30R4M2
3.0, 4.0, and 5.0 Megapixel
Indoor/Outdoor WDR IP IR
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Dome Cameras
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTD-TND30R3V2
Summary of Contents for Vitek VTD-TND30R3V2
- Page 1 QUICK START GUIDE FEATURES • 1/3” Megapixel Progressive Scan CMOS image sensor • Up to 30fps live view • 3.3~12mm Varifocal Lens (VTD-TND30R3V2) / 3.6-10mm Varifocal Lens (VTD-TND30R5V2) / Motorized 3.3-12mm Varifocal Lens (VTD-TND30R4M2) • 30 Infrared LED’s with 100’ IR Range •...
- Page 2 Components and Accessories Camera Drill Template Quick Guide Rubber Gasket Screws Waterproof Cap Hex Wrench Service Port Cable Overview RJ-45 Ethernet RS-485 Power Cable Audio In Audio Out Reset CVBS Output Service Port Alarm I/O MicroSD Card Slot...
- Page 3 Network Cable & Power Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC Power Supply. ALM: COM ALM: NO ALM: IN ALM: GND...
- Page 4 Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. The mounting steps are as follows: 1. Loosen the screws to open the lower dome and then loosen the lock screw to remove Lock Screw the mounting base.
- Page 5 Tilt 0°~75° Rotation 0°~360° 6. Adjust the Focus and Zoom screw to achieve a clear Zoom image. *VTD-TND30R3V2 & Focus VTD-TND30R5V2 ONLY 7. Install the dome bubble on the camera with the screws, then carefully remove the protective film to complete the installation.
- Page 6 LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if you want to route the cables through the mounting base) according to the drill template Accessing the Camera Using the IP-Tool...
- Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control automatically. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
- Page 8 2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatical- Rubber Plug 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example.
