QUICK START GUIDE
FEATURES:
• 1/2.8" 8.0 Megapixel [4K] CMOS Image Sensor
• NDAA Compliant
• Up to 30fps live view @ 8 MegaPixel (3840x2160)
• 2.8mm Fixed Iris Lens
• Matrix IR (up to 100' IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Gen. IV Advanced Analytics: Intrusion Detection, Line Crossing, Target
Counting [All by Human / Motor Vehicle Classification], Face Detection,
Video Blur, Video Color Cast Detection, Abnormal Video
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• 1 Ch. Audio In + Built-in Mic*
• 1 Ch. Alarm In + 1 Ch. Alarm Out
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance + IK10 Impact Rating
• Optional Junction Box (VT-TJB03A), Wall Mount (VT-TWMT3), Pendant
/ Ceiling Mount (VT-TPDM-1 [reqs. VT-TJB03A]) and In-Ceiling Semi
Flush Mount (VT-TFMT-S) Available
(see pg. 9 for additional mounting options)
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey (VTD-TND8RFA4B-2)
*Please research local, state and federal laws regarding the implementation of audio surveillance.
VTD-TND8RFA4-2

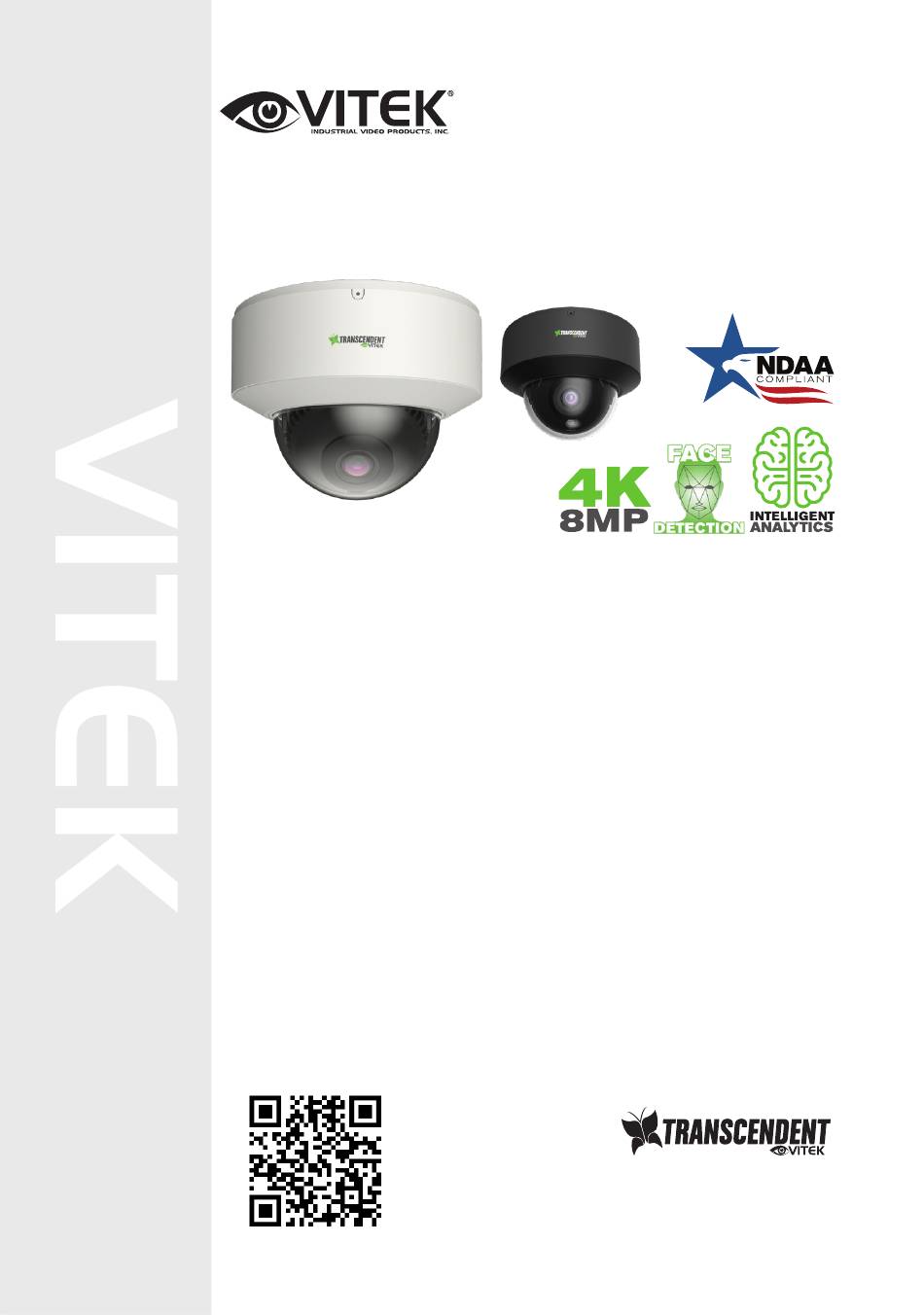

Transcendent Series 8 MegaPixel
[4K] Gen. IV Advanced A.I.
Fixed IP Vandal Dome Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
