Instruction Manual

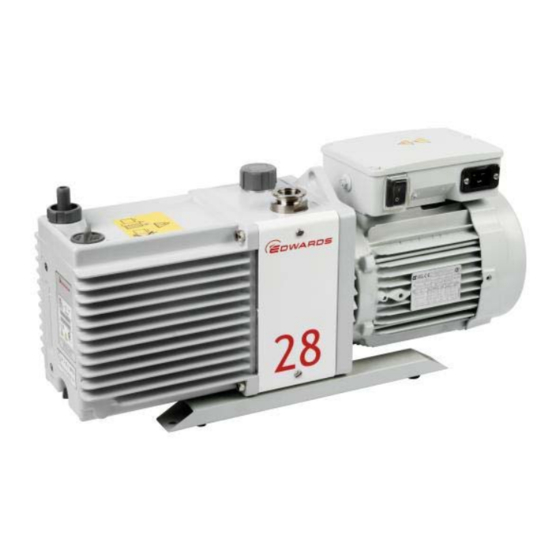

E2M28 and E2M30 Rotary Vacuum Pumps

A373-10-880

Issue R Original

Item Number

A373-15-904

A373-15-981

A373-15-903

A373-30-940

A373-16-903

A373-17-984

A373-25-984

A373-25-903

A373-41-940

A374-15-904

A374-15-981

A374-15-903

Table of Contents

Summary of Contents for Edwards A373-30-940

Page 1 E2M28, 200-240 V, 50 Hz, or 230-240 V, 60 Hz, single-phase A373-15-903 E2M28, 200-220/380-415 V, 50 Hz, or 200-230/460 V, 60 Hz, three-phase A373-30-940 E2M28, 200-240 V, 50 Hz, or 230-240 V, 60 Hz, single-phase (Amphenol) A373-16-903 E2M28, 110/200-240 V, 50 Hz, or 115-120/200-230 V, 60 Hz, single-phase...
Page 2 Declaration of Conformity Edwards, Manor Royal, Crawley, West Sussex, RH10 9LW, UK declare under our sole responsibility, as manufacturer and person within the EU authorised to assemble the technical file, that the product(s) AXXX – YY – ZZZ Pump Type...
Page 3: Table Of Contents
Unattended operation ....................22 Shut-down ........................ 22 Maintenance ..................23 Safety information ......................23 Maintenance plan .......................23 Check the oil-level .....................24 Replace the oil ......................24 © Edwards Limited 2012. All rights reserved. Page i Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 4 Installation ....................... 39 Operation ........................ 39 Maintenance ......................39 For return of equipment, complete the HS Forms at the end of this manual. Page ii © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 5 Publication title Publication number Vacuum pump and vacuum system safety P300-20-000 Vibration isolators A248-01-880 EMF3, EMF10 and EMF20 oil mist filters A462-26-880 © Edwards Limited 2012. All rights reserved. Page iii Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 7: Introduction
Introduction Scope and definitions This manual provides installation, operation and maintenance instructions for the Edwards E2M28 and E2M30 rotary vacuum pumps. You must use the pump as specified in this manual. Read this manual before you install and operate the pump. Important safety information is highlighted as WARNING and CAUTION instructions;...
Page 8: Atex Directive Implications
Not allow air to enter the equipment.  Ensure that the system is leak tight.  For further information, please contact Edwards: refer to the Addresses page at the end of this manual for  details of your nearest Edwards company. Page 2 ©...
Page 9: The E2M28/E2M30 Pump
Item Number A373-17-984. On this pump, items 7 and 9 are transposed, with Item 7 being an IEC60320 16-20 Amp socket. © Edwards Limited 2012. All rights reserved. Page 3 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 10: Description
Air (or another gas) can be introduced into the low vacuum stage through the gas-ballast control. The gas-ballast control is a multi-turn valve which you can adjust, as required, between closed and fully open. Page 4 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 11: Technical Data
2 x 10 mbar 1.5 x 10 torr 2 x 10 Maximum water vapour inlet pressure 30 mbar 22.5 torr 3 x 10 © Edwards Limited 2012. All rights reserved. Page 5 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 12: Mechanical Data
15 mm external diameter nozzle (the nozzle can be removed from the 3/4 inch BSP threaded hole) Lubrication data Note: A Edwards Material Safety Data Sheet for the oils specified below is available on request. Table 4 - Lubrication data Hydrocarbon pumps: Recommended oil...
Page 13: Electrical Data
100-105 200-210 A373-17-984, A373-25-984 115-120 200-240 200-230 Motor output rating (continuous) 50 Hz operation 0.75 kW 60 Hz operation 0.90 kW © Edwards Limited 2012. All rights reserved. Page 7 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 14 4. Front view of pump with single-phase motor Pump Item Number Dimension (mm) Single-phase motors A373-15-903, A373-16-903, A374-15-903 A373-15-981, A374-15-981 A373-15-904, A374-15-904 A373-17-984, A373-25-984 Three-phase motors A373-30-940, A373-41-940 Page 8 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 15: Installation
You must ensure that the E2M28 or E2M30 pump is suitable for your application. If you have any doubts as to  the suitability of the pump for your application, refer to the Edwards guidelines on vacuum pump and vacuum system safety (refer to the Associated Publication at the end of the contents list at the front of this manual).
Page 16: Unpack And Inspect
40 °C. There must be a minimum space of 25 mm between the pump and the enclosure walls. Page 10 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 17: Fill The Pump With Oil
Frequency (Hz) refer to Figure A373-16-903 (all) 50/60 A373-15-903, A374-15-903 (all) 50/60 A373-15-981, A374-15-981 A373-15-904, A374-15-904 100-105 200-210 A373-17-984, A373-25-984 (all) 50/60 © Edwards Limited 2012. All rights reserved. Page 11 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 18: Standard Single-Phase Motors
When you select the mating half of the connector, please ensure that it is compatible (IEC60320 C19 female). For compliance with CSA standards, only CSA certified connectors are to be used. Page 12 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 19: Electrical Supply Connection: Single-Phase Motors: 220-240 V 50 Hz And 230-240 V 60 Hz
Figure 4 - Electrical supply connection: single-phase motors: 100 V 50 Hz, 100-105 V 60 Hz and 115 V 60 Hz Wire colour codes: Brown Violet Grey White Orange © Edwards Limited 2012. All rights reserved. Page 13 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 20: Electrical Supply Connection, Single-Phase Motors: 200 V 50 Hz, 200-210 V 60 Hz And 230 V 60 Hz
Figure 5 - Electrical supply connection, single-phase motors: 200 V 50 Hz, 200-210 V 60 Hz and 230 V 60 Hz Wire colour codes: Brown Violet Grey White Orange Page 14 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 21: Electrical Supply Connection, Single-Phase Motors With Amphenol Connector
Figure 6 - Electrical supply connection, single-phase motors with Amphenol connector: 220-240 V 50 Hz and 230-240 V 60 Hz Pin codes: 1. Live 2. Neutral 3. Not used Earth (ground) © Edwards Limited 2012. All rights reserved. Page 15 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 22: Electrical Installation: Three-Phase Motors
The pump will restart automatically when the electrical supply is restored after an interruption. If you do not want the pump to restart automatically, use electrical control equipment which must be reset manually. Page 16 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 23: Check The Direction Of Rotation
We recommend that you use Edwards flexible bellows. © Edwards Limited 2012. All rights reserved. Page 17 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 24: Connect The Pump Outlet
Leak-test the system and seal any leaks found after you have installed the pump, to prevent leakage of substances out of the system and leakage of air into the system. Page 18 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 25: Operation
Use an inert gas purge into the pump gas ballast connection to prevent the condensation of flammable  vapours within the pump mechanism and exhaust pipeline. © Edwards Limited 2012. All rights reserved. Page 19 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 26: Gas Purges
When you operate the pump with the gas-ballast control open, there will be an increased rate of oil loss from the pump. Ideally, a mist filter and oil return kit should be used on clean applications. Page 20 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 27: Start-Up
2.2, make sure that this is not due to your system design before you contact your supplier or Edwards for advice, In particular, the vapour pressure of all materials used in your vacuum system (including pump oil, refer to below) must be much lower than the specified ultimate vacuum of the pump.
Page 28: To Pump Condensable Vapours
2. Close the vacuum system isolation-valve (if not already closed). 3. Close gas-ballast (that is, turn the gas-ballast control clockwise). 4. Switch off the electrical supply to the pump. Page 22 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 29: Maintenance
The pump may have overheated if it was misused, if it malfunctioned or if it was in a fire. Edwards Material Safety Data sheets for fluorinated materials used in the pump are available on request: contact your supplier or Edwards.
Page 30: Check The Oil-Level
Disconnect the pump from the electrical supply, remove the oil drain-plug and allow the oil to drain out of  the pump. Page 24 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 31: Inspect And Clean The Inlet-Filter
3. Refit the inlet-filter (4), circlip (3), O-ring (2) and inlet adaptor (1). Figure 8 - Remove/replace the inlet filter 1. Inlet adaptor 2. O-ring 3. Circlip 4. Inlet-filter © Edwards Limited 2012. All rights reserved. Page 25 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 32: Clean The Gas-Ballast Filter
Clean and overhaul the pump as described in the instructions supplied with the clean and overhaul kit (refer to Section 7.3). Page 26 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 33: Replace The Run Capacitor And Test The Motor
A list of fault conditions and their possible causes is provided in the following sections to assist you in basic fault- finding. If you are unable to rectify a fault when you use this guide, call your supplier or your nearest Edwards Service Centre for advice.
Page 34: The Pump Fail To Achieve Specified Performance (Failure To Reach Ultimate Vacuum)
The pump is filled with the wrong type of oil.  The oil is contaminated.  The process gas is too hot, or the throughput is too high.  Page 28 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 35: The Vacuum Is Not Maintained After The Pump Is Switched Off
The oil box gasket has deteriorated.  There is an oil leak from gas-ballast control.  There is an oil-leak from the drain-plug.  © Edwards Limited 2012. All rights reserved. Page 29 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 37: Storage And Disposal
Particular care must be taken with components and waste oil which have been contaminated with dangerous process substances. Do not incinerate fluoroelastomer seals and O-rings. © Edwards Limited 2012. All rights reserved. Page 31 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 39: Service, Spares And Accessories
The majority of these centres employ Service Engineers who have undergone comprehensive Edwards training courses. Order spare parts and accessories from your nearest Edwards company or distributor. When you order, state for each part required: Model and Item Number of your equipment ...
Page 40: Capacitor Selection Table
A07110028 A50591813 A37325984 A07110039 A50591814 E2M30 A37415903 A07110028 A50591813 A37415904 A07110033 A50591800 A37415981 A07110032 A50591800 A37435903 A07110028 A50591813 N04091000 A07110028 A50591813 Page 34 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 41: Accessories
The Outlet Mist Filter separates and traps oil droplets in the pump outlet to prevent oil mist discharge. The Mist Filter is supplied with an adaptor to connect it to the pump outlet. © Edwards Limited 2012. All rights reserved. Page 35 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 42 7. Solenoid operated pipeline valve 8. Foreline trap 9. Outlet mist filter 10. NW25 adaptor 11. Vibration isolators 12. Oil drain extension Page 36 © Edwards Limited 2012. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 43: Solenoid Operated Pipeline Valve
Use this to control the gas-ballast remotely. You will also need the Gas Ballast Banjo/Elbow Assembly (refer to Section 7.5.14) when you fit this accessory. © Edwards Limited 2012. All rights reserved. Page 37 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 45: Pfpe-Prepared Em Pumps
PFPE-prepared EM pumps Introduction If you have ordered a PFPE-prepared EM pump, the pump will be supplied prepared for use with Edwards PFPE mechanical pump oils, such as Fomblin 06/6 and Krytox 1506. PFPE-prepared EM pumps are suitable for pumping high concentrations of oxygen.
