Instruction Manual

E2M28 and E2M30 Rotary Vacuum Pumps

A373-10-880

Issue T

Original Instructions

Item Number

A373-15-904

A373-15-981

A373-15-903

A373-33-940

A373-33-934

A373-16-903

A373-17-984

A373-25-984

A373-25-903

A373-43-940

A373-43-934

A374-15-904

A374-15-981

A374-15-903

Table of Contents

Summary of Contents for Edwards E2M28

Page 1 E2M28, 200-240 V, 50 Hz, or 230-240 V, 60 Hz, single-phase (Amphenol) A373-16-903 E2M28, 110/200-240 V, 50 Hz, or 115-120/200-230 V, 60 Hz, single-phase A373-17-984 E2M28-FF, 110/220-240 V, 50 Hz, or 115/200-230 V, 60 Hz, single-phase, (Fomblin) filled A373-25-984 E2M28-FF, 220/240 V, 50 Hz, or 230/240 V, 60 Hz, single-phase A373-25-903...
Page 2 AXXX – YY – ZZZ Pump type Variant Motor description 373 = E2M28 10 to 99 903 = 220 V, 0.75 kW 374 = E2M30 904 = 100/200 V 930 = 220 V, 0.75 kW...
Page 3: Table Of Contents
Unattended operation ....................24 Shut-down ........................ 24 Maintenance ..................25 Safety information ......................25 Maintenance plan .......................25 Check the oil-level .....................26 Replace the oil ......................26 © Edwards Limited 2014. All rights reserved. Page i Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 4 Installation ....................... 41 Operation ........................ 41 Maintenance ......................41 For return of equipment, complete the HS Forms at the end of this manual. Page ii © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 5 Publication title Publication number Vacuum pump and vacuum system safety P400-40-100 Vibration isolators A248-01-880 EMF3, EMF10 and EMF20 oil mist filters A462-26-880 © Edwards Limited 2014. All rights reserved. Page iii Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 7: Introduction
Introduction Scope and definitions This manual provides installation, operation and maintenance instructions for the Edwards E2M28 and E2M30 rotary vacuum pumps. The pump must be used as specified in this manual. Read this manual before installing and operating the pump.
Page 8: Atex Directive Implications
Do not allow air to enter the equipment.  Ensure that the system is leak tight.  For further information, please contact Edwards: refer to the Addresses page at the end of this manual for  details of the nearest Edwards company. Page 2 ©...
Page 9: The E2M28/E2M30 Pump

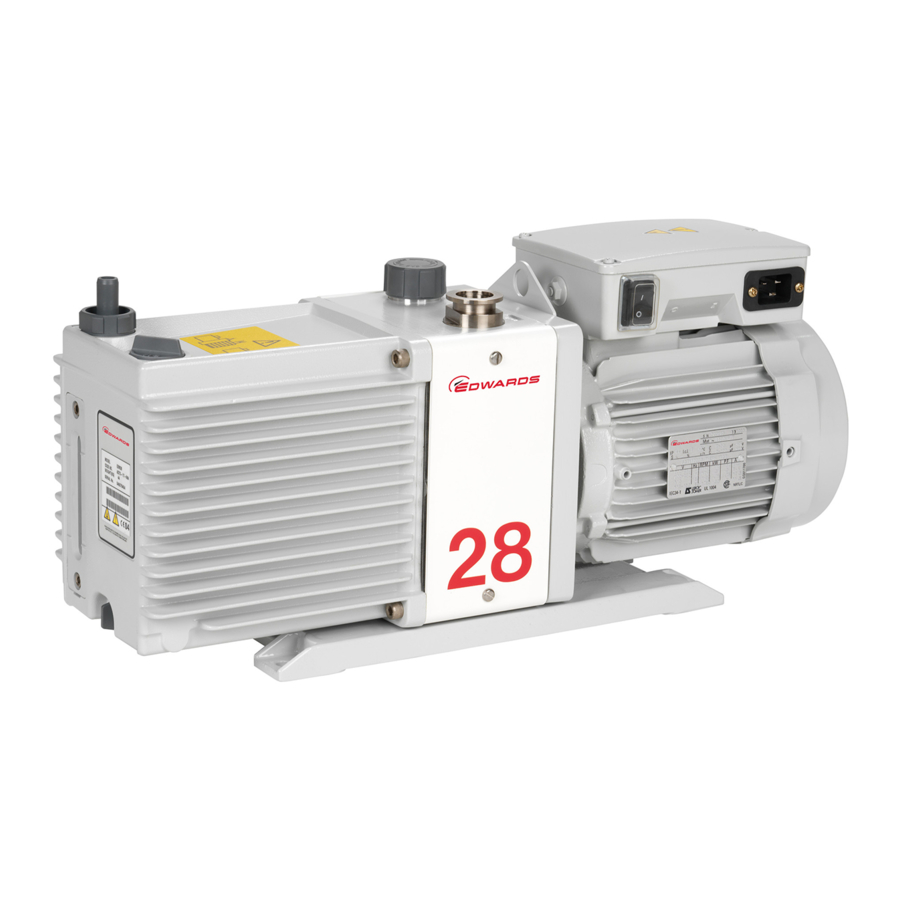

1. A pump with a single-phase motor is shown in this figure. 2. The motor shown in this figure is not representative of the motor used on the E2M28 (Amphenol) pump with Item Number A373-17-984. On this pump, items 7 and 9 are transposed, with Item 7 being an IEC60320 16-20 Amp socket.
Page 10: Description
The E2M28 and E2M30 pumps are two-stage, direct drive, sliding vane pumps. The pump is oil-sealed and designed for reliable, long-term operation in both laboratory and industrial environments. The pump is a free-standing unit.
Page 11: Technical Data
2 x 10 mbar 1.5 x 10 torr 2 x 10 Maximum water vapour inlet pressure 30 mbar 22.5 torr 3 x 10 © Edwards Limited 2014. All rights reserved. Page 5 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 12: Mechanical Data
15 mm external diameter nozzle (the nozzle can be removed from the 3/4 inch BSP threaded hole) Lubrication data Note: Edwards Material Safety Data Sheets for the oils specified below are available on request. Table 4 - Lubrication data Hydrocarbon pumps: Recommended oil...
Page 13: Electrical Data
100-105 200-210 A373-17-984, A373-25-984 115-120 200-240 200-230 Motor output rating (continuous) 50 Hz operation 0.75 kW 60 Hz operation 0.90 kW © Edwards Limited 2014. All rights reserved. Page 7 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 14: Dimensions (Mm)
Pump Item Number Dimension (mm) Single-phase motors A373-15-903, A373-16-903, A374-15-903 A373-15-981, A374-15-981 A373-15-904, A374-15-904 A373-17-984, A373-25-984 Three-phase motors A373-33-940, A373-33-934, A373-43-940, A373-43-934 Page 8 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 15: Installation
Safely route any electrical supply cables so that they cannot accidentally trip people.  Ensure that the E2M28 or E2M30 pump is suitable for the application. If there is any doubt as to the  suitability of the pump for the application, refer to the Edwards guidelines on vacuum pump and vacuum system safety (refer to the Associated Publication at the end of the contents list at the front of this manual).
Page 16: Unpack And Inspect
40°C. There must be a minimum space of 25 mm between the pump and the enclosure walls. Page 10 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 17: Fill The Pump With Oil
Ensure that the electrical supply voltage corresponds with the voltage specified on the motor data plate. Edwards recommends that connecting the electrical supply to the motor through a starter or circuit breaker that has thermal over-current protection and can be adjusted to suit the full-load current ratings shown on the motor rating plate.
Page 18: Standard Single-Phase Motors
When selecting the mating half of the connector, please ensure that it is compatible (IEC60320 C19 female). For compliance with CSA standards, only CSA certified connectors are to be used. Page 12 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 19: Electrical Supply Connection: Single-Phase Motors: 220-240 V 50 Hz And 230-240 V 60 Hz
Figure 4 - Electrical supply connection: single-phase motors: 100 V 50 Hz, 100-105 V 60 Hz and 115 V 60 Hz Wire colour codes: Brown Violet Grey White Orange © Edwards Limited 2014. All rights reserved. Page 13 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 20: Electrical Supply Connection, Single-Phase Motors: 200 V 50 Hz, 200-210 V 60 Hz And 230 V 60 Hz
Figure 5 - Electrical supply connection, single-phase motors: 200 V 50 Hz, 200-210 V 60 Hz and 230 V 60 Hz Wire colour codes: Brown Violet Grey White Orange Page 14 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 21: Electrical Supply Connection, Single-Phase Motors With Amphenol Connector
Figure 6 - Electrical supply connection, single-phase motors with Amphenol connector: 220-240 V 50 Hz and 230-240 V 60 Hz Pin codes: 1. Live 2. Neutral 3. Not used Earth (ground) © Edwards Limited 2014. All rights reserved. Page 15 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 22: Electrical Installation: Three-Phase Motors
The pump will restart automatically when the electrical supply is restored after an interruption. If automatic pump restart is not desired, use electrical control equipment which must be reset manually. Page 16 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 23: Check The Direction Of Rotation
A373-10-880 Issue T Edwards recommends connecting the electrical supply to the motor through a starter or circuit breaker that has thermal over-current protection and can be adjusted to suit the full-load current ratings shown on the motor rating plate. The fuse ratings must be calculated by a qualified person. The supplier of the thermal over-current protection device may specify fuse ratings to ensure correct operation of the over-current protection device.
Page 24: Connect The Pump Outlet
A373-10-880 Issue T pressure rating that is greater than the highest pressure that can be generated in the system. Edwards recommends using Edwards flexible bellows. Use a suitable inlet catchpot if pumping condensable vapours or if using the pump for very dusty ...
Page 25: Leak Test The System
Leak-test the system and seal any leaks found, after installing the pump, to prevent leakage of substances out of the system and leakage of air into the system. © Edwards Limited 2014. All rights reserved. Page 19 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 27: Operation
Use an inert gas purge into the pump gas ballast connection to prevent the condensation of flammable  vapours within the pump mechanism and exhaust pipeline. © Edwards Limited 2014. All rights reserved. Page 21 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 28: Gas Purges
Continually measure the inert gas purge flow rate. If the flow rate falls below that required, stop the flow of flammable gases or vapours into the pump. Note: Edwards recommends obtaining and reading the Vacuum Pump and Vacuum System Safety manual (publication number P400-40-100), available from Edwards or the supplier. Gas-ballast control...
Page 29: Start-Up
2.2, make sure that this is not due to the system design before contacting the supplier or Edwards for advice, In particular, the vapour pressure of all materials used in the vacuum system (including pump oil, refer to below) must be much lower than the specified ultimate vacuum of the pump.
Page 30: To Pump Condensable Vapours
Section 2.1. However, Edwards recommends checking the pump at a regular interval of not more than 14 days. Check the pump more frequently if pumping high volumes of gas or if operating the pump with the gas-ballast control open. Single-phase motors are cooled by internal fans. These motors have a thermal overload device. When the motor is too hot, the thermal overload device switches off the pump.
Page 31: Maintenance
The pump may have overheated if it was misused, if it malfunctioned or if it was in a fire. Edwards Material Safety Data sheets for fluorinated materials used in the pump are available on request: contact the supplier or Edwards.
Page 32: Check The Oil-Level
Disconnect the pump from the electrical supply, remove the oil drain-plug and allow the oil to drain out of  the pump. Repeat this step until the oil reservoir is clean.  Page 26 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 33: Inspect And Clean The Inlet-Filter
3. Refit the inlet-filter (4), circlip (3), O-ring (2) and inlet adaptor (1). Figure 8 - Remove/replace the inlet filter 1. Inlet adaptor 2. O-ring 3. Circlip 4. Inlet-filter © Edwards Limited 2014. All rights reserved. Page 27 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 34: Clean The Gas-Ballast Filter
Clean and overhaul the pump as described in the instructions supplied with the clean and overhaul kit (refer to Section 7.3). Page 28 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 35: Replace The Run Capacitor And Test The Motor
A list of fault conditions and their possible causes is provided in the following sections to assist in basic fault-finding. If unable to rectify a fault when using this guide, call the supplier or the nearest Edwards Service Centre for advice.
Page 36: The Pump Failed To Achieve Specified Performance (Failure To Reach Ultimate Vacuum)
The pump is filled with the wrong type of oil.  The oil is contaminated.  The process gas is too hot, or the throughput is too high.  Page 30 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 37: The Vacuum Is Not Maintained After The Pump Is Switched Off
The oil box gasket has deteriorated.  There is an oil leak from gas-ballast control.  There is an oil-leak from the drain-plug.  © Edwards Limited 2014. All rights reserved. Page 31 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 39: Storage And Disposal
Particular care must be taken with components and waste oil which have been contaminated with dangerous process substances. Do not incinerate fluoroelastomer seals and O-rings. © Edwards Limited 2014. All rights reserved. Page 33 Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 41: Service, Spares And Accessories
The majority of these centres employ Service Engineers who have undergone comprehensive Edwards training courses. Order spare parts and accessories from the nearest Edwards company or distributor. When ordering, state for each part required: Model and Item Number of the equipment ...
Page 42: Capacitor Selection Table
A07110028 A50591813 A37325984 A07110039 A50591814 E2M30 A37415903 A07110028 A50591813 A37415904 A07110033 A50591800 A37415981 A07110032 A50591800 A37435903 A07110028 A50591813 N04091000 A07110028 A50591813 Page 36 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 43: Accessories
A373-10-880 Issue T Accessories 7.5.1 Introduction A range of accessories is available for the E2M28 and E2M30 pumps, as shown in Figure The accessories are briefly described in the following sections. Refer to Table 13 for the Item Numbers of these accessories.
Page 44: Accessories
7. Solenoid operated pipeline valve 8. Foreline trap 9. Outlet mist filter 10. NW25 adaptor 11. Vibration isolators 12. Oil drain extension Page 38 © Edwards Limited 2014. All rights reserved. Edwards and the Edwards logo are trademarks of Edwards Limited.
Page 45: Solenoid Operated Pipeline Valve
This is an NW25 to 28 mm bore tube adaptor, supplied with connection hardware. Attach this adaptor to the NW25 pump-inlet to connect 28 mm bore plastic or rubber tube. 7.5.12 Flexible bellows Use Flexible Bellows to connect the pump-inlet to the vacuum system. Edwards recommends using bellows when using Vibration Isolators. 7.5.13 Pump outlet adaptor This is a 3/4 inch BSP to NW25 adaptor.
Page 47: Pfpe-Prepared Em Pumps
PFPE-prepared EM pumps Introduction When specifying a PFPE-prepared EM pump, the pump will be supplied prepared for use with Edwards PFPE mechanical pump oils, such as Fomblin 06/6 and Krytox 1506. PFPE-prepared EM pumps are suitable for pumping high concentrations of oxygen.
