Edwards XDS35i Instruction Manual

Scroll pumps
Hide thumbs Also See for XDS35i:
Table of Contents

Advertisement

Quick Links

Scroll Pumps
XDS35i, XDS35iC, XDS35iE and
XDS35iCE
INSTRUCTION MANUAL
DESCRIPTION

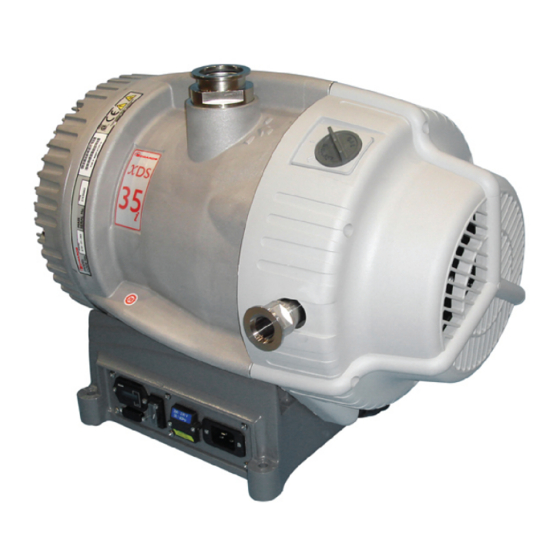

XDS35i Scroll Pump (set to high
volts)
XDS35i Scroll Pump (set to low volts) 100-120 V, 200-230 V, 50/60 Hz - Set to 100 - 120 V
XDS35i Scroll Pump
XDS35iC Scroll Pump Chemical
XDS35i Scroll Pump (No Gas Ballast) 100-120 V, 200-230 V, 50/60 Hz - Set to 200 - 230 V
XDS35iE Scroll Pump Enhanced
XDS35iCE Scroll Pump Enhanced
Chemical
XDS35iE Scroll Pump Enhanced (No
Gas Ballast)
A73001880_M
ELECTRICAL SUPPLY
100-120 V, 200-230 V, 50/60 Hz - Set to 200 - 230 V
100-120 V, 200-230 V, 50/60 Hz - Set to 200 - 230 V
100-120 V, 200-230 V, 50/60 Hz - Set to 200 - 230 V
100-120 V, 200-230 V, 50/60 Hz - Set to 200 - 230 V
100-120 V, 200-230 V, 50/60 Hz - Set to 200 - 230 V
100-120 V, 200-230 V, 50/60 Hz - Set to 200 - 230 V
edwardsvacuum.com
ITEM NUMBER
A730YY983
A730YY986
A7300983
A73006938
A73005983
A73003983
A730983
A73007983
Original instructions

Advertisement

Table of Contents
loading

Related Manuals for Edwards XDS35i

Summary of Contents for Edwards XDS35i

  • Page 1 100-120 V, 200-230 V, 50/60 Hz - Set to 200 - 230 V A730YY983 volts) XDS35i Scroll Pump (set to low volts) 100-120 V, 200-230 V, 50/60 Hz - Set to 100 - 120 V A730YY986 XDS35i Scroll Pump 100-120 V, 200-230 V, 50/60 Hz - Set to 200 - 230 V...
  • Page 2 Copyright notice ©Edwards Limited 2020. All rights reserved. Trademark credit Edwards and the Edwards logo are trademarks of Edwards Limited, Innovation Drive, Burgess Hill, West Sussex RH15 9TW. Associated publications Publication title Publication number Vacuum Pump and Vacuum System Safety...
  • Page 3 Burgess Hill West Sussex RH15 9TW The following product XDS35i scroll pump, set to High volts 100-120 V, 200-230 V, 1 ph, 50/60 Hz A730-YY-983 XDS35i scroll pump, set to Low volts 100-120 V, 200-230 V, 1 ph, 50/60 Hz...
  • Page 4 Additional Legislation and Compliance Information EU EMC Directive: Class A/B Industrial equipment Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. EU RoHS Directive: Material Exemption Information This product is compliant with the following Annex III Exemptions: 6(b) Lead as an alloying element in aluminium containing up to 0.4% by weight •...

  • Page 5: Table Of Contents

    Contents 1. Safety and compliance........6 1.1 Definition of Warnings and Cautions.
  • Page 6 5.6 Remote operation using 15-way D connector......24 5.7 Shut down............25 6.
  • Page 7 Figure 2: Performance characteristics of XDS35i........13...

  • Page 8: Safety And Compliance

    A73001880_M - Safety and compliance 1. Safety and compliance 1.1 Definition of Warnings and Cautions NOTICE: This manual meets our obligation to provide you with information. For safe operation from the start, read these instructions carefully before you install or commission the equipment.
  • Page 9 A73001880_M - Safety and compliance Warning/Caution A safety instruction which must be followed. Warning - Heavy object Identifies a possible hazard from a heavy object. Warning - Dangerous voltage Identifies possible hazards from dangerous voltages. Warning - Hot surfaces Identifies a potential hazard from a hot surface. Warning - Use protective equipment Use appropriate protective equipment.

  • Page 10: Introduction

    2.1 Scope of this manual This manual provides installation, operation and maintenance instructions for the XDS35i, XDS35iC, XDS35iE, and XDS35iCE scroll pumps. The pump must be used as specified in this manual. Read this manual before installing and operating the pump.

  • Page 11: Description

    A73001880_M - Introduction Figure 1 General view 1. NW40 inlet port 1. NW40 inlet port 2. Gas ballast control (not fitted on No Gas 2. Gas ballast control (not fitted on No Gas Ballast variant) Ballast variant) 3. Cooling fan 3.

  • Page 12: Gas Ballast Control

    A73001880_M - Introduction The pump has an NW40 (item 1) inlet and inlet strainer. The pump mechanism is driven directly by a three‑phase electric motor. The motor is controlled by a drive, which manages the supply of current to the motor in accordance with operating conditions and allows the pump to be connected to a single phase supply.

  • Page 13: Construction

    A73001880_M - Introduction 2.5 Construction The pump scrolls are made of anodised aluminium. The motor housing is aluminium. All surfaces of the pump which are exposed to the pumped gases are free from copper, zinc and cadmium. Other materials of construction include fluorocarbon elastomer, nitrile, chemically resistant polymers, nickel, stainless steel and a PTFE composite material.

  • Page 14: Technical Data

    A73001880_M - Technical data 3. Technical data WARNING: If the pump is operated outside the specific limits, the pump housing may become hot. 3.1 Operating and storage conditions Table 1 Operating and storage conditions Ambient temperature range (operation) + 10 °C to + 40 °C Maximum surface temperature of pump body under normal operating conditions and + 40 °C to + 65 °C...

  • Page 15: Performance Characteristics

    < 0.02 < 0.04 < 10.0 < 10.0 Figure 2 Performance characteristics of XDS35i Note: XDS35i can operate with high peak power for 90 seconds before activation of a thermal protection algorithm which reduces rotational and pumping speed. Page 13...

  • Page 16: Mechanical Data

    A73001880_M - Technical data Figure 3 Performance characteristics of XDS35iE The power consumption of the enhanced version at high inlet pressure can be lowered by a further 100 W more with the installation of a second exhaust silencer by an NW25 T‑piece.

  • Page 17: Electrical Cables

    A73001880_M - Technical data Table 6 Electrical data Supply (V) Phase Frequency (Hz) Current (A) 200 ‑ 230 Single 50 - 60 100 ‑ 120 Single 50 - 60 10.6 Table 7 Recommended regional supply protection Area Voltage Rating 230 V 13 A Europe 230 V...

  • Page 18: Installation

    A73001880_M - Installation 4. Installation 4.1 Safety WARNING: Obey the safety instructions in this section and take note of appropriate precautions. Failure to observe these instructions may result in injury to people and damage to equipment. WARNING: Do not expose any part of the human body to vacuum as it can cause injury. WARNING: The pump is not recommended for pumping explosive gases or hazardous substances.

  • Page 19: System Design Considerations

    A73001880_M - Installation ▪ Leak test the system after installation is complete and seal any leaks found to prevent leakage of hazardous substances out of the system and leakage of air into the system. ▪ Mechanical lifting equipment should be attached to the lifting eye on the pump. ▪...

  • Page 20: Figure 4 Installation Drawing (Dimensions In Mm)

    A73001880_M - Installation Figure 4 Installation drawing (dimensions in mm) Page 18...

  • Page 21: Unpack And Inspect

    A73001880_M - Installation 4.3 Unpack and inspect WARNING: Use suitable lifting equipment to move the pump. Mechanical equipment should be attached to the lifting eyes, loose slings should not be used. Failure to do so can cause injury to people and damage to the equipment. Refer to Table: General mechanical data on page 14 for the mass of the pump.

  • Page 22: Electrical Installation

    A73001880_M - Installation 4.5 Electrical installation 4.5.1 Check and configure the pump CAUTION: Isolate the power supply before changing the voltage. Failure to configure the pump electrical supply correctly can result in damage to the pump. Ensure that the voltage shown on the voltage indicator (refer to Figure: General view on page 9) on the motor cover corresponds with the electrical supply voltage.

  • Page 23: Leak Test The System

    A73001880_M - Installation WARNING: If pumping for a prolonged period above 100 mbar inlet pressure, use an exhaust silencer (refer to Silencer on page 34) or connect to an appropriate exhaust line. Before connecting the pump to the vacuum system, remove the plastic cap from the inlet and exhaust and ensure the inlet strainer is fitted to the pump inlet port.

  • Page 24: Operation

    A73001880_M - Operation 5. Operation 5.1 Use of gas ballast control (if fitted) The gas ballast control can be used to optimise the performance of the scroll pump for the application. The performance characteristics of the pump with the different ballast settings are shown in Table: Performance characteristics on page 13.

  • Page 25: To Achieve Ultimate Vacuum (If Gas Ballast Fitted)

    A73001880_M - Operation Switch on the electrical supply to the pump, using the Run/Standby switch Figure: General view on page 9, item 9. With manual operation always use the Run/Standby switch to start/stop the pump. If remote operation is used to control the pump, refer to Remote operation using 15-way D connector on page Open the vacuum system isolation valve (if fitted).

  • Page 26: Remote Operation Using 15-Way D Connector

    A73001880_M - Operation ▪ The inert gas purge should be switched on to remove air from the pump and exhaust before the process starts. The purge flow can be switched off at the end of the process only after any remaining flammable gases or vapours have been purged from the pump and exhaust line.

  • Page 27: Shut Down

    A73001880_M - Operation 5.7 Shut down WARNING: When the pump has been switched off the fan will continue to run for 1 minute. Use the procedure below to shut down the pump: If shutting the pump down prior to a period of storage, remove any process gases by running on high flow gas ballast for at least one hour.

  • Page 28: Maintenance

    A73001880_M - Maintenance 6. Maintenance 6.1 Safety information WARNING: Obey the safety instructions in this section and take note of appropriate precautions. Failure to observe these instructions may result in injury to people and damage to equipment. WARNING: Wait one minute for capacitor discharge after disconnecting the power supply before working on the pump.

  • Page 29: Maintenance Plan

    A73001880_M - Maintenance ▪ Do not touch or inhale the thermal breakdown products of fluorinated materials which may be present in the pump if the pump has been heated to 260 °C and above. Fluorinated materials are safe in normal use but can decompose into very dangerous substances (which may include hydrofluoric acid) if they are heated to 260 °C and above.

  • Page 30: Inspect And Clean The Gas Ballast Control (If Fitted)

    A73001880_M - Maintenance Refit the centring ring and strainer assembly and the O‑ring to the inlet port. Refit the vacuum system to the pump inlet port. Figure 6 Inlet strainer assembly 1. Centring ring and strainer 1. Centring ring and strainer 2.

  • Page 31: Clean The External Fan Cover

    A73001880_M - Maintenance Figure 7 Gas ballast control assembly 1. Gas ballast control 1. Gas ballast control 2. O‑ring 2. O‑ring 3. Air hole 3. Air hole 4. O‑ring 4. O‑ring 5. Bayonet lugs 5. Bayonet lugs 6. Compression spring 6.
  • Page 32 A73001880_M - Maintenance Test the earth continuity and the insulation resistance of the pump motor, in accordance with local regulations for the periodic testing of electrical equipment. We recommend that the earth continuity is less than 0.1 W and the insulation resistance is greater than 2 MW.

  • Page 33: Fault Finding

    A73001880_M - Fault finding 7. Fault finding 7.1 The pump has failed to start or has stopped ▪ The electrical supply fuse has blown. ▪ The electrical supply voltage does not match that for which the inverter input has been configured. ▪...

  • Page 34: The Pump Surface Temperature Is High

    A73001880_M - Fault finding 7.4 The pump surface temperature is high ▪ The ambient temperature is too high. ▪ The cooling air supply is insufficient or is too hot. ▪ The process gas is too hot or the maximum continuous operating pressure has been exceeded.

  • Page 35: Storage And Disposal

    A73001880_M - Storage and disposal 8. Storage and disposal 8.1 Storage Use the following procedure to store the pump: Shut down the pump as described in Shut down on page Disconnect the pump from the electrical supply. Place and secure protective covers over the inlet and outlet ports. Store the pump in cool, dry conditions until required for use.

  • Page 36: Service And Spares

    A73001880_M - Service and spares 9. Service and spares 9.1 Introduction Our products, spares and accessories are available from our companies in Belgium, Brazil, China, France, Germany, Israel, Italy, Japan, Korea, Singapore, United Kingdom, U.S.A and a world‑wide network of distributors. The majority of these centres employ service engineers who have undergone our comprehensive training courses.

  • Page 37: Service

    A73001880_M - Service and spares Table 11 Solenoid operated pipeline valves Product description Ordering information PV40EK Valve, 220‑240 V 50‑60 Hz, C41401000 Aluminium PV40EK Valve, 220‑240 V 50‑60 Hz, Steel C41402000 PV40EK Valve, 110‑127 V 50‑60 Hz, C41403000 Aluminium PV40EK Valve, 110‑127 V 50‑60 Hz, Steel C41404000 9.3 Service Our products are supported by a worldwide network of our service centres.

  • Page 38: Service Kits

    9.4.3 Gas ballast kit The kit, part number A73001803, contains all the necessary components for exchanging gas ballast valve. This kit is suitable for XDS35i (Gas Ballast version) Same kit is available for chemical resistance version of pumps XDS35iC and XDS35iCE under part number A73001815.
  • Page 39 A73001880_M - Service and spares Page 37...
  • Page 40 edwardsvacuum.com...
