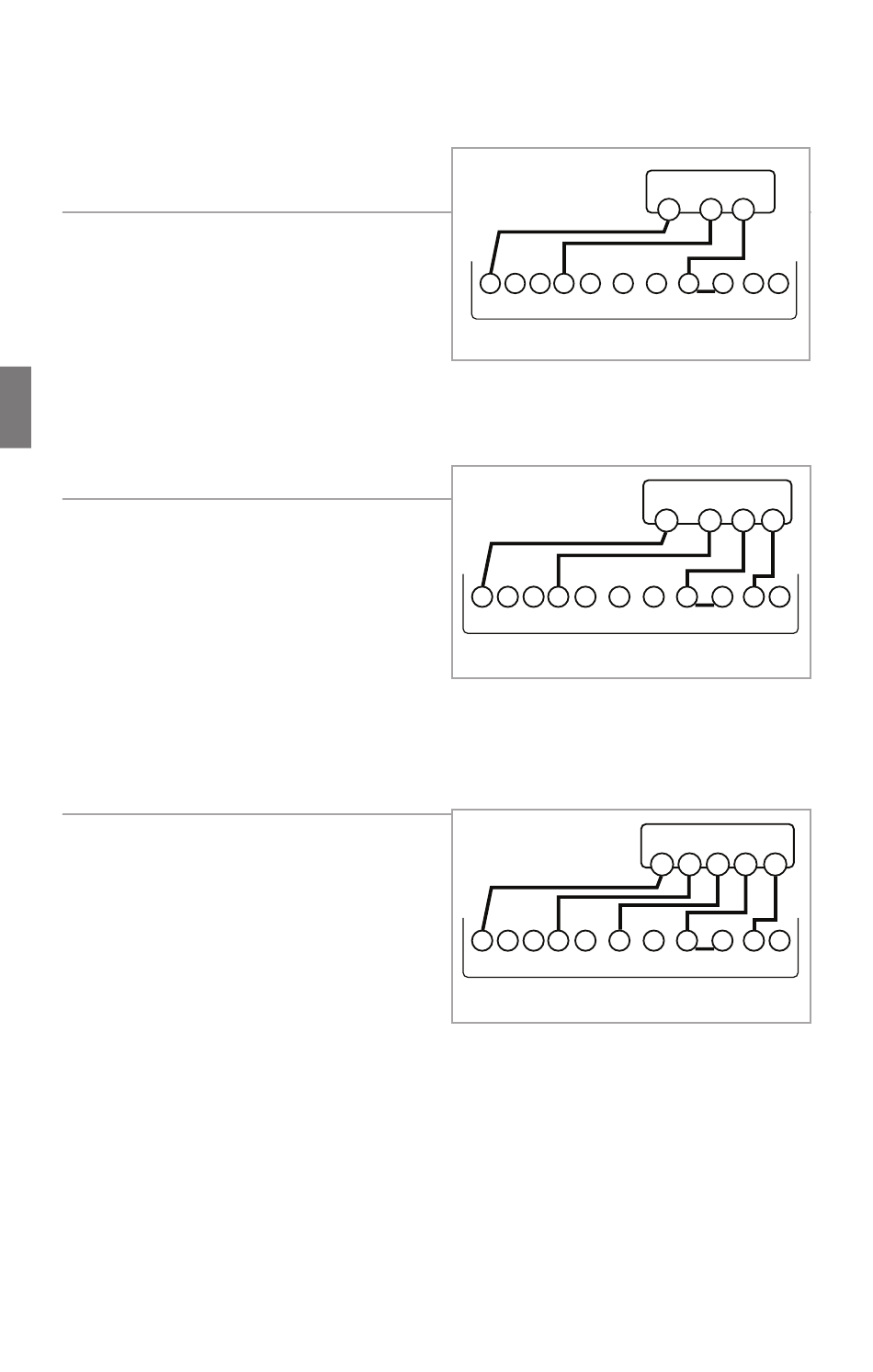

Step-By-Step Wiring Diagrams
3 Wire Heat GAS MILLIVOLT or
24VAC System
1 . Connect the R (or RH) wire to the
RH terminal . This connects the
heat power .
2 . Connect the W wire to the W
terminal . This connects the heat .
3 . If available, connect the C wire to
the C terminal .
4. Go to "Connect Your Wires" on page 9.
4 Wire Heat
1 . Connect the R (or RH) wire to the
RH terminal . This connects the
heat power .
2 . Connect the W wire to the W
terminal . This connects the heat .
3 . Connect the G wire to the G
terminal . This connects the fan .
4 . If available, connect the C wire to the C terminal .
5. Go to "Connect Your Wires" on page 9.
5 Wire Heat/Cool
1 . Connect the W wire to the W
terminal . This connects the heat .
2 . Connect the Y wire to the Y
terminal . This connects the
cooling compressor .
3 . Connect the RH or R wire to the
RH terminal . This connects the
power .
4 . Connect the G wire to the G terminal . This connects the fan .
5 . If available, connect the C wire to the C terminal .
6. Go to "Connect Your Wires" on page 9.
