Vivo STAND-V101N Instruction Manual

Vivo STAND-V101N Instruction Manual

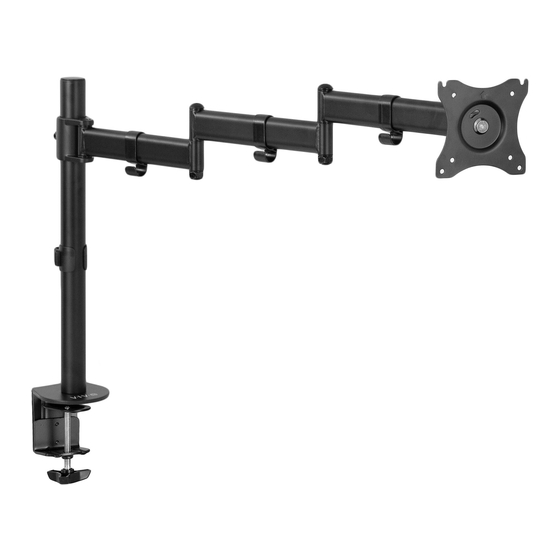

Single monitor desk mount with extra long arm

Advertisement

Quick Links

Single Monitor Desk Mount with Extra Long Arm
Instruction Manual
SKU: STAND-V101N
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101n
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V101N and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V101N

  • Page 1 Single Monitor Desk Mount with Extra Long Arm Instruction Manual SKU: STAND-V101N Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101n GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 Insert the pole cap (D) into the top of the pole (C). STEP 2 OPTION A: Clamp Installation (Desk Thickness: 10mm - 88mm) Mount the pole (C) to the clamp (B) using M6x16 bolts (J). Tighten using 4mm Allen wrench (K).
  • Page 4 STEP 3 Slide cable clip (H) and arm (A) onto the pole (C) and tighten using the 5mm Allen wrench (L). STEP 4 Attach the arm cable clips (F) to the arm (A) as shown.
  • Page 5 STEP 5 Insert two bolts (M-A or M-B) and washers (M-C) into the top mounting holes of the monitor, making sure to leave 3mm of thread exposed. Align bolts in monitor over the slots in the VESA plate. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes of the monitor.
  • Page 6 STEP 6 Adjust the tilt support by turning the bolt on the side of the tilt joint using the 6mm Allen wrench (M). STEP 7 Store the 5mm and 6mm Allen wrenches (L, M) in the cable clip (H) for future adjustments.
  • Page 7 STEP 8 Use the cable clips (F, H) to organize cables.
  • Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
