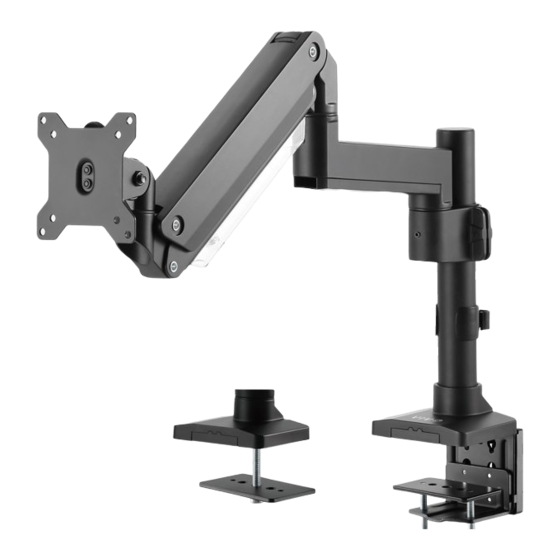

Pneumatic Arm Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V101GT
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101gt
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V101GT
Summary of Contents for Vivo STAND-V101GT
- Page 1 Pneumatic Arm Single Monitor Desk Mount Instruction Manual SKU: STAND-V101GT Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101gt GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 2.2-33lbs Failure to do so may result in serious injury. (1-15kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp brace (L) to base (A) using flat head bolts (N) and tighten with 4mm Allen wrench (P). - Page 4 STEP 1 (Continued) OPTION B: Grommet Base Installation Attach grommet plate (I) to base (A) using flat head bolts (N) and tighten with 4mm Allen wrench (P). Apply soft pad (J) to underside of base. Position base over grommet hole in desktop, or drill a 3/8”...
- Page 5 STEP 4 Place gas spring arm (F) on top of lower arm, and secure by turning the screw on the lower arm with 3mm Allen wrench (O). STEP 5 Install the VESA plate (G) to monitor using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C), making sure the arrow in back is pointing up.
- Page 6 STEP 7 If needed, adjust gas spring arm to support the monitor using the 6mm Allen wrench (Q). Turn the screw in back clockwise to decrease support, and counter-clockwise to increase. Adjust the tilt joint to tighten or loosen tilt support. STEP 8 Remove cable cover on upper arm using a Phillips screwdriver.
- Page 7 STEP 10 For safety, please do not extend the monitor behind the desk. This may cause instability and tip the desk over. Adjust as Desired...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
