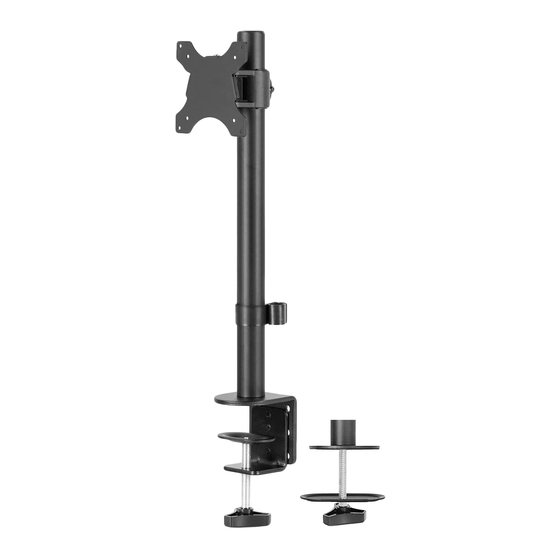

Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V101A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V101A
Summary of Contents for Vivo STAND-V101A
- Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V101A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Install the clamp brace (c) to the pole (a) using M5x14 bolts (f) as shown in Figure 1. Attach soft pad (t1) to the clamp brace as shown in Figure 2. - Page 4 STEP 1 (Continued) OPTION C: Grommet Base Installation Self Drilled Grommet Installation If no grommet hole is present, drill a ⅜” (10mm) hole through the mounting surface. Install the grommet base plate (m) to the pole (a) using M5x14 bolts (f) as shown in Figure 7. Attach soft pad (t2) to the grommet base plate as shown in Figure 8.
- Page 5 STEP 3 OPTION A: Flat Back Monitor For a monitor with a flat back, use M4x12 thumbscrews (q) to attach the VESA plate (e) to the monitor. NOTE: Do not over-tighten screws. Thumbscrews only need to be finger-tight. OPTION B: Curved Back Monitor For a monitor with a curved or recessed back, use spacers (s) and M4x30 bolts (r) to attach the VESA plate (e) to the monitor.
- Page 6 STEP 4 Slide the monitor onto the head of monitor arm (d) as shown. Install the M4x6 bolt (h) to secure the monitor. Make sure the bolt is installed before you rotate the monitor.
- Page 7 STEP 5 Fasten the grub screw in the monitor arm to fix the tilt and using the 3mm Allen key (o-3). Alternatively, remove the VESA plate and tighten the nut in the center of the joint. Manage the wires using the cable clip (n) as shown.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
