User Guide

INSTALLING THE SIGMASTUDIO SOFTWARE

Download and install the latest version of
ing the following steps:
1. Install the latest version of the Microsoft
not already installed on the PC. The latest version of the .NET
framework can be downloaded from the Microsoft website.
2. Go to www.analog.com/SigmaStudio
version of SigmaStudio from the Downloads And Related
Software section.
3. Download the installer and run the executable file. Follow the
prompts, including accepting the license agreement, to install
the software.
INSTALLING THE USBI (EVAL-ADUSB2EBZ)
DRIVERS
SigmaStudio must be installed to use the USBi. When the SigmaS-
tudio installation completes, perform the following steps:
1. Connect the USBi to an available USB 2.0 port using the USB
cable included in the evaluation board kit (the USBi does not
function properly with a USB 3.0 port).
2. Install the driver software (see the
or the Using Windows 7 or Windows Vista
information).
Using Windows XP
After connecting the USBi to the USB 2.0 port, Windows
recognizes the device (see Figure
the drivers.

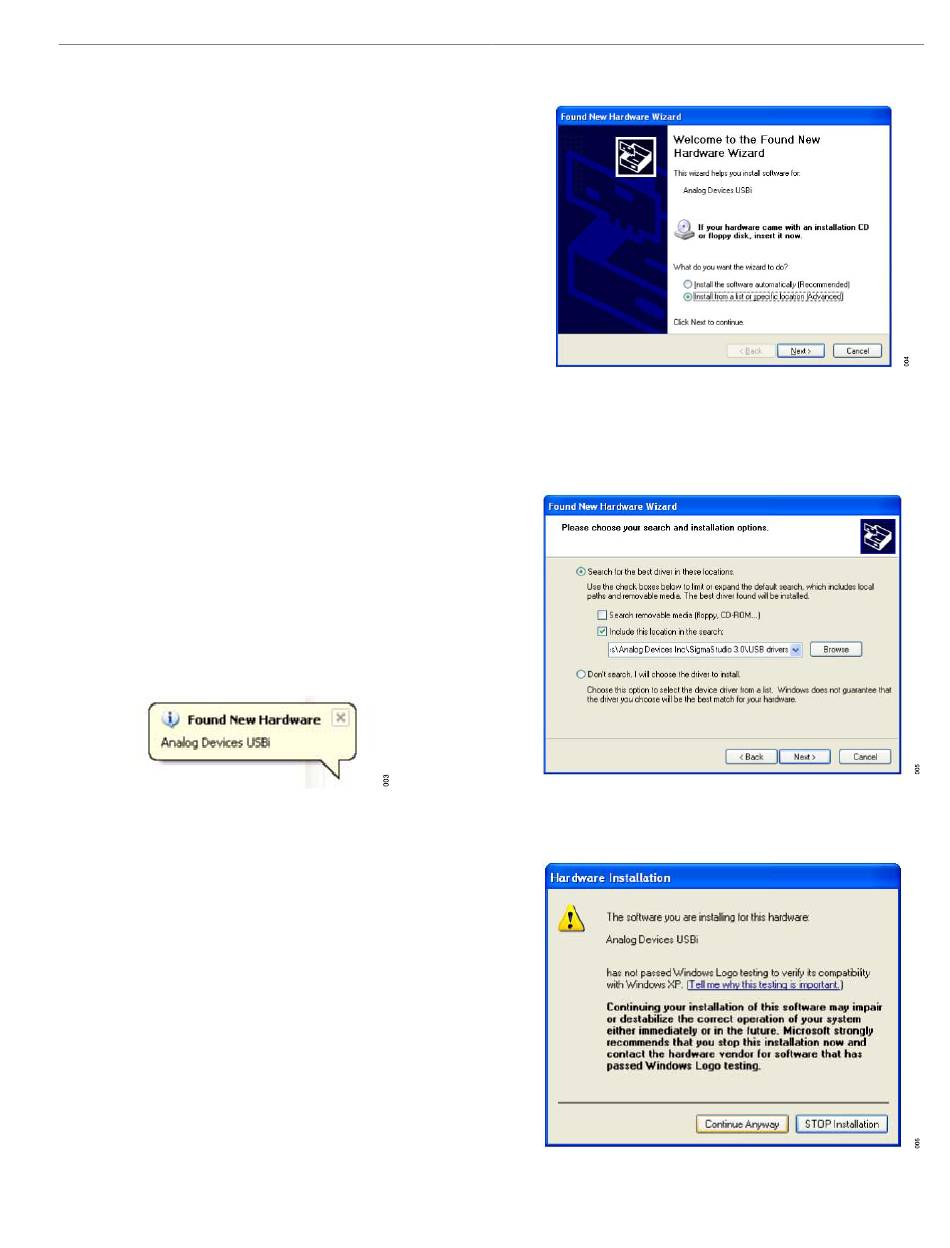

Figure 3. Found New Hardware Notification
Use the Found New Hardware Wizard to complete the installation
of the drivers. The installation of the drivers is shown in the follow-
ing steps:
1. From the Found New Hardware Wizard window, select the
Install from a list or specific location (Advanced) option and
click Next > (see Figure 4).
analog.com
SigmaStudio by complet-
®
.NET framework if it is
and download the latest
Using Windows XP section
section for more
®
XP
3) and prompts the user to install
Figure 4. Found New Hardware Wizard: Installation
2. Select Search for the best driver in these locations, select
Include this location in the search:, and click Browse to find
the USB drivers subdirectory within the SigmaStudio directory
(see Figure 5). Then, click Next >.
Figure 5. Found New Hardware Wizard: Search and Installation Options
3. When the Hardware Installation warning appears, click Con-
tinue Anyway (see Figure
Figure 6. Hardware Installation Warning
EVAL-SSM6515
6).
Rev. 0 | 6 of 23
