SETTING UP THE EVALUATION BOARD
2
EXTERNAL I S INPUT, I
2
If using the external I S input, the only change needed is for J13.
2
Connect a digital I S audio source to J13. The external I
must be 1.8 V p-p. Refer to Table 2
Figure 24. External I
analog.com

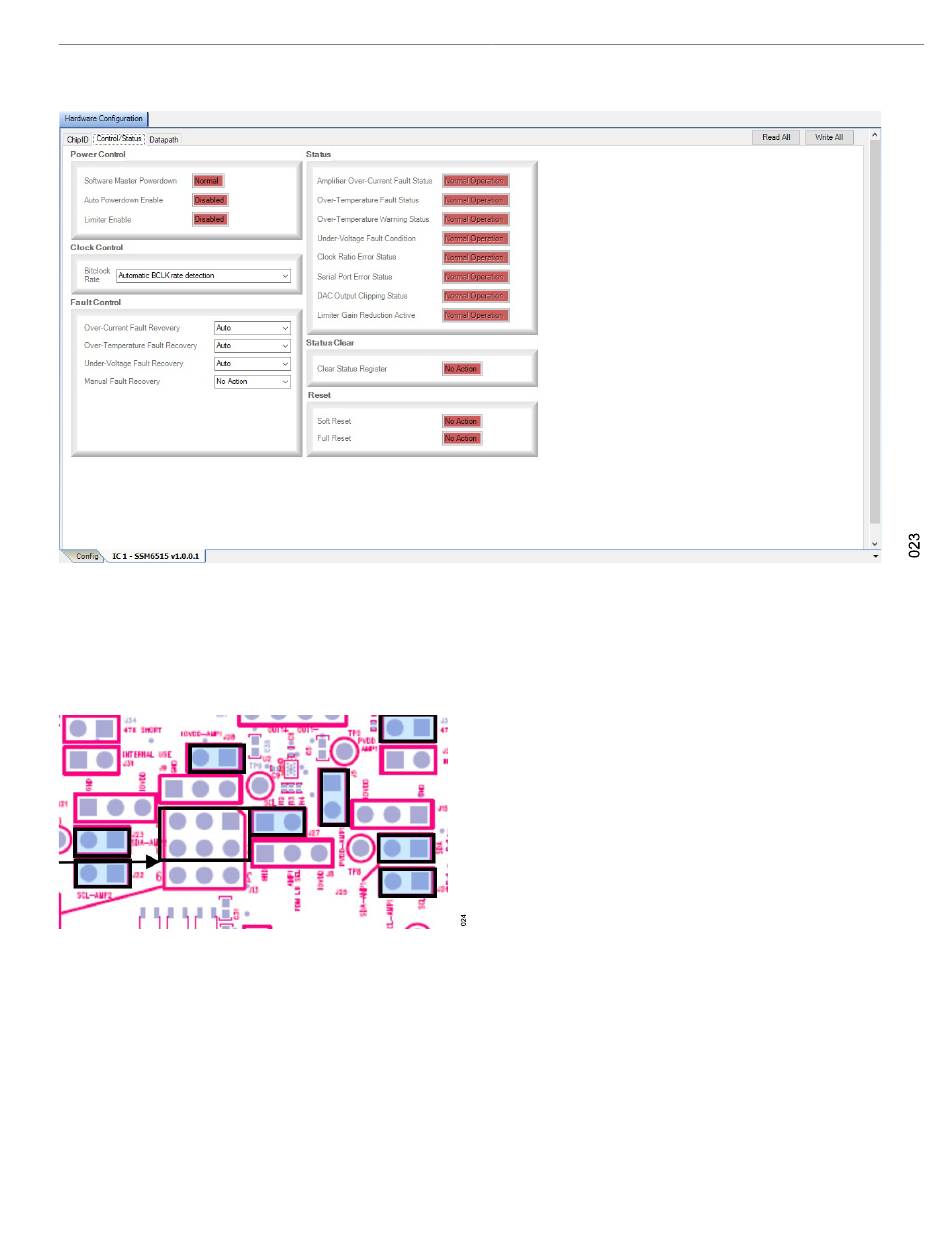

Figure 23. Control/Status Tab
2
C MODE
2
S signals
for the J13 header connections.
2
S Selection
DEFAULT SWITCH AND JUMPER SETTINGS
2
(PDM INPUT, I C MODE)
If using the PDM source as an input, use the same settings as
shown in Figure 19, but connect only the PDM data and clock at Pin
2 and Pin 8 of J13. Leave Pin 5 (center) unconnected. Follow
5 for the desired PDM mode. Then, use
the PDM mode for the SSM6515, as shown in
Turn on the PDM signals to the EVAL-SSM6515Z. The audio output
is available at J38 (AMP1) and J40 (AMP2).
EVAL-SSM6515
SigmaStudio to configure
Figure 22.
