SETTING UP THE EVALUATION BOARD
3. Click the Control/Status tab. Click Software Master Power-
down to select Normal to turn on the amplifier if the I
analog.com
are provided. The amplifier outputs the audio at J38 (AMP1)
2
S clocks
and J40 (AMP2).

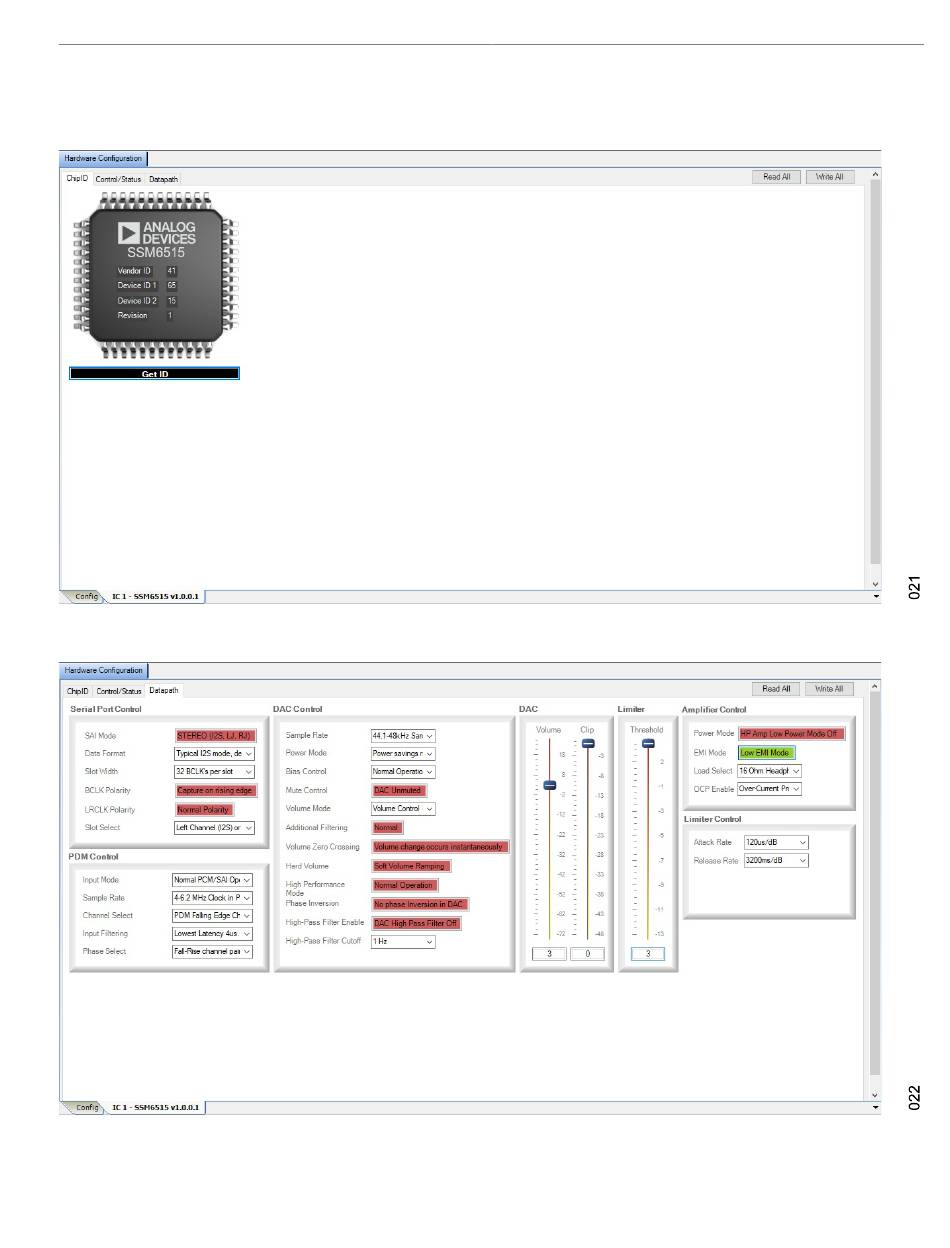

Figure 21. ChipID Tab
Figure 22. Datapath Tab
EVAL-SSM6515
Rev. 0 | 12 of 23
