User Guide
INSTALLING THE SIGMASTUDIO SOFTWARE
To use the USBi with SigmaStudio, select USBi from the Commu-
nication Channels list of the Tree Toolbox (see
drag it to the right to add it to the project space.

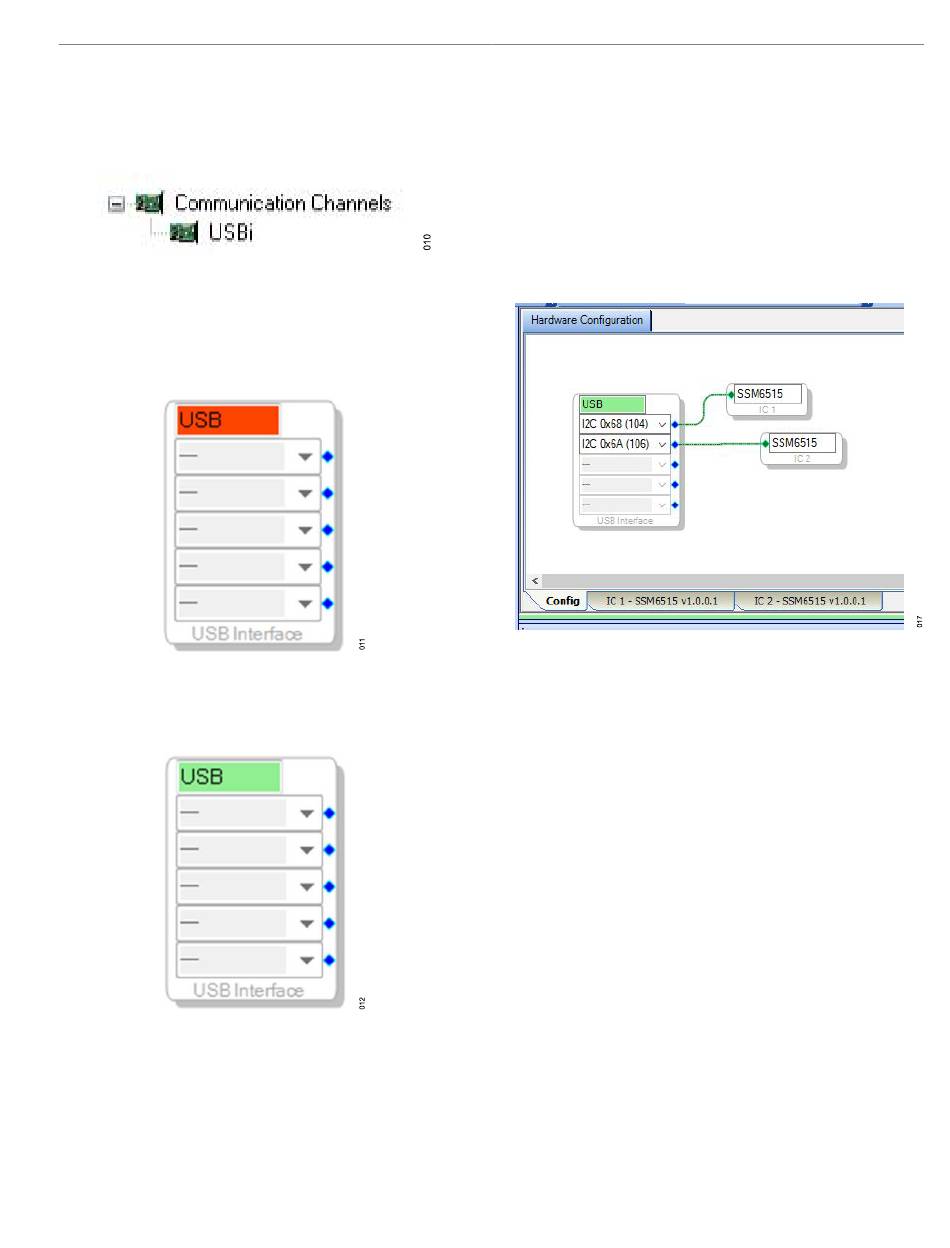

Figure 14. Adding the USBi Communication Channel
If SigmaStudio cannot detect the USBi board on the USB port of the
PC, the background of the USB label is red (see
label turns red when the USBi is not connected or when the drivers
are installed incorrectly.
Figure 15. USBi Not Detected by SigmaStudio
If SigmaStudio detects the USBi board on the USB port of the PC,
the background of the USB label is green (see
Figure 16. USBi Detected by SigmaStudio
analog.com
Add two SSM6515s from the Tree ToolBox to the Hardware
Figure 14), and Configuration tab by selecting SSM6515 from the Processors
(ICs / DSPs) list and dragging it to the project space (see
10).
To use the USBi board to communicate with the target IC, connect
the IC by clicking and dragging a wire between the blue pin of the
USBi and the green pin of the IC (see
ing dropdown box of the USBi automatically fills with the default
mode and channel for that IC.
Figure 15). The
Figure 16).
EVAL-SSM6515
Figure
Figure 17. Connecting the USBi to an SSM6515 IC
Figure
17). The correspond-
Rev. 0 | 9 of 23
