INSTALLING THE SIGMASTUDIO SOFTWARE
The USBi drivers are now installed. Leave the USBi connected to
the PC.
Using Windows 7 or Windows Vista
After connecting the USBi to the USB 2.0 port, Windows 7 or
Windows Vista recognizes the device and installs the drivers auto-
matically (see Figure 7). When the installation completes, leave the
USBi connected to the PC.

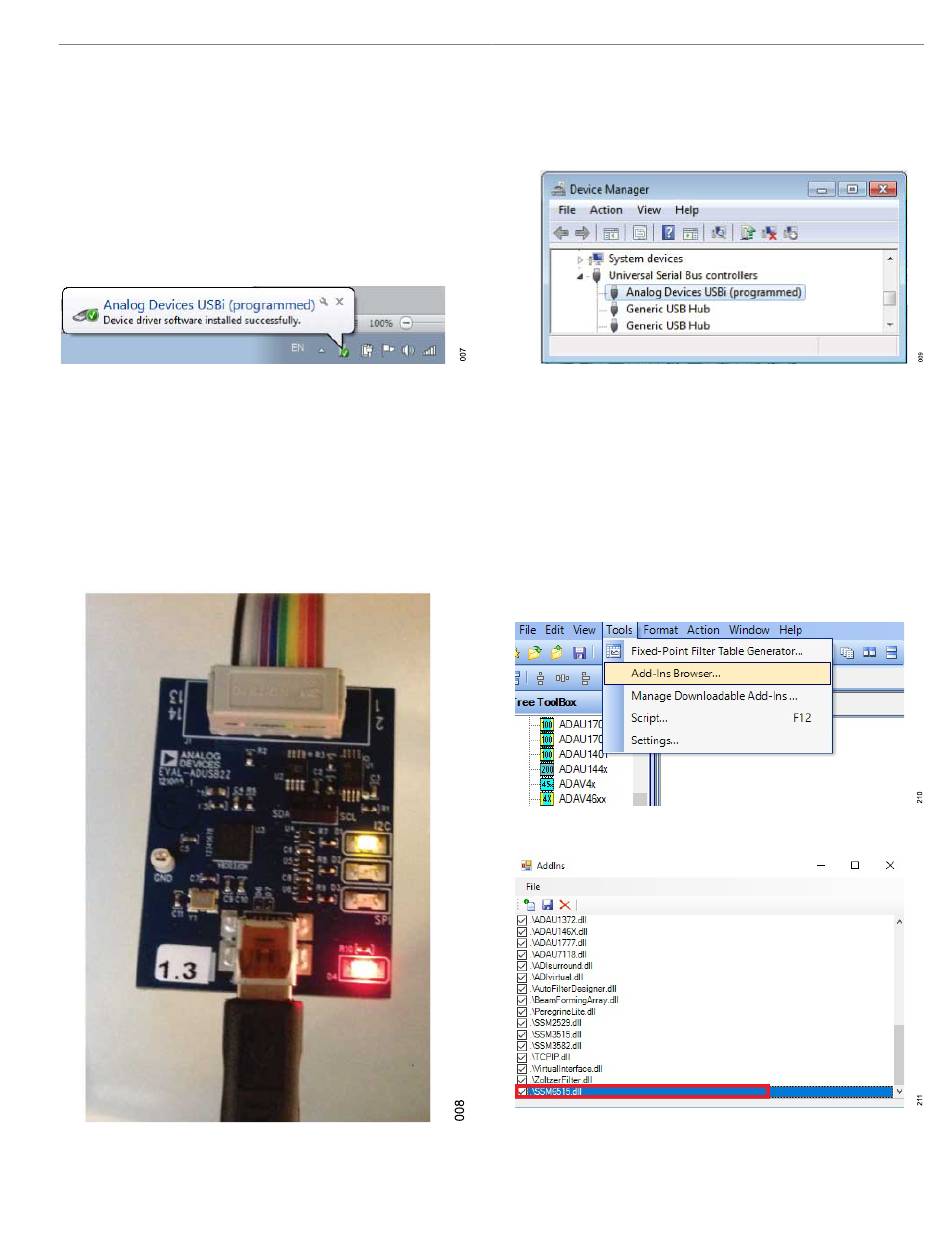

Figure 7. USBi Drivers Installed Properly
Confirming Proper Installation of the USBi
Drivers
To confirm that the USBi drivers are installed properly, complete the
following steps:
1. With the USBi still connected to the USB 2.0 port of the PC,
check that both the yellow I
LED are illuminated (see Figure
Figure 8. State of USBi Status LEDs After Driver Installation
analog.com
2
C LED and the red power indicator
8).
2. In the Windows Device Manager, under the Universal Serial
Bus controllers section, check that Analog Devices USBi
(programmed) appears as shown in
Figure 9. Confirming Driver Installation Using the Device Manager

ADDING THE DLL FILE

Add the provided SSM6515.dll file manually by copying the
SSM6515.dll file to the C:\ProgramFiles\AnalogDevices\SigmaS-
tudio folder in the PC. To add the SSM6515 to the Tree ToolBox,
click Tools and then click Add-Ins Browser... (as shown in
10). The AddIns popup window opens (see
In the list of devices displayed in the AddIns popup window, ensure
the SSM6515 checkbox is selected, as shown in
File and then click Save before exiting the window.
Figure 10. Adding an SSM6515
Figure 11. Saving the SSM6515.dll File in the AddIns Popup Window
EVAL-SSM6515
Figure 9.
Figure
Figure 11).
Figure 11. Click
