03/10 Rev. 5.04-01
Mounting & Setting
Safety Instructions ........................................ 1
Mounting on an ALX 92x ............................... 2
Required components ............................... 2
Required tools ........................................... 2
Fitting the applicator .................................. 3
grid .......................................................... 4
Parameter settings on the ALX 92x .......... 4
Mounting on an ALS 20x/256 ........................ 5
Required components ............................... 5
Required tools ........................................... 5
Fitting the applicator .................................. 6
grid .......................................................... 7
USER MANUAL
LA-BO
label material ...............................................11
vacuum grid ...........................................11
vacuum grid ...........................................13
Adjusting the air stream support ..............14
parameter ..............................................15
Initializing the applicator ..........................15
Compressed air settings ..........................16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Novexx Solutions LA-BO
Summary of Contents for Novexx Solutions LA-BO
-
Page 1: Table Of Contents
Mounting & Setting Safety Instructions ........1 Adjusting the labelling application height ..10 Mounting on an ALX 92x ....... 2 Adjusting the LA-BO to the used label material ..........11 Required components ....... 2 Adjusting the sliding bars in the Required tools ........... 2 vacuum grid ...........11... -
Page 2: Safety Instructions
When setting the applicator: make sure that the applicator cannot be trig- gered unintentionally. When mounting, dismounting or servicing the LA-BO, make sure the labelling head ALX 92x or ALS 20x/256 and the air pressure are switched off! The operating air pressure must be at least 5 bars and no more than 6 bars. -
Page 3: Mounting On An Alx 92X

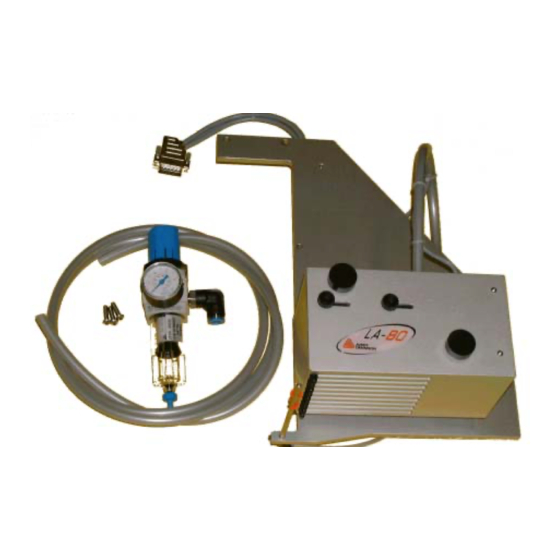

(3x screw ISO7380 M5x20) Filter regulator included [Tab. 1] These parts are required to mount the LA-BO on an ALX 92x. Required tools Allen key 3 mm Small size screwdriver For ALX 92x supplied before May 2007, 3 mounting holes have to be drilled in the ALX 92x ground-plate. -
Page 4: Fitting The Applicator
2. Bolt the base plate of the applicator onto the base plate of the ALX 92x (3x M5x20). 3. Plug the cable of the LA-BO into the D- sub connector of the ALX 92X on the top side of the printer unit. -
Page 5: Adjusting The Dispensing Edge To The Vacuum Grid
APPLICATOR PARA Applicator type Application mode After start sig. (preferred setting for maximum output capacity) Blow on time 60 ms [Tab. 1] The parameter settings required for operating the LA-BO applicator on an ALX 92x. -
Page 6: Mounting On An Als 20X/256
ALS 206/256 A9825 (RH) Filter regulator included [Tab. 2] These parts are required to mount the LA-BO on an ALS 20x/256. Required tools Allen key 4 mm Small size screwdriver When mounting LA-BO to ALS 206/256, a additional Spacer Block (A9090) for the L-shape fixture has to be ordered. -
Page 7: Fitting The Applicator
Remount the dispensing edge of the ALS 20X/256 (2). 4. Plug the cable of the LA-BO into the high density D-sub connector in the AI-board at the back side of the ALS 20X/256 or into the D-Sub 15 connector when using Internal Applicator Interface (adaptercon- nector A9103 necessary). -
Page 8: Adjusting The Dispensing Edge To The Vacuum Grid
As a guideline, the vacuum grid surface should be positioned approximately 1 mm below the center of the dispensing edge. To adjust: Loosen the fixing screws of the applicator’s bracket, adjust the height of the LA-BO to the dispensing edge and retighten the screws. -
Page 9: Parameter Settings On The Als 20X/256
„After start sig.“ (preferred setting for maximum output capacity) Blow on time 60 ms [Tab. 1] The parameter settings required for operating the LA-BO applicator on an ALS 20x/256 (Labeller firmware version: 1.10). Firmware 1.33 Menu Parameter Value (Standard signal LABEL SETUP Lab. - Page 10 (preferred setting for maximum output capacity) Blow on time 60 ms [Tab. 4] The parameter settings required for operating the LA-BO applicator on an ALS 20x/256 (Labeller firmware version: 1.34). Firmware 1.34 SIGNAL INTERFACE > AI BOARD SIGNAL menu appears, if the optional applica- (Applicator SIGNAL INTERFACE >...
-
Page 11: Adjusting The Labelling Application Height
LA-BO as close as possible to the product sur- face. Obviously a safe distance has to be respected so the conveyed prod- ucts can not come in contact with the parts of the LA-BO, especially the blow pipe for air stream support (see p.16). -
Page 12: Adjusting The La-Bo To The Used Label Material
USER MANUAL Mounting & Setting LA-BO Adjusting the LA-BO to the used label material The following adjustments have to be made every time the label format is changed on the ALX 92x or ALS 20x/256. Adjusting the sliding bars in the vacuum grid... - Page 13 03/10 Rev. 5.04-01 USER MANUAL Mounting & Setting LA-BO [Fig. 14] Adjusting the bars in the vacuum grid so air nozzles outside the label surface are closed off. 3. Carefully adjust the bars to the label size by moving the knobs just against the label edge, without touching the edge of the label.
-
Page 14: Adjusting The Air Nozzles In The Vacuum Grid
To achieve optimal labelling apply accuracy it is important to adjust the blow- off air flow in the center of the label under the vacuum grid. Therefore the air nozzles of the LA-BO can be fine adjusted in the X (width) and Y (length) direction in reference to the label area. -
Page 15: Adjusting The Air Stream Support
The small brass blow pipe (fig. 2) creates an air stream during the dispensing of the label to support the label towards the vacuum grid of the LA-BO. It is necessary to adjust the position of the blow pipe to obtain an aligned and straight label transport to the vacuum grid. -
Page 16: Setting The Dispensing Position Parameter
Mounting & Setting LA-BO Setting the dispensing position parameter When using the LA-BO applicator the dispensing stop position should be set so that the label is just released when dispensed, i.e. so that it no longer adheres to the carrier material. -
Page 17: Compressed Air Settings
(see [Fig. 19]). The valve has 2 electrical coils and there- fore 3 positions. If both coils are not activated, the LA-BO is in a stand-by status and no air pressure is used. If the upper coil is activated, the valve switches the air flow to blow off the label from the vacuum grid.
