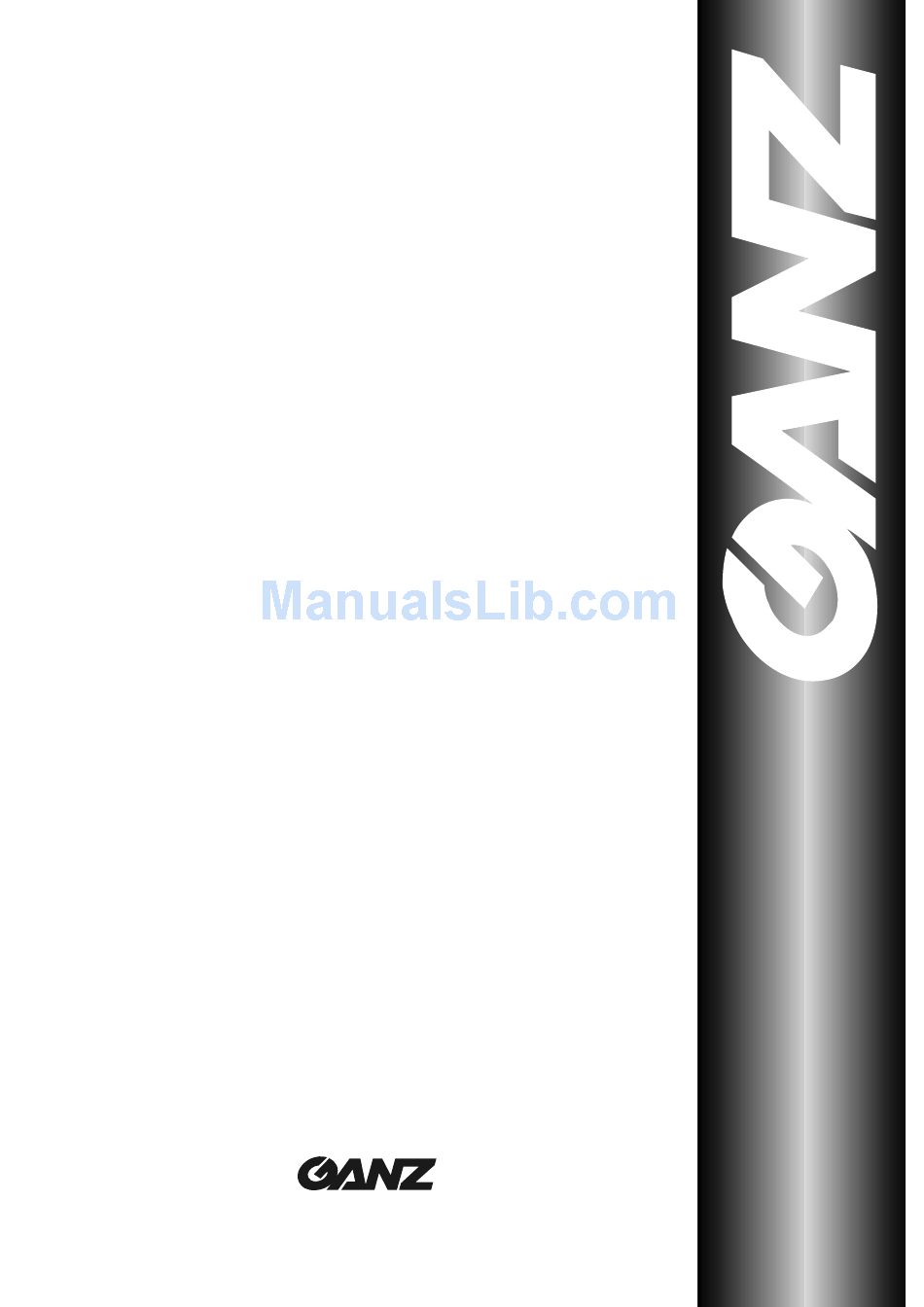

- Page 1 ETHERNET CAMERA, MPEG-4 ZN-L8000 INSTRUCTION MANUAL ZN-L8210PHA ZN-L8210NHA ZN-LN8048PHA ZN-LN8048NHA Color or Day/Night High Resolution Camera with Integrated Computar Auto-Iris Varifocal Lens & MPEG-4 Streaming Video...
- Page 2 Because of the further development of the products, the content of the manual may change without prior notice. CBC (America) Corp. will not be liable for damage which is directly due to errors, incompleteness or any discrepancies between the manual and the product described.
-
Page 3: Table Of Contents
INDEX INDEX INTRODUCTION SAFETY INFORMATION PRODUCT DESCRIPTION INSTALLATION CONFIGURATION WITH WEB BROWSER OPERATION WITH INTERNET EXPLORER SERVICE TECHNICAL SPECIFICATIONS v2.0 - English... -
Page 4: Introduction
INTRODUCTION This manual is intended for persons authorized to install and operate this camera and other VCS products. International, national and any relevant regional regulations relating to electronics must be observed at all times. Conventions In this manual, the following symbols and notations are used to draw attention to special situations: Attention! This symbol indicates tips and notes that make using the device easier and more convenient. -
Page 5: Safety Information
SAFETY INFORMATION Electrical Shock Hazard Ø Never attempt to connect the unit or the power supply to any power source other than the one for which it was provided for. Ø Use only appropriate and approved power supply units with this device (see technical specifications). -
Page 6: Product Description
PRODUCT DESCRIPTION System Requirements Ø PC with Windows 98/2000/XP operating system and network connection Ø Microsoft Internet Explorer web browser (version 5 and up) or serial interface and terminal program, e.g. Windows Hyperterminal Configuration Requirements Ø Computer with Windows 98/2000/XP operating system and network connection Ø... - Page 7 Multicast functions This camera utilizes MPEG-4 compression technology. Thanks to efficient encoding, the data transmission rate remains low, even with maximum image quality at 25 images per second; furthermore, it can be adapted to meet the bandwidth requirements of various network infrastructures.
- Page 8 Connectors and Controls 5 / 8 DC iris: ON Anti-Flicker: ON/OFF BLC: ON/OFF Always ON Line Audio In Line Audio Out ALARM IN 1 VR for iris adjustment Zoom adjustment Focus adjustment DC iris connector USB Port Power Supply LED Analog Video Output (BNC) Day/Night Control Terminal (NO) (Only on Day/Night models)
-
Page 9: Installation
INSTALLATION This camera is designed for indoor operations. Choose a site for installation which ensures that the camera is NOT exposed to extreme temperatures or extreme moisture or humidity. The ambient temperature must be between +40°F and 115°F (+5°C ~ 40°C) and the relative humidity cannot exceed 80%. During operation, the unit generates a good amount of heat. - Page 10 Ø Click on “ OK” Ø Wait few seconds and click again on ‘ scan’ icon to view new IP address in the list. Ø Select again the ‘ ZN-L8000’ and right-click, selecting “ View in Browser”to view the camera in Microsoft Internet Explorer.
-
Page 11: Configuration With Web Browser
CONFIGURATION WITH WEB BROWSER Making the Connection The integrated HTTP server offers you the possibility of configuring the camera over the network with a web browser. This possibility is far more convenient than the configuration via the terminal program and also allows you to view live video images. In order for live video images to be decoded, the special MPEG ActiveX control required must be installed on the computer. - Page 12 Click on the items in the left gray bar to navigate the configuration pages. The pages are divided into categories; click on each category and then on the desired subject. To save your changes, it is necessary to click the Set button on each screen before moving on to another category of settings.
- Page 13 Unit Identification ó Password Settings Password level: Access to the camera is generally protected with a password in order to prevent unauthorized use of the device. The transmitters operate with three authorization levels: Live, User and Service. Service - for configuration, services control and live picture. User - for services control and live picture.
- Page 14 Unit Identification ó Time Server Settings The camera can receive a time signal from an NTP server and use it to set the internal clock. The device calls up the time signal automatically every two hours. Time zone: Time server IP address: Display Settings ó...
- Page 15 The data transmission parameters can be configured to suit the local operating environment (e.g. network architecture, bandwidth, data structures). The ZN-L8000 camera can provide you the power of 2 independent MPEG-4 Encoders that you can use at different transmission bandwidths, resolutions, etc. for remote transmission, local transmission or recording, in order to optimize your system and network usage.
- Page 16 Video resolution: You can choose between these resolutions: Reset this parameter preset: When the 'Default' button is pressed, the parameters for the selected profile are reset to the factory default values. If the MPEG ActiveX control is not installed on your computer, a corresponding message will be displayed when you switch to the live image page.
- Page 17 1 is activated and will be disconnected automatically when the button is turned off. Number of video receiver address: The ZN-L8000 can store up to 10 alarm IP addresses. In case of an alarm, the addresses are contacted one after the other until a connection is established. v2.0 - English...
- Page 18 Alarm IP address: You can enter the IP addresses of a possible receiver. Remote receiver password: Here you can enter the respective receiver password in case the receiver is protected by one. Live video auto-connect: Select the option On if it is required to re-establish a connection to the previously specified IP address after each restart, e.g.
- Page 19 Motion detector: Select the option On to activate the video sensor. Select sensor field: The areas of the image to be monitored by the video sensor are selected here. The video frame is subdivided into 396 square cells. activated or deactivated. camera field of view from the monitoring process because of, say, continuous movement (e.g.
- Page 20 Tracker: In the Tracker field you see an arrow, which indicates the current motion in the video image. By means of check boxes in the four corners, the desired direction can be activated. If, for example, all movements to the “ left” and “ upwards” are to activate an alarm, then mark the top left corner.
- Page 21 The following events can activate the relay: Ø Off: No relay triggering by events Ø Connection: Triggering if any connection is established Ø Video alarm: Triggering caused by loss of the video signal Ø Motion alarm: Triggering by the motion alarm Ø...
- Page 22 The IP address of the VCS DNS server is 195.145.107.78. DNS refresh time: enter here the time interval for the ZN-L8000 to contact the DNS server. You can enter a value from 30 to 86400 sec (24 h). Leave this field empty if you don't want to use the DNS function.
- Page 23 The devices support the multi-unicast operation up to a maximum of 5 simultaneously connected receivers for MPEG-4. The transparent data connection is maintained from the first unit. However, after 15 seconds of inactivity the data connection is automatically suspended and another unit can exchange transparent data with the transmitter. For multilink operation, the network is not required to be multicast compatible as the devices are also multi-unicast compatible.
- Page 24 Service Settings ó Livepage Settings The live page can be set up to suit individual requirements. Options are provided here to display different information and operating elements along with the video picture. addition, individual background images for the main window and for the upper screen area (banner) can be used.
- Page 25 Save general logfile to hard disk: Select this option to store the logfile in a text file on the local computer. File for saving alarm messages: Enter the path to the location where the log files for the alarm messages are stored. File for saving general messages: Enter the path to the location where the log files for the general system messages are to be stored.
-
Page 26: Operation With Internet Explorer
OPERATION WITH INTERNET EXPLORER You must use Microsoft Internet Explorer from version 5, the Microsoft Java Virtual Machine and please disable the java script debugging. You need to install the MPEG ActiveX plugin. Your PC should support a video resolution of 1024 x 768 pixels. Connection Once you have configured your device, you may enter the IP address of the camera into the Internet Explorer address bar. -
Page 27: Service
In order to activate the new configuration the system must be rebooted by entering the current IP address followed by a reset operation: http://192.168.0.1/reset Updated Firmware Download You can find updated firmware for ZN-L8000 cameras at the following URL: http://www.cbc-europe.it/cctv/download 176 x 144 pixels 352 x 288 pixels (default value) (Ex: ping 192.168.0.1) -
Page 28: Technical Specifications
TECHNICAL SPECIFICATIONS Video Model ZN-LN8048NHA System NTSC/EIA (Day/Night) Sensor Pixels 768(H) x 492(V) pixels Scanning System Sync. System (H) : 15.734KHz Scanning freq. (V) :59.94Hz Res. (H) 470 TVL S/N ratio Sensitivity < 0.09 lux (F1.6) @ 30 IRE (Night Mode) Gamma Video Output White Balance... - Page 29 CBC (America) Corp. Imaging Technology Division New York Office Los Angeles Office 55 Mall Drive 20521 Earl Street Commack, NY 11725 Torrance, CA 90503 Tel.: 631 864 9700 Tel: 310 793 1500 Fax: 631 543 5426 Fax: 310 793 1506 cctv@cbcamerica.com...
