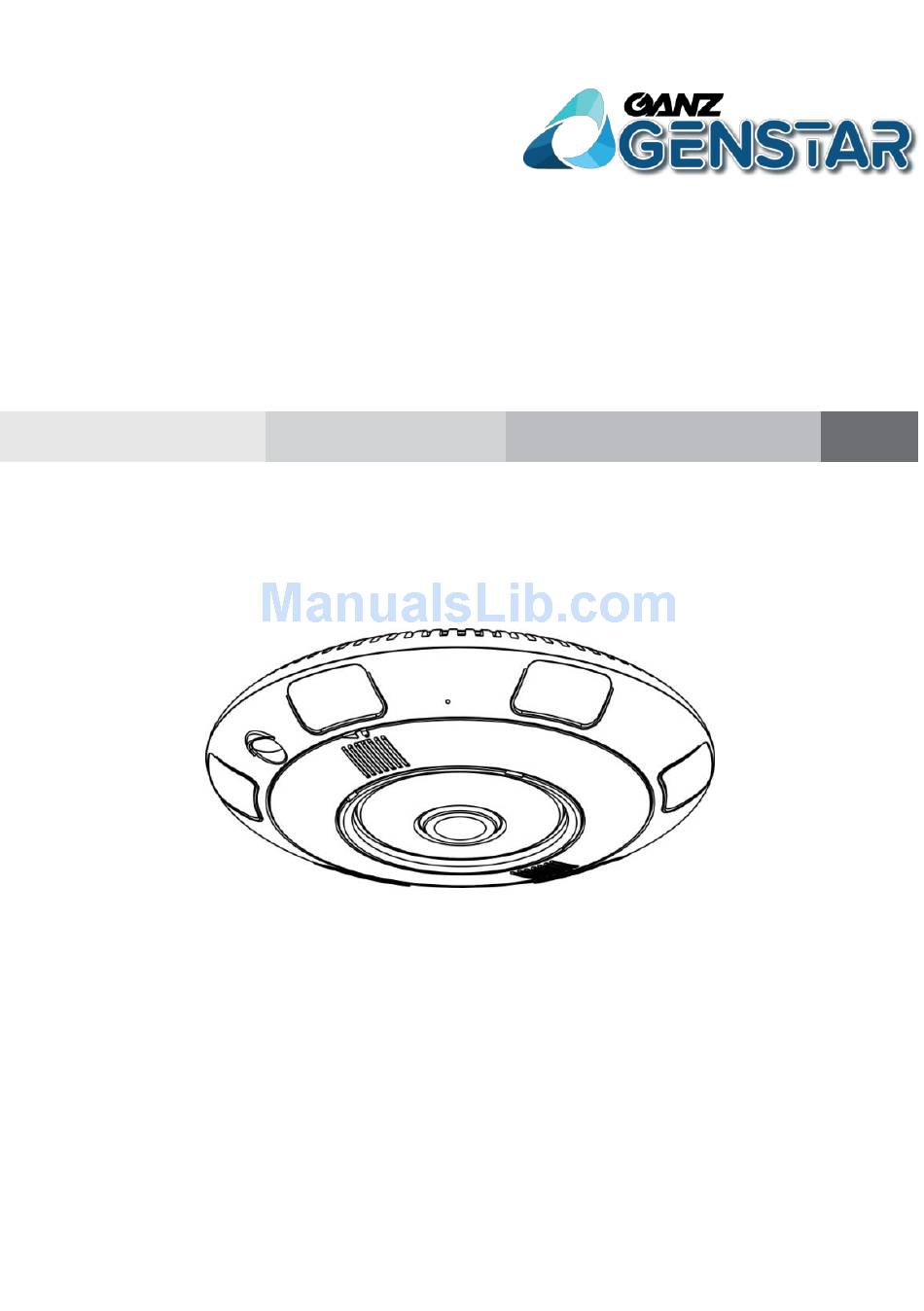

GANZ ZN8 Panorama Fisheye Network Camera

User Manual

Issue
V1.0
Date
2016-02-22

Advertisement

Table of Contents
loading

Related Manuals for Ganz ZN8

Summary of Contents for Ganz ZN8

  • Page 1: User Manual

    GANZ ZN8 Panorama Fisheye Network Camera User Manual Issue V1.0 Date 2016-02-22...

  • Page 3: Precautions

    Panorama Fisheye Network Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 4 Panorama Fisheye Network Camera Precautions User Manual  Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.  Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
  • Page 5 Panorama Fisheye Network Camera User Manual Precautions Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product.

  • Page 6: Table Of Contents

    Panorama Fisheye Network Camera Contents User Manual Contents Precautions ........................i 1 Overview ........................1 1.1 Front Panel ........................1 1.2 Multi-head Cable ......................2 1.3 Features .......................... 3 2 Device Dimensions ....................5 3 Device Installation ....................6 3.1 Installation Mode......................6 3.2 Installation Procedure .....................

  • Page 7: Overview

    Panorama Fisheye Network Camera User Manual 1 Overview Overview 1.1 Front Panel Błąd! Nie można odnaleźć źródła odwołania. shows the front panel of the Fisheye Network Camera. Figure 1-1 Front panel Table 1-1 describes the components on the front panel. Table 1-1 Components on the front panel Component Description...

  • Page 8: Multi-Head Cable

    Panorama Fisheye Network Camera 1 Overview User Manual Component Description Reset button Restores the camera to the factory settings by pressing and holding this button for more than five seconds. SD card slot Install an SD card. NOTE  Before install an SD card, verify the card not in write protection state.

  • Page 9: Features

    Panorama Fisheye Network Camera User Manual 1 Overview Table 1-2 Multi-head cable description Color Port Description Gray core Alarm output Alarm output terminal A (normal open) Purple core Alarm output terminal B (normal open) yellow core Alarm input Alarm input terminal positive terminal Orange core...
  • Page 10 Panorama Fisheye Network Camera 1 Overview User Manual  Support Point-to-Point protocol over Ethernet (PPPoE), Dynamic Host configuration protocol (DHCP), and Dynamic Domain Name System (DDNS) protocols.  Supports Power over Ethernet (PoE) that complies with the IEEE802.3af standard. The IP camera can connect to a switch or router supporting the PoE function to implement PoE.

  • Page 11: Device Dimensions

    Panorama Fisheye Network Camera User Manual 2 Device Dimensions Device Dimensions Figure 2-1 shows the fisheye camera dimensions. Figure 2-1 Dimensions (unit: mm) Issue V1.0 (2016-02-22)

  • Page 12: Device Installation

    Panorama Fisheye Network Camera 3 Device Installation User Manual Device Installation 3.1 Installation Mode You can install the fisheye network camera in the ceiling mount and wall mount mode depending on the actual installation scenario. This section describes how to install the camera in the ceiling mount mode.
  • Page 13 Panorama Fisheye Network Camera User Manual 3 Device Installation Figure 3-2 Remove the installation bracket Step 2 Fix the installation bracket 1. Fetch the positioning labeling from the accessory package, remove the release paper from the positioning labeling, and stick the labeling to the place where the camera is to be installed, as shown in Figure 3-3.
  • Page 14 Panorama Fisheye Network Camera 3 Device Installation User Manual Figure 3-3 Fix the installation bracket 2. Use a drill with a diameter of 5.5mm to drill four round holes with a depth of 40mm. Use a hammer or any other rigid object to nail the four white plastic buttons into the round holes.

  • Page 15: Optional Accessories

    Panorama Fisheye Network Camera User Manual 3 Device Installation Figure 3-4 Install the camera 3. Aim the two buckles of the decoration at the classis gap and push in, then rotate the decoration to no turning, as shown in Figure 3-4. The wall mount installation mode is similar to the ceiling mount installation mode, Therefore, wall mount installation details are outside the scope of this section.
  • Page 16 Panorama Fisheye Network Camera 3 Device Installation User Manual Element Image Description Wall mount Pendant mount Square type junction box Circular junction box Pole mount Corner mount Issue V1.0 (2016-02-22)

  • Page 17: Quick Configuration

    Panorama Fisheye Network Camera User Manual 4 Quick Configuration Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.1.168) in the address box, and press Enter.

  • Page 18: Main

    Panorama Fisheye Network Camera 4 Quick Configuration User Manual logout To logout of system, click Sign out in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main page layout On the main page, you can view Live video, playback and configuration, change the password, and log out of the system.

  • Page 19: Browsing Video

    Panorama Fisheye Network Camera User Manual 4 Quick Configuration Element Description When the device accepts an alarm signal, the alarm icon will display within 10s in the web management system. When the device encounters an exception, the fault icon Fault icon is displayed.
  • Page 20 Panorama Fisheye Network Camera 4 Quick Configuration User Manual Figure 4-3 Adding the a trusted site 2. In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Figure 4-4.

  • Page 21: Download The Right Control In The Internet Explorer

    Panorama Fisheye Network Camera User Manual 4 Quick Configuration The login page is display when the control is loaded. 4.3.2 Download the right control in the Internet Explorer Preparation  User uses the Internet Explorer browse video. Live video page pop-ups the message “clicks to play live video with ActiveX ...

  • Page 22: In The Google, Firefox, Or Safari Browsers Watch Live Video

    Panorama Fisheye Network Camera 4 Quick Configuration User Manual Figure 4-6 Download control tips Click the message ”click here to use Flash for live Video ”, jump to download ActiveX control interface, once downloading is complete, you can watch more fluent video screen.
  • Page 23 Panorama Fisheye Network Camera User Manual 4 Quick Configuration The Local Network page is displayed, as shown in Figure 4-7. Figure 4-7 Local Network page Step 2 Set the parameters according to Table 4-2. Table 4-2 Local network parameters Parameter Description Setting IP Protocol...
  • Page 24 Panorama Fisheye Network Camera 4 Quick Configuration User Manual Parameter Description Setting Subnet Mask Subnet mask of the network [Setting method] adapter. Enter a value manually. [Default value] 255.255.255.0 Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually.

  • Page 25: Fisheye Configuration

    Panorama Fisheye Network Camera User Manual 4 Quick Configuration 4.5 Fisheye Configuration Procedure Step 1 Choose Device Configuration > Fisheye. The Fisheye configuration page is displayed, as shown in Figure 4-8. Figure 4-8 Fisheye configuration page Step 2 Set the parameters according to Table 4-3. Table 4-3 Fisheye parameters Parameter Description...
  • Page 26 Panorama Fisheye Network Camera 4 Quick Configuration User Manual Parameter Description Setting Fisheye Mode Fisheye mode include: [Setting method]  Fisheye: Only one fisheye image; Select a value from the drop-down list  Fisheye +3_PTZ: One fisheye box. image and 3 PTZ districts. [Default value] ...

  • Page 27: Technical Specifications

    Panorama Fisheye Network Camera User Manual 5 Technical Specifications Technical Specifications Table 5-1 lists the technical specifications of the camera. Table 5-1 Technical specifications Items parameters Description Camera Image sensor 1/1.8" Exmor CMOS sensor function Video standard Configurable 3096(H) ×2080(V) Effective Pixels Digital zoom...
  • Page 28 Panorama Fisheye Network Camera 5 Technical Specifications User Manual Items parameters Description Focal length of 1.6mm the lens Auto Iris Angle of view Horizontal: 180°; Vertical: 180°; Surround view: 360° Infrared Infrared 10 m function distance External Network RJ-45, 10/100Base-T self-adaptive Ethernet port interface interface RS485...
  • Page 29 Panorama Fisheye Network Camera User Manual 5 Technical Specifications Items parameters Description protocol Network IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, protocol DNS, DDNS, PPPoE, SMTP Streaming Unicast mode Function Intelligent Support (optional) analysis Corridor mode Not supported Video buffering Two roles: administrator and common users. The User rights administrator can assign common users different rights.
  • Page 30 Panorama Fisheye Network Camera 5 Technical Specifications User Manual Items parameters Description Protection IP66 level Storage -30-80℃ environment Φ162mm×54mm Physic Dimension features Net weight 740g Issue V1.0 (2016-02-22)

  • Page 31: A Hazardous Substance Declaration

    Panorama Fisheye Network Camera User Manual Hazardous Substance Declaration Hazardous Substance or Element Hexavalent Polybrominated Component Plumbum Mercury Cadmium Polybrominated Chromium Diphenyl Ethers (Pb) (Hg) (Cd) Biphenyls (PBB) (Cr6+) (PBDE) Structural × ○ ○ ○ ○ ○ part Board/circuit × ○...
