Summary of Contents for Ganz ZN-D2024
-
Page 2: Warnings Before Installation
Warnings Before Installation Power off the IP Camera as Keep the IP Camera away soon as it is found smoking or from water. If the IP smelt unusual. Camera is wet, power off immediately. Contact your distributor when such Contact your distributor when such cases happen. - Page 3 Do not place the IP Camera on Do not touch the IP Camera unsteady surfaces. when it's lightening. Do not disassemble the IP Do not drop the IP Camera. Camera. Do not insert any object into the IP Camera, such as needles.
-
Page 4: Package Contents
Package Contents ZN-D2024 Power Adapter Alignment Sticker Software CD Warranty Card Quick Installation Guide Screws and I/O Connector... -
Page 5: Physical Description

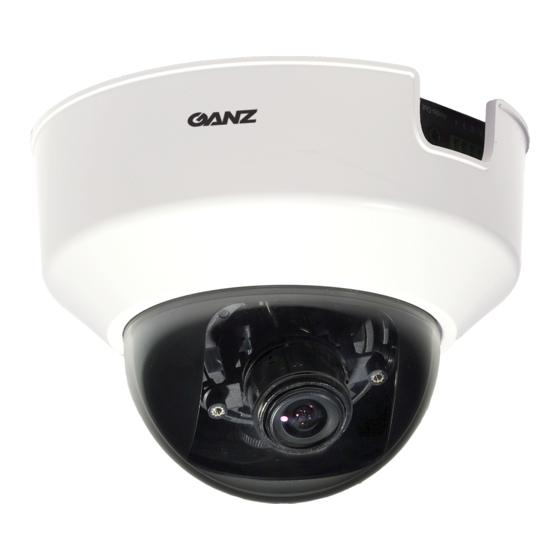

1 2 3 4 Audio Out Mic. In Ext. Int. General I/O terminal block Pan screw Audio out Keep a note of the MAC address before installing the camera. Drill holes Dome cover Indoor IP Dome Camera Model No:ZN-D2024-A RoHS 001CB8600052 Pat. 6,930,709... -
Page 6: Hardware Installation
Hardware Installation First, use the supplied screwdriver to detach the dome cover from the camera base. Then, follow the steps below to install the camera; either to a ceiling or to a wall. When mounting to a ceiling Through the two holes on each side of the camera base, insert the supplied two screws to corresponding holes and secure them with a screwdriver. -
Page 7: Network Deployment
Network Deployment General Connection (without PoE) 1. Connect the camera to a switch via a Ethernet cable. 2. Connect the supplied power cable from the camera to a power outlet. Ethernet switch... -
Page 8: Power Over Ethernet (Poe)
Power over Ethernet (PoE) When using a PoE-enabled switch The camera is PoE-compliant, allowing transmission of power and data via single Ethernet cable. See the following illustration to connect the camera to a PoE-enabled switch via Ethernet cable. PoE switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the camera and a non-PoE switch. -
Page 9: Assigning Ip Address
2. Run the "GANZ Installation Tool" program. GANZ Installation Tool 3. From the "GANZ Installation Tool" window, click on the MAC that matches the one you just noted from the product label of your device to connect the Internet Explorer to the IP Camera. - Page 10 The Internet Explorer Connects to the IP Camera For further setup, please check the user's manual on the software CD.
-
Page 11: Adjusting The Lens
Adjusting the Lens Based on the live image retrieved from the camera, adjust the camera lens by doing the following: To adjust the viewing angle 1. Loosen the pan screw and then turn the lens module left and right. Upon completion, tighten the pan screw. - Page 12 Completion Attach the dome cover to camera body and make sure all parts of the camera are securely installed. 625004100G...
