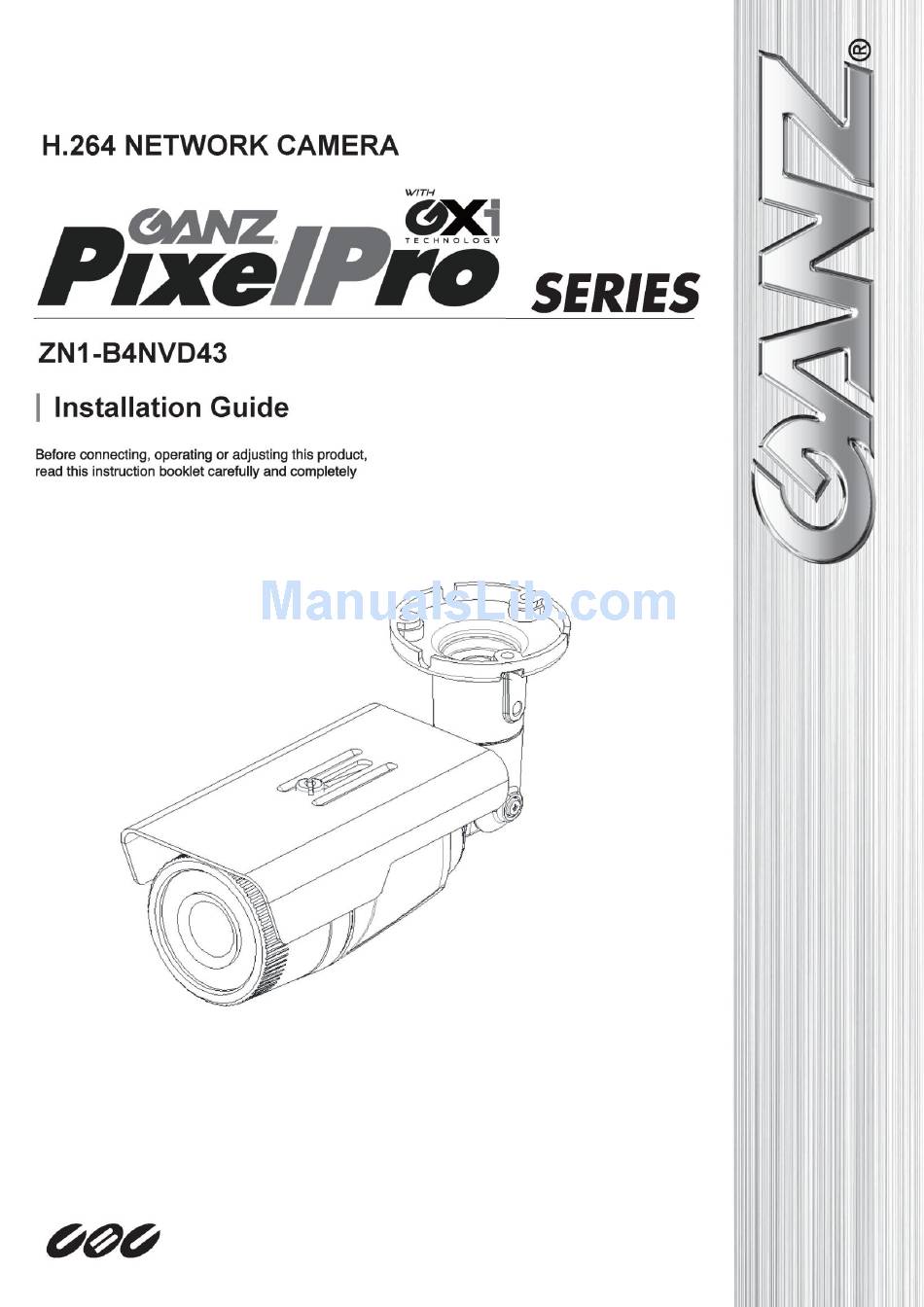

Ganz PIXELPRO SERIES Installation Manual

Hide thumbs Also See for PIXELPRO SERIES:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXELPRO SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ganz PIXELPRO SERIES

Summary of Contents for Ganz PIXELPRO SERIES

  • Page 2: Precaution

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide Precaution  Please read this manual carefully before installing the unit.  Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit.  Please do not install the camera in a place exposed to direct sunlight. ...

  • Page 3: Table Of Contents

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. CAMERA INSTALLATION ..................8 4.1. Installing a camera ....................8 4.2. Adjusting angle of the camera ................10 4.3.

  • Page 4: Features

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 1. FEATURES Camera  SONY EXMOR 1/2.9” 1080p CMOS Image Sensor  True Day / Night  DC Auto Iris Lens   Embedded IR Illuminator  Weather Proof (IP66) Video  H.264 Baseline, Main, High profile(MPEG-4 Part 10/AVC), MJEPG(Motion JPEG) ...

  • Page 5: Package Contents

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera DC Power Adaptor Universal Plugs Screws and anchor blocks Quick Installation Guide Hex Wrench Driver Silicon Waterproof Band Video Output Cable socket Installation Template The contents above are subject to change without prior notice.

  • Page 6: Part Names

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 3. PART NAMES ① ⑧ ⑩ ⑨ ⑤ ⑦ SD Card ⑥ ④ Reset ② Video Out ③ ② PAL/NTSC * Models herein and their appearance are subject to change without any prior notice. ①Sunshield Position the sunshield to prevent direct sunshine.
  • Page 7 PixelPro GXi Series ZN1-B4NVD43 Installation Guide ⑥ Zoom Puller Use the puller to manually determine appropriate field of view of the camera. Refer to “4.3. Adjusting Zoom and Focus” for more details. ⑦ microSD slot Supports up to 64GB. Recommend Class 4 and higher for HD recordings. ⑧...

  • Page 8: Camera Installation

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 4. CAMERA INSTALLATION 4.1. Installing a camera 1) Place the installation template (outline shown on the next page) provided in the package on the desired installation surface. 2) Drill holes in correct positions based on the template paper, and insert anchor blocks into the holes.

  • Page 9: Installation Template

    ation template PixelPro GXi Series ZN1-B4NVD43 Installation Guide Installation Template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package Caution separately. 03-2014-A...

  • Page 10: Adjusting Angle Of The Camera

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 4.2. Adjusting angle of the camera 1. Adjust the camera to the desired angle by unscrewing the joints referring to the following pictures. Adjust the joint to install Tilting adjustment Panning adjustment the camera on the wall. 4.3.

  • Page 11: Setting The Image Attribute

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 4.4. Setting the Image Attribute Through the camera’s webpage, users can configure image settings. The menu of image attribute is available under Video Appearance menu in Setup > Video & Audio > Camera. The following features can be adjusted: Brightness, Contrast, Saturation, Sharpness and Orientation For more detailed information, refer to the provided “PixelPro GXi series Web Page User's...

  • Page 12: Connections

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 5. CONNECTIONS GREEN : DI WHITE : DI COM ORNAGE : DO ①&② YELLOW : DO COM ① ③ ④ (not included) 12VDC 03-2014-A...
  • Page 13 PixelPro GXi Series ZN1-B4NVD43 Installation Guide ① Sensor (DI) connection Sensor (DI) can be connected to either a voltage type sensor or a relay type sensor as the following figures. The interface type can be controlled by web user interface. Refer to the provided “PixelPro GXi series Web Page User's Manual”...
  • Page 14 PixelPro GXi Series ZN1-B4NVD43 Installation Guide ③ LAN connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Use the Ethernet cable (RJ45) to connect the device to a hub or a router in the network. Refer to “Appendix (B). Power over Ethernet”...

  • Page 15: Configuration

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device.

  • Page 16: Custom Ip Environment

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area;...

  • Page 17: View Video On Web Page

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click “Install” to proceed. When Setup installation pop-up window appears, click “Install”...

  • Page 18: View Video Using Ipadmin Tool

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 6.2.2. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. 2.

  • Page 19: Reset

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 6.3. Reset Perform the following procedures to reset your device: Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings.

  • Page 20: Safe Mode

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default.
  • Page 21 PixelPro GXi Series ZN1-B4NVD43 Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.

  • Page 22: Appendix (A): Specifications

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.9” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. ELECTRICAL Color: 1.0 lux, BW: 0 lux (IR LED On) Illumination AGC Control Auto...

  • Page 23: Electrical Characteristics

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide Electrical Characteristics Power Source 12VDC / PoE Power Consumption Max. 6W @ 12VDC Video Output 1 Vp-p, 75Ω, Composite Audio Input Audio Output Max 50mA@5VDC, TTL level 1.5V threshold Max 50mA@24VDC On-state resistance: 50 Ω (max continuous) Environment Condition Operating Range Operating Temperature...

  • Page 24: Appendix (B): Power Over Ethernet

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The IEEE 802.3af-2003 standard allows up to 15.4 W of power the device.

  • Page 25: Appendix (C): Dimensions

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 03-2014-A...

  • Page 26: Appendix (D): Hexadecimal-Decimal Conversion Table

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 03-2014-A...

  • Page 27: Revision History

    PixelPro GXi Series ZN1-B4NVD43 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 09-2013-A 09/04/2013 First release version 09-2013-B 09/27/2013 Added a caution for leak prevention on 4. Installation 03-2014-A 03/31/2014 Correct explanation for PoE 03-2014-A...
