Ganz ZN8 User Manual

Bullet network camera
Hide thumbs Also See for ZN8:
Table of Contents

Advertisement

Quick Links

See also: User Manual

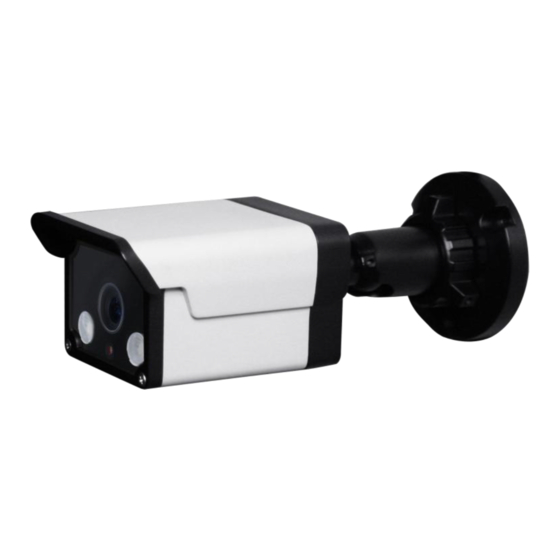

GANZ ZN8 IR Bullet Network Camera

User Manual

Issue
V1.0
Date
2016-02-22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZN8 and is the answer not in the manual?

Questions and answers

Related Manuals for Ganz ZN8

Summary of Contents for Ganz ZN8

  • Page 1: User Manual

    GANZ ZN8 IR Bullet Network Camera User Manual Issue V1.0 Date 2016-02-22...

  • Page 3: Precautions

    IR Bullet Network Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 4 IR Bullet Network Camera Precautions User Manual  Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.  Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
  • Page 5 IR Bullet Network Camera User Manual Precautions Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product.

  • Page 6: Table Of Contents

    IR Bullet Network Camera Contents User Manual Contents Precautions ........................i 1 Overview ........................1 1.1 Hardware Connection ..................... 1 1.2 Features .......................... 2 2 Device Dimensions ....................4 3 Device Installation ....................5 3.1 Installation Mode......................5 3.2 Installation Procedure ..................... 5 4 Quick Configuration ....................

  • Page 7: Overview

    IR Bullet Network Camera User Manual 1 Overview Overview 1.1 Hardware Connection Figure 1-1 shows the multi-head cable used by an IR Bullet Network Camera. Table 1- 1 describes the multi-head cable. Figure 1-1 Multi-head cable Table 1-1 Multi-head cable description Function Description Network...

  • Page 8: Features

    IR Bullet Network Camera 1 Overview User Manual Figure 1-2 Real panel Table 1-2 Components on the rear panel Component Description Reset button Restores the camera to the factory settings by pressing and holding this button for more than five seconds. 1.2 Features Network Features ...
  • Page 9 IR Bullet Network Camera User Manual 1 Overview Photographic Experts Group（MJPEG）or H.264 standard. The frame rate and image quality can be configured I/O Features  Provides a 10/100 Mbits/s self-adaptive Ethernet port. Other Features  Support the heartbeat function that allows the management host to learn the running status of the IP camera in real time.

  • Page 10: Device Dimensions

    IR Bullet Network Camera 2 Device Dimensions User Manual Device Dimensions Figure 2-1 shows the camera dimensions. Figure 2-1 Dimensions (unit: mm) Issue V1.0 (2016-02-22)

  • Page 11: Device Installation

    IR Bullet Network Camera User Manual 3 Device Installation Device Installation 3.1 Installation Mode The IR Bullet Camera can be installed on the ceiling or wall. You can select an installation position based on your requirement. The following installation procedure assumes that the IPC is installed on the wall.
  • Page 12 IR Bullet Network Camera 3 Device Installation User Manual Figure 3-2 Installing the expansion particles Step 3 Mount the camera on the wall and fasten the screws, as shown in Figure 3-3. Figure 3-3 Fixing the camera Step 4 Connect the multi-connector cable. Step 5 Loosen the bracket locking ring to adjust the position so that the camera faces the monitored area, then tighten the bracket locking ring and fix the locking screw, as...
  • Page 13 IR Bullet Network Camera User Manual 3 Device Installation Figure 3-4 Adjusting the monitoring direction Issue V1.0 (2016-02-22)

  • Page 14: Quick Configuration

    IR Bullet Network Camera 4 Quick Configuration User Manual Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.1.168) in the address box, and press Enter.

  • Page 15: Main

    IR Bullet Network Camera User Manual 4 Quick Configuration logout To logout of system, click Sign out in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main page layout On the main page, you can view Live video, playback and configuration, change the password, and log out of the system.

  • Page 16: Browsing Video

    IR Bullet Network Camera 4 Quick Configuration User Manual Element Description will display within 10s in the web management system. When the device encounters an exception, the fault icon Fault icon is displayed. You can click to view the fault information. Change You can click to change the password.
  • Page 17 IR Bullet Network Camera User Manual 4 Quick Configuration Figure 4-3 Adding the a trusted site 2. In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Figure 4-4.

  • Page 18: Download The Right Control In The Internet Explorer

    IR Bullet Network Camera 4 Quick Configuration User Manual The login page is display when the control is loaded. 4.3.1 Download the right control in the Internet Explorer Preparation  User uses the Internet Explorer browse video. Live video page pop-ups the message “clicks to play live video with ActiveX ...

  • Page 19: In The Google, Firefox, Or Safari Browsers Watch Live Video

    IR Bullet Network Camera User Manual 4 Quick Configuration Figure 4-6 Download control tips Click the message ”click here to use Flash for live Video ”, jump to download ActiveX control interface, once downloading is complete, you can watch more fluent video screen.
  • Page 20 IR Bullet Network Camera 4 Quick Configuration User Manual Figure 4-7 Local Network page Step 2 Set the parameters according to Table 4-2. Table 4-2 Local network parameters Parameter Description Setting IP Protocol IPv4 is the IP protocol that uses [Setting method] an address length of 32 bits.
  • Page 21 IR Bullet Network Camera User Manual 4 Quick Configuration Parameter Description Setting Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually. through a gateway. [Default value] 192.168.1.1 Preferred DNS IP address of a DNS server. [Setting method] Server Enter a value manually.

  • Page 22: Technical Specifications

    IR Bullet Network Camera 5 Technical Specifications User Manual Technical Specifications Table 5-1 lists the technical specifications of the camera. Table 5-1 Technical specifications Items parameters Description Camera Image sensor 1/3" CMOS sensor function Video standard Configurable 2688(H) ×1512(V) Effective Pixels Digital zoom Support...
  • Page 23 IR Bullet Network Camera User Manual 5 Technical Specifications Items parameters Description Lens Lens type Prime lens, M12 interface Focal length of 3.6mm the lens Iris Fixed Iris Infrared Infrared 20~30 m function distance External Network RJ-45, 10/100Base-T self-adaptive Ethernet port interface interface RS485...
  • Page 24 IR Bullet Network Camera 5 Technical Specifications User Manual Items parameters Description loudspeaker Embedded Not supported microphone Network Network IPv4/ Ipv6, RTSP/RTP/RTCP, TCP/UDP, HTTPS, protocol DHCP, DNS, DDNS, PPPoE, SMTP Streaming Unicast mode Number of users in concurrent access Function Corridor mode Support Defogging Support...
  • Page 25 IR Bullet Network Camera User Manual 5 Technical Specifications Items parameters Description Environ Heating Support mental function features Power supply DC12V(-15%-+10% )/ PoE (802.3af) 2.2W(IR LED OFF; Heater OFF) Power 6.0W(IR LED ON; Heater OFF) consumption 8.0W(IR LED ON; Heater ON) Operating -25℃–+55℃...

  • Page 26: A Hazardous Substance Declaration

    IR Bullet Network Camera User Manual Hazardous Substance Declaration Hazardous Substance or Element Hexavalent Polybrominated Component Plumbum Mercury Cadmium Polybrominated Chromium Diphenyl Ethers (Pb) (Hg) (Cd) Biphenyls (PBB) (Cr6+) (PBDE) Structural × ○ ○ ○ ○ ○ part Board/circuit × ○...
