Creative Play CF106 Installation Instructions Manual

Mersey climbing frame
Hide thumbs

Advertisement

Table of Contents

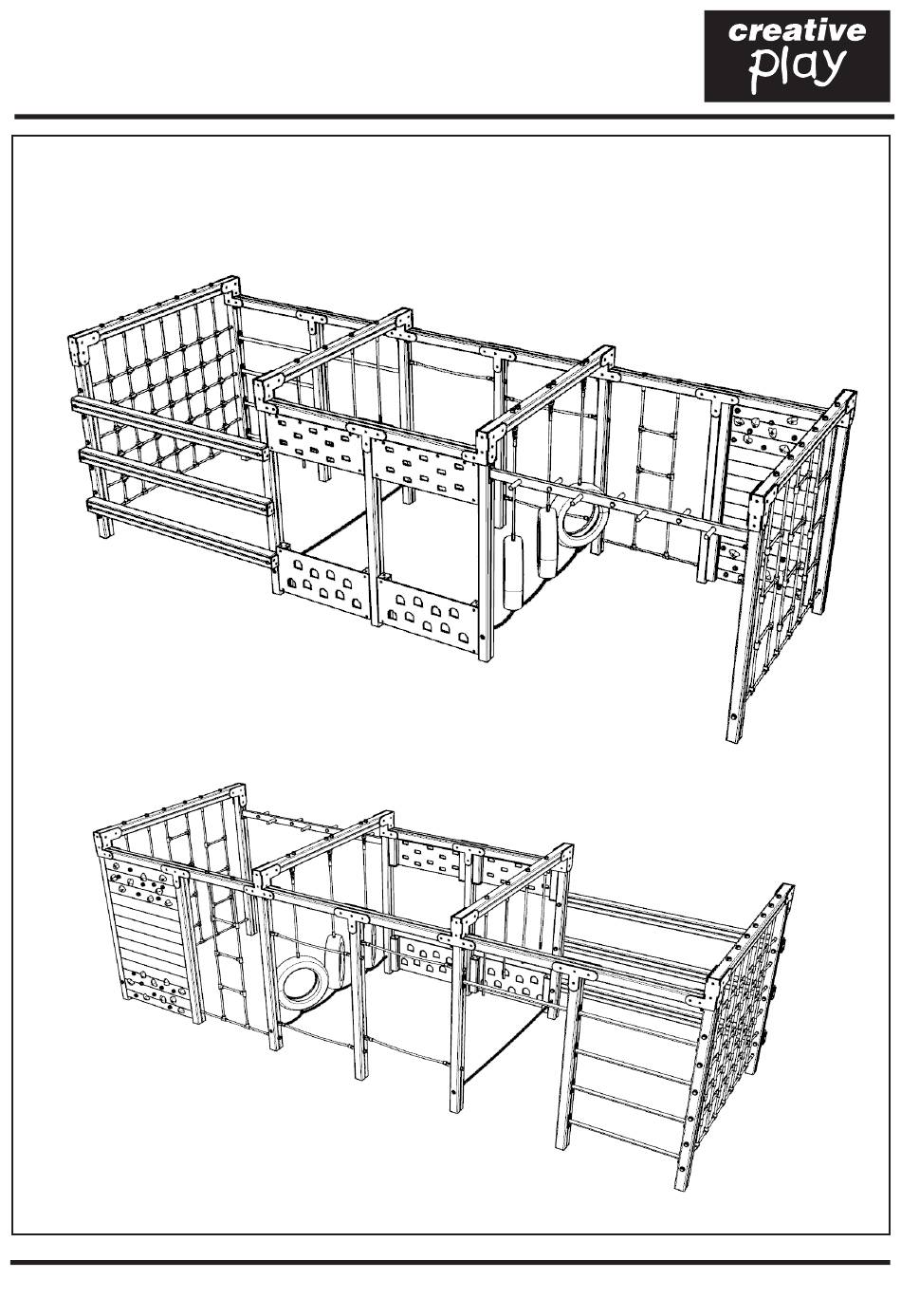

CF106 - MERSEY CLIMBING
Installation Instructions
FRAME:
REF: CF106 MERSEY CLIMBING FRAME
pg 1 of 23
18.03.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creative Play CF106

Summary of Contents for Creative Play CF106

  • Page 1 CF106 - MERSEY CLIMBING Installation Instructions FRAME: REF: CF106 MERSEY CLIMBING FRAME pg 1 of 23 18.03.2019...

  • Page 2: Parts Required

    CF106 CF106 CF106 CF106 CF106 CF106 CF106 CF106 *PLEASE NOTE CF106Hd INCLUDES THE SWING HANGERS ALL H TIMBERS ARE PRE-ASSEMBLED WITH PLAYTEC L’s / T’s (AS SHOWN ABOVE) HORIZONTAL TIMBERS REF: CF106 MERSEY CLIMBING FRAME pg 2 of 23 18.03.2019...
  • Page 3 PARTS REQUIRED TIMBER CLIMBING WALL UPPER TRAVERSE PANEL LOWER TRAVERSE PANEL CARGO NET TRIPLE LADDER SINGLE LADDER OVERHEAD LADDER TYRE INDIVIDUAL ROPE REF: CF106 MERSEY CLIMBING FRAME pg 3 of 23 18.03.2019...
  • Page 4 SWINGING ROPE SWINGING ROPE CHAIN STANDARD BAR (1065MM) 420MM TYRE CHAIN (EYEBOLT) 690MM TYRE CHAIN PLAYTEC - BACK PLAYTEC L - RIGHT PLAYTEC L - LEFT PLAYTEC - SPECIAL T REF: CF106 MERSEY CLIMBING FRAME pg 4 of 23 18.03.2019...
  • Page 5 PARTS REQUIRED PLAYTEC - INSIDE T PLAYTEC - SHORT L (LEFT) PLAYTEC - SHORT L (RIGHT) x5 (PAIRS) x120 PLAYTEC - UNDER BRACKETS 97.M8X80CSK 97.M8X180CSK 274.M12X230 656.M12 102003-01 - M12 REF: CF106 MERSEY CLIMBING FRAME pg 5 of 23 18.03.2019...
  • Page 6 PARTS REQUIRED M12 SOCKET NUT (50MM) 656.M10 102001-0 - M8 CONSISTS OF SHACKLE / BOLT / NYLOC / CAP 349.742.D-SHACKLE ‘SET’ (inc 4 spares) REF: CF106 MERSEY CLIMBING FRAME pg 6 of 23 18.03.2019...

  • Page 7: Foundation Details

    FOUNDATION DETAILS CONCRETE POST SOIL REF: CF106 MERSEY CLIMBING FRAME pg 7 of 23 18.03.2019...

  • Page 8: Surfacing Details

    SURFACING DETAILS = MINIMUM SPACE = OVERALL AREA REF: CF106 MERSEY CLIMBING FRAME pg 8 of 23 18.03.2019...
  • Page 9 INSTALLATION INSTRUCTIONS POSITION THE UPRIGHT TIMBERS FOLLOWING FOUNDATION DETAILS CF106 CF106 CF106 CF106 CF106 CF106 CF106 CF106 CF106 CF106 CF106 CF106 ATTACH TIMBER Ha USING 8X80 WOOD SCREWS CF106 REF: CF106 MERSEY CLIMBING FRAME pg 9 of 23 18.03.2019...
  • Page 10 TAKE CARE THAT SCREWS DO NOT ‘CROSS’ NOTES: Ha IS PRE-ASSEMBLED WITH VARIOUS PLAYTEC PARTS ATTACH PLAYTEC - BACK, SHORT L (RIGHT) & L (LEFT) USING 8X80 WOOD SCREWS, ENSURE COUNTERSINKS ARE ON THE OUTSIDE REF: CF106 MERSEY CLIMBING FRAME pg 10 of 23 18.03.2019...
  • Page 11 INSTALLATION INSTRUCTIONS ATTACH TIMBER Hb USING 8X80 WOOD SCREWS NOTES: PLEASE ENSURE THE Hb IS FURTHER ATTACH TO THE Ha PLAYTEC BRACKET ATTACH TIMBER Hc USING 8X80 WOOD SCREWS REF: CF106 MERSEY CLIMBING FRAME pg 11 of 23 18.03.2019...
  • Page 12 INSTALLATION INSTRUCTIONS ATTACH PLAYTEC - L (RIGHT), SHORT L (LEFT), INSIDE T & SPECIAL T USING 8X80 WOOD SCREWS ATTACH THE SECOND Hb TIMBER USING 8X80 WOOD SCREWS REF: CF106 MERSEY CLIMBING FRAME pg 12 of 23 18.03.2019...
  • Page 13 INSTALLATION INSTRUCTIONS ATTACH THE SECOND Hb TIMBER USING 8X80 WOOD SCREWS ATTACH TIMBER Hd USING 8X80 WOOD SCREWS REF: CF106 MERSEY CLIMBING FRAME pg 13 of 23 18.03.2019...
  • Page 14 INSTALLATION INSTRUCTIONS ATTACH PLAYTEC - L (LEFT), SHORT L (RIGHT), SHORT T & SPECIAL T USING 8X80 WOOD SCREWS ATTACH TIMBER He USING 8X80 WOOD SCREWS REF: CF106 MERSEY CLIMBING FRAME pg 14 of 23 18.03.2019...
  • Page 15 USING 8X80 WOOD SCREWS, ASSEMBLE UNDERBRACKETS AS SHOWN TO RIGHT ATTACH UPPER PLAYTEC CLIMBING PANELS USING 8X180 WOOD SCREWS (2 SCREWS PER TIMBER SPACED EQUALLY) NOTES: TAKE CARE THAT SCREWS DO NOT ‘CROSS’ IN CENTRAL TIMBERS REF: CF106 MERSEY CLIMBING FRAME pg 15 of 23 18.03.2019...
  • Page 16 TAKE CARE THAT SCREWS DO NOT ‘CROSS’ IN CENTRAL TIMBERS PANELS ARE POSITIONED 55MM FROM GROUND ATTACH LOG CLIMBER TIMBERS Hg USING 274.M12X230 / 656.M12 / 102003-01 NOTES: POSITION COVERED ENDS ON INSIDE OF FRAME REF: CF106 MERSEY CLIMBING FRAME pg 16 of 23 18.03.2019...
  • Page 17 USING 8X80 WOOD SCREWS 10MM NOTES: POSITION TOP OF LADDER FIXING 10MM FROM BRACKET ATTACH STANDARD BARS USING 8X80 WOOD SCREWS/ 102003-01 NOTES: SPACE BARS ACCORDING TO DIMENSIONS (SEE NEXT STEP) REF: CF106 MERSEY CLIMBING FRAME pg 17 of 23 18.03.2019...
  • Page 18 INSTALLATION INSTRUCTIONS PLEASE ENSURE SPACING BETWEEN BARS IS AS SHOWN BELOW ATTACH INDIVIDUAL ROPES USING 656.M10 / 102003-01 REF: CF106 MERSEY CLIMBING FRAME pg 18 of 23 18.03.2019...
  • Page 19 INSTALLATION INSTRUCTIONS ATTACH CARGO NET USING 656.M12 / 102003-01 ATTACH SWINGING ROPES USING 656.M12 / 102003-01 REF: CF106 MERSEY CLIMBING FRAME pg 19 of 23 18.03.2019...
  • Page 20 USING M12 X 50MM SOCKET NUT, D - SHACKLE AND EYEBOLT SHOULD BE PRE-ATTACHED TO CHAIN ATTACH SINGLE ROPE LADDER USING 656.M12 / 102003-01 & M12 X 50MM SOCKET NUT REF: CF106 MERSEY CLIMBING FRAME pg 20 of 23 18.03.2019...

  • Page 21: Installation Instructions

    USING M12 X 50MM SOCKET NUT ON EYEBOLT CHAINS & D- SHACKLE SETS ON MIDDLE CHAINS NOTES: REPEAT EYEBOLT CHAIN ON BOTH SIDES ATTACH MIDDLE CHAINS TO TYRES AS SHOWN ENSURE CHAIN IS POSITION ON INSIDE OF D - RING REMOVE LINKS IF NECESSARY REF: CF106 MERSEY CLIMBING FRAME pg 21 of 23 18.03.2019...
  • Page 22 USING 8X180 WOOD SCREWS SPACED EQUALLY AS SHOWN NOTES: ENSURE OUTER WALL IS FLUSH WITH OUTER TIMBER BUTT WALL TO TOP OF HORIZONTAL TIMBER ATTACH TRIPLE LADDERS USING 656.M12 / 102003-01 REF: CF106 MERSEY CLIMBING FRAME pg 22 of 23 18.03.2019...

  • Page 23: Additional Dimensions

    ADDITIONAL DIMENSIONS REF: CF106 MERSEY CLIMBING FRAME pg 23 of 23 18.03.2019...
