4.
Apply nuts to the four screws and secure the assembly to the panel (see Figure 19 and Figure 20). Use a feeler
gauge behind the gasket, check the compression, and tighten the nuts until the gap is 0.032" ±0.002".
Now mount the MTS6 using steps 1-6 in Basic Mounting on page 7. Re-verify the adapter plate gap after the MTS6 is
mounted to the adapter plate. The installation should appear similar to Figure 21 and Figure 22.
Moisture Target Series 6 User's Manual

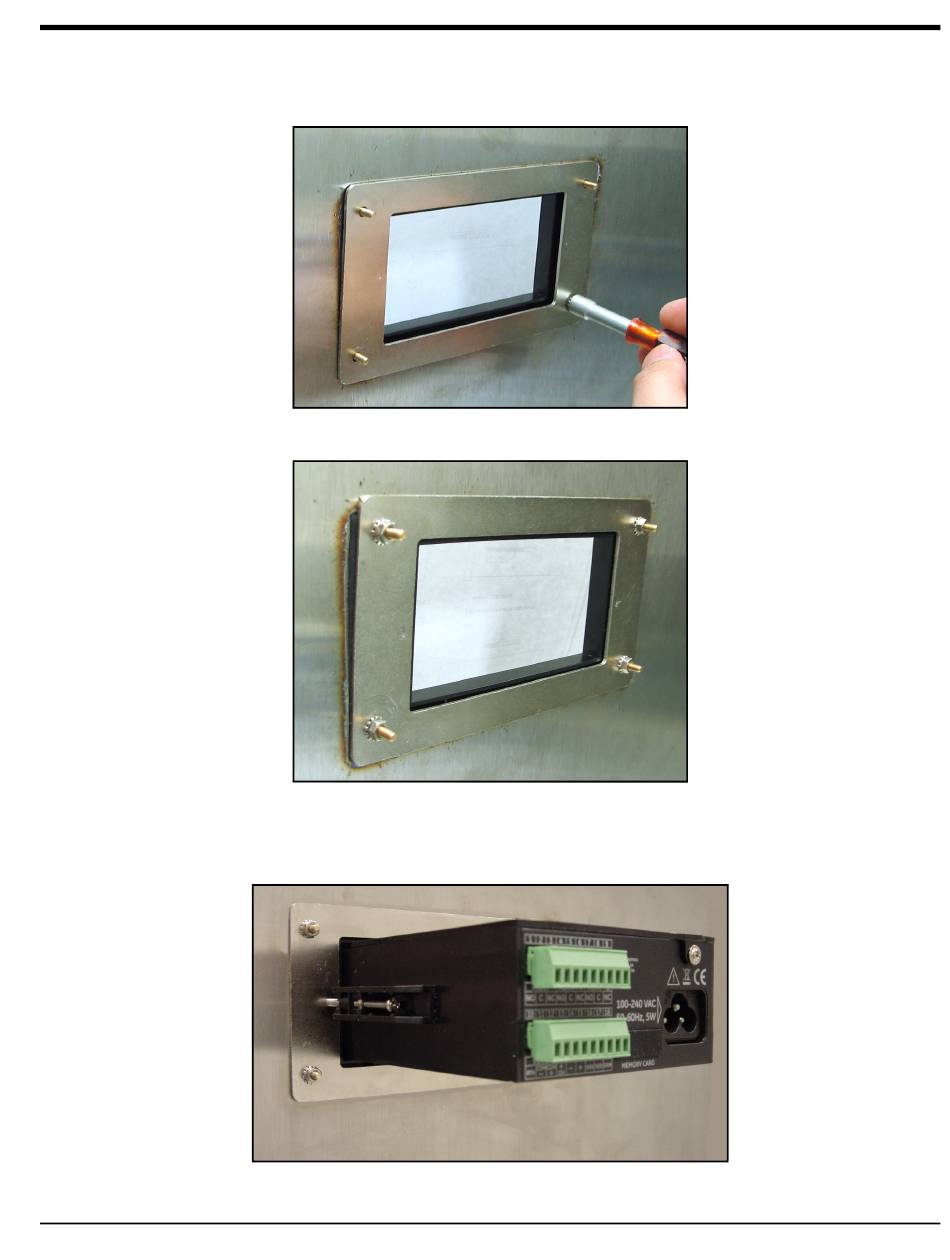

Figure 19: Securing the Assembly to the Panel
Figure 20: Plate Assembly Mounting Complete
Figure 21: MTS6 Installation with Adapter Plate - Rear
Chapter 2. Installation
11
