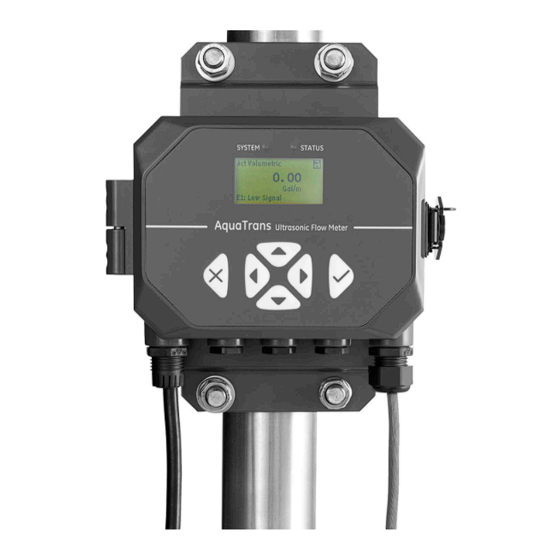

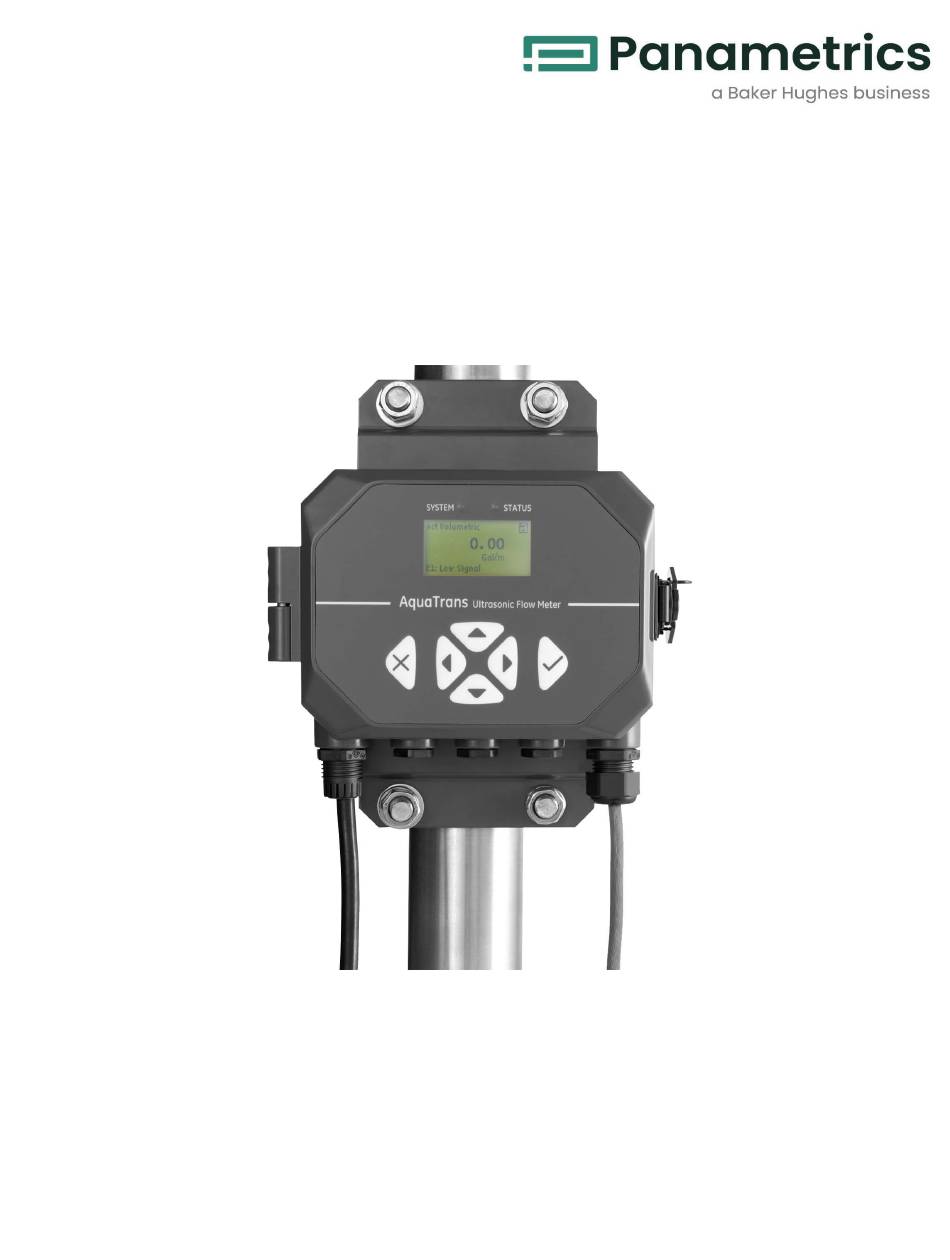

AquaTrans™ AT600
User's manual
BH001C11 Rev. F
panametrics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panametrics AquaTrans AT600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baker Hughes Panametrics AquaTrans AT600

Summary of Contents for Baker Hughes Panametrics AquaTrans AT600

  • Page 1 AquaTrans™ AT600 User’s manual BH001C11 Rev. F panametrics.com...
  • Page 3 Sep 2023 panametrics.com Copyright 2023 Baker Hughes company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third-party product and company names are trademarks of their respective holders.
  • Page 4 [no content intended for this page]...
  • Page 5 Preface Services Panametrics provides customers with an experienced staff of customer support personnel ready to respond to technical inquiries, as well as other remote and on-site support needs. To complement our broad portfolio of industry-leading solutions, we offer several types of flexible and scalable support services including: Training, Product Repairs, Service Agreements and more.
  • Page 6 Preface Working Area WARNING! Auxiliary equipment may have both manual and automatic modes of operation. As equipment can move suddenly and without warning, do not enter the work cell of this equipment during automatic operation, and do not enter the work envelope of this equipment during manual operation.

  • Page 7: Table Of Contents

    Contents Chapter 1. General installation instructions Introduction ........................1 Theory of operation .
  • Page 8 Contents 4.6.1.2 Setting the base value and the full value ..............42 4.6.1.3 Calibrate the output.
  • Page 9 Contents HART......................... . . 86 6.2.1 Device Identification .
  • Page 10 Contents [no content intended for this page] viii AquaTrans™ AT600 User’s manual...

  • Page 11: Chapter 1. General Installation Instructions

    Chapter 1. General installation instructions Chapter 1. General installation instructions Introduction Thank you for purchasing the AT600 ultrasonic flow meter. The AT600 is a clamp-on ultrasonic flow meter for the measurement of liquid products. It is designed for the industrial applications, including water, wastewater, steel, campus energy, and others.

  • Page 12: Theory Of Operation

    Chapter 1. General installation instructions Theory of operation The AT600 flow meter uses a procedure called transit-time flow measurement. In this method, two transducers, which are in acoustic communication with each other, serve as both ultrasonic signal generators and receivers. That is, the second transducer can receive ultrasonic signals transmitted by the first transducer and vice versa.

  • Page 13: Safety Guidelines

    Chapter 1. General installation instructions Safety guidelines To ensure safe and reliable operation of the AT600, the system must be installed in accordance with the guidelines discussed in this manual. This chapter includes the following topics: • dasda • “Unpacking the AT600 system” on page 4 •...

  • Page 14: Unpacking The At600 System

    Chapter 1. General installation instructions Unpacking the AT600 system Before removing the AT600 system from the crate, please inspect the flow meter. Before discarding any of the packing materials, account for all components and documentation listed on the packing slip. The discarding of an important item along with the packing materials is all too common.

  • Page 15: Installing The Electronics Enclosure

    Chapter 1. General installation instructions Installing the electronics enclosure The AT600 electronics is housed in a powder-coated, aluminum, NEMA type 4X/IP67 enclosure suitable for indoor or outdoor use. See figure 5 below for the mounting dimensions and weight of the AT600 electronics enclosure. M16 GLAND x3 M20 GLAND x2 63.50...

  • Page 16: Calculating The Transducer Spacing

    Chapter 1. General installation instructions The installation base of AT600 electronics enclosure can be rotated 90° to keep a horizontal view of the user interface in any mounting orientation. See figure 6 below for drawings of the AT600 mounting base. Horizontal Vertical Figure 6: The AT600 mounting base...

  • Page 17: Choosing A Clamp-On Fixture/Transducer Location

    Chapter 1. General installation instructions Choosing a clamp-on fixture/transducer location For a given fluid and pipe, the accuracy of AT600 depends on the location and alignment of the transducers. In addition to accessibility, when choosing a transducer location, follow these guidelines: •...

  • Page 18: Mounting The Clamp-On Fixture And Transducer System

    Chapter 1. General installation instructions Mounting the clamp-on fixture and transducer system The AT600 transducer system includes one or two clampon fixtures, two transducers and one transducer cable. One clamp-on fixture is shipped with both transducers installed and the transducer cable connected to the transducers. This fixture is the default setup for most applications.

  • Page 19: Transducer Frequency

    Chapter 1. General installation instructions Table 2: AT600 clamp-on fixture installation Pipe size range Transducer Number of Transducer Number of frequency traverses spacing fixtures inches (MHz) (mm) 50 to 100 2 to 4 32 to 250 100 to 150 4 to 6 32 to 250 50 to 150 2 to 6...
  • Page 20 Chapter 1. General installation instructions [no content intended for this page] AquaTrans™ AT600 User’s manual...

  • Page 21: Chapter 2. Clamp-On Fixture And Transducer Installation

    Chapter 2. Clamp-on fixture and transducer installation Chapter 2. Clamp-on fixture and transducer installation Installing an AT600 clamp-on fixture and transducer system The instructions in this section are for installations using the AT600 clamp-on fixture only. For installations using other clamp-on fixtures, see “Installing a CF-ES clamp-on fixture and transducer system”...
  • Page 22 Chapter 2. Clamp-on fixture and transducer installation Set the two transducers at the spacing calculated by the meter and tighten them in place, as follows: Loosen both transducers and rotate the fixture so that the transducers are in view (see figure 12 below). Transducers Hand wheel Figure 12: Transducers rotated into view...

  • Page 23: Transducer Spacing = 320 To 940 Mm, Traverses = 2, Fixtures = 2

    Chapter 2. Clamp-on fixture and transducer installation 2.1.2 Transducer spacing = 320 to 940 mm, traverses = 2, fixtures = 2 For a two traverse installation with a calculated transducer spacing of 320 to 940 mm for a 1 MHz or 0.5 MHz transducer, two fixtures are installed on the same side of the pipe.

  • Page 24: Transducer Spacing = 0 To 250 Mm Or 0 To 320 Mm, Traverses = 1, Fixtures = 2

    Chapter 2. Clamp-on fixture and transducer installation See figure 17 and figure 18 below for examples of a completed installation in the following situations: Note: In this drawing, LSL is the lower specified limit and USL is the upper specified limit for each fixture. For a calculated transducer spacing of 320 to 620 mm for a 1 MHz or 0.5 MHz transducer, locate the upstream transducer at the USL1 position on the first fixture.
  • Page 25 Chapter 2. Clamp-on fixture and transducer installation Band tape +1/4 circumference -1/4 circumference Figure 19: One traverse installation with two fixtures Set the spacing between the two transducers to the value calculated by the meter as follows: Loosen the fixture rails and rotate the rails so the transducers are in view. Remove the upstream transducer from the first fixture (see figure 20 below).

  • Page 26: Transducer Spacing >320 Mm, Traverses = 1, Fixtures = 2

    Chapter 2. Clamp-on fixture and transducer installation 2.1.4 Transducer spacing >320 mm, traverses = 1, fixtures = 2 For a one traverse installation with a calculated transducer spacing of >320 mm for a 1 MHz or 0.5 MHz transducer, two clamp-on fixtures are installed on opposite sides of the pipe.

  • Page 27: Installing A General Clamping Fixture And Transducer System

    Chapter 2. Clamp-on fixture and transducer installation Installing a general clamping fixture and transducer system Both the C-RS and C-PT transducers are mounted on the pipe with the Panametrics general clamping fixture (GCF). For detailed installation instructions refer to following: •...
  • Page 28 Chapter 2. Clamp-on fixture and transducer installation [no content intended for this page] AquaTrans™ AT600 User’s manual...

  • Page 29: Chapter 3. Wiring The At600 Electronics

    Chapter 3. Wiring the AT600 electronics Chapter 3. Wiring the AT600 electronics Wiring diagram Attention European Customers! To meet CE Mark requirements, all cables must be installed as described in “Wiring cable specifications and requirements” on page 144. This section includes instructions for making all the necessary electrical connections to the AT600 flow meter. Refer to figure 23 below for the complete wiring diagram of the meter.
  • Page 30 Chapter 3. Wiring the AT600 electronics For proper wiring, the power lines, transducer cable and I/O lines must be routed through the appropriate cable glands (see figure 24 below). Also, refer to "Wiring cable specifications and requirements" on page 144 for the required cable specifications.

  • Page 31: Wiring The Line Power

    Chapter 3. Wiring the AT600 electronics Wiring the line power Attention European Customers!To meet CE marking requirements, all cables must be installed as described in "Wiring cable specifications and requirements" on page 144. The AT600 may be ordered for operation with power inputs of either 85-264 VAC or 12-28 VDC. The label on the shroud inside the electronics enclosure lists the required line voltage for your meter.
  • Page 32 Chapter 3. Wiring the AT600 electronics Figure 25: Typical XMT1000 Labels Note: This label snapshot is only for illustration purpose. The information on actual label may differ owing to specific regional requirements. AquaTrans™ AT600 User’s manual...

  • Page 33: Wiring The Transducers

    Chapter 3. Wiring the AT600 electronics Wiring the transducers Attention European Customers! To meet CE Mark requirements, all cables must be installed as described in “Wiring cable specifications and requirements” on page 144. Wiring a typical AT600 system requires interconnection of the following components: •...

  • Page 34: Wiring The Analog Output For Hart Communication

    Chapter 3. Wiring the AT600 electronics Wiring the analog output for HART communication The standard configuration of the model AT600 flow meter includes one isolated 0/4-20mA analog output. Connections to this output may be made with standard twisted-pair wiring. The current loop impedance for this circuit must not exceed 600 ohms.

  • Page 35: Wiring The Frequency/Totalizer/ Alarm Output

    Chapter 3. Wiring the AT600 electronics Wiring the frequency/totalizer/ alarm output The AT600 can accommodate up to two digital outputs. Each of these outputs can be configured as either a totalizer, frequency or alarm output (see “Programming digital communications” on page 53 for instructions). Each totalizer/frequency/alarm output requires a twisted pair cable.
  • Page 36 Chapter 3. Wiring the AT600 electronics [no content intended for this page] AquaTrans™ AT600 User’s manual...

  • Page 37: Chapter 4. Initial Setup And Programming

    Chapter 4. Initial setup and programming Chapter 4. Initial setup and programming Introduction This chapter provides instructions for programming the AT600 flow meter to place it into service. Before the AT600 can begin taking measurements, at least the following menus must be programmed: •...

  • Page 38: At600 Keypad Operation

    Chapter 4. Initial setup and programming AT600 keypad operation There are six keys and two LEDs on the AT600 keypad. The green light is a system health indicator and is on when the meter is operational and not in error. The red light is a system status indicator and is on when the meter is in error. Both lights being off indicates that the system is in configuration mode or no power has been applied to the meter.

  • Page 39: Display Programming

    Chapter 4. Initial setup and programming Display programming The AT600 keypad has six keys (see “AT600 keypad operation” on page 28) and the following two LEDs: • Green: The green LED is a system health indicator and it is on when the meter is operating without error. •...

  • Page 40: Changing The Display For One- Or Two Variable Screens

    Chapter 4. Initial setup and programming 4.3.1 Changing the display for one- or two variable screens An outline of a typical one- or two-variable screen is shown below. Measurement type Value Value units Error code To change the number of decimal places in the displayed value: From the display screen, press either the [ ] or [...

  • Page 41: Changing The Measurement Type For One Or Two-Variable Screens

    Chapter 4. Initial setup and programming 4.3.2 Changing the measurement type for one or two-variable screens To change the measurement type: From the display screen, press either the [ ] or [ ] keys   until the value is highlighted. After the value is highlighted, press [√] to open the measurement type option.
  • Page 42 Chapter 4. Initial setup and programming From the display screen, press either the [ ] or  ] keys until the value is highlighted.  After the value is highlighted, press [√] to open the display/decimal option. Use the [ ] and [ ] keys to scroll to the desired ...

  • Page 43: Starting Or Stopping The Totalizer Measurement

    Chapter 4. Initial setup and programming If the first value is set to time, the meter displays the time unit. If the first value is set to forward totals, reverse totals, or net totals, the meter displays the selected unit in the units setting selection. The available time measurement units are seconds, minutes, hours or days.

  • Page 44: Resetting The Totalizer

    Chapter 4. Initial setup and programming 4.3.5 Resetting the totalizer To reset the totalizer, proceed as follows: From the display screen, press either the ] or [ ] keys until the reset icon (a   partial circle with an arrow) is highlighted.

  • Page 45: Display Format

    Chapter 4. Initial setup and programming 4.4.1 Display format To begin programming your meter, you must select the system units as discussed below. Remember to record all programming data in Appendix B, Data records. The display format submenu is used to set up the type of format to be used in displaying information.

  • Page 46: Language

    Chapter 4. Initial setup and programming 4.4.3 Language To change the display language, on the display menu, select language and press [ ]. A screen similar to the √√ following opens. Use the [ ] and [ ] arrow keys to ...

  • Page 47: Program Review

    Chapter 4. Initial setup and programming 4.4.4.1 Program review The program review menu requires no user password. However, it provides view-only access to the information. To change any setting or parameter, you must enter the program menu by entering a valid password. 4.4.4.2 Program IMPORTANT: When you enter program (configure) mode, measurements stop and the output goes to error level.

  • Page 48: Units Setting

    Chapter 4. Initial setup and programming To check or change the date/time, highlight system date and press [√]. The following screen opens. Use the [ ] or [ ] key to select a   specific digit, then use the [ ] or [ ...

  • Page 49: Density

    Chapter 4. Initial setup and programming Confirm the selected units, press [x] three times to return to the units setting menu. 4.5.3 Density To configure flow density, use the [  or [ ] arrow key to select density  and press [√].

  • Page 50: Display

    Chapter 4. Initial setup and programming Use the [ ] or [ ] key to select a specific digit,   then use the [ ] or [ ] key to change that   digit as required. After all digits are correct, press [√] to save.

  • Page 51: Inputs/Outputs

    Chapter 4. Initial setup and programming Press [√] again, and a screen similar to the following opens. Use the [ ] or [ ] key to select a specific digit,   then use the [ ] or [ ] key to change that digit ...

  • Page 52: Setting The Analog Measurements

    Chapter 4. Initial setup and programming Select the desired output with the [ ] or [   arrow keys, and press [√] to enter the configuration menu. 4.6.1.1 Setting the analog measurements Select the desired output with the [ ] or [ ] arrow ...

  • Page 53: Calibrate The Output

    Chapter 4. Initial setup and programming Use the [ ] or [ ] key to select a specific digit, then use the [    or [ ] key to change that digit as required. After all digits are ...

  • Page 54: Programming The Digital Output Menu

    Chapter 4. Initial setup and programming 4.6.2 Programming the digital output menu To access the digital output menu, on the initial screen, highlight the lock symbol and press [√]. The following screen opens. Select program and press [√]. The following screen opens. Use the [ ] or [ ] key to select a...

  • Page 55: Setting The Pulse Output

    Chapter 4. Initial setup and programming 4.6.2.2 Setting the pulse output The pulse output generates a square wave pulse for each unit of flow that passes through the pipeline. Select pulse and press [√] to open the following screen. Setting the measurement type Select measurement and press [√] to open the following screen.
  • Page 56 Chapter 4. Initial setup and programming Setting the pulse time Use the [ ] or [ ] arrow keys to select pulse   time and press [√]. A screen similar to the following opens. The pulse time (i.e., the pulse width) is displayed.

  • Page 57: Setting The Frequency

    Chapter 4. Initial setup and programming Select hold or stop. In case of a flow measurement error, hold directs the meter to keep sending the same pulses sent at the last good reading. Stop directs the meter to stop sending pulses during the error condition.
  • Page 58 Chapter 4. Initial setup and programming Setting measurement type Select measurement and press [√] to open a screen similar to the following. In the measurement menu, select the type of analog output to be used and press [√] to return to the previous screen. Setting the base value, full value, and frequency The base value is the measurement that corresponds to a 0 Hz pulse.
  • Page 59 Chapter 4. Initial setup and programming Setting the frequency error handling To change the error handling status, select error handling in the menu and press [√]. The following screen opens. To change the current error handling status, select the desired option, and press [√].

  • Page 60: Setting The Alarm

    Chapter 4. Initial setup and programming Press [√] to open a screen similar to the following. Use the [] or [] key to select a specific digit, then use the [] or [] key to change that digit as required. After all digits are correct, press [x] to save.
  • Page 61 Chapter 4. Initial setup and programming Setting the alarm state Use the [] or [] arrow keys to select alarm state and press[√]. A screen similar to the following opens. Two alarm states are available: • Normal: Normally open, the alarm contacts close in an error condition •...

  • Page 62: Programming The Modbus/Service Port

    Chapter 4. Initial setup and programming Press [√] again, and a screen similar to the following opens. Note: The units shown are the units selected in the units setting menu. Use the [] or [] key to select a specific digit, then use the [] or [] key to change that digit as required.

  • Page 63: Programming Digital Communications

    Chapter 4. Initial setup and programming 4.6.4 Programming digital communications The AT600 flow meter supports the following digital communication types: • Modbus • HART A password is required to activate the digital communications options. In case of problems, contact Panametrics for assistance.
  • Page 64 Chapter 4. Initial setup and programming Press [√] again, and a screen similar to the following opens. The default address is 1, but 1 to 254 are the acceptable values. Use the [] or [] key to select a specific digit, then use the [] or [] key to change that digit as required.

  • Page 65: Hart

    Chapter 4. Initial setup and programming 4.6.4.2 HART To set up HART communication, select digital comm on the input/output screen and press [√]. The following screen opens. Note: Verify that the HART function is installed and activated on your meter. Press [√] again, and a screen similar to the following opens.

  • Page 66: Sensor Setup

    Chapter 4. Initial setup and programming Sensor setup To access the sensor setup menu from the measurement display, highlight the lock symbol and press [√]. The following screen opens. Select program and press [√]. The following screen opens Use the [] or [] key to select a specific digit, then use the [] or [] key to change that digit as required.

  • Page 67: Mounting Type

    Chapter 4. Initial setup and programming Select zero cutoff and press [√]. The following screen opens. Press [√] again, and a screen similar to the following opens. Note: The units shown are the units selected in the units setting menu. Use the [] or [] key to select a specific digit, then use the [] or []key to change that digit as required.

  • Page 68: Programming The Pipe Menu When Wetted Selected

    Chapter 4. Initial setup and programming Select wetted if need and press [√] to return to the previous screen. 4.7.3 Programming the pipe menu when wetted selected 4.7.3.1 Setting the pipe OD, ID, and wall thickness Select pipe and press [√]. The following screen opens.

  • Page 69: Programming The Pipe Menu When Clamp-On Selected

    Chapter 4. Initial setup and programming 4.7.4 Programming the pipe menu when clamp-on selected 4.7.4.1 Setting the pipe OD, ID, and wall thickness Select pipe and press [√]. The following screen opens. In the sensor setup menu, select pipe OD, pipe ID or wall thickness and press [√].
  • Page 70 Chapter 4. Initial setup and programming Table 3: Pre-programmed pipe materials Name Pipe material CARBON STEEL Carbon steel SS STEEL Stainless steel DUCT IRON Duct Iron CAST IRON Cast Iron Cuprum Aluminum BRASS Brass 30%Ni 30% nickel copper alloy 10%Ni 10% nickel copper alloy PYREX GLASS Pyrex glass...

  • Page 71: Setting The Pipe Lining

    Chapter 4. Initial setup and programming 4.7.4.3 Setting the pipe lining In the pipe menu, select lining and press [√]. The following screen opens. If there is no lining in your pipe, select no and press [√] to return to the previous screen.

  • Page 72: Programming The Transducer When Clamp-On Selected

    Chapter 4. Initial setup and programming Table 4: Pre-programmed pipe lining materials Name Lining material Tar epoxy Tar epoxy Pyrex glass Pyrex glass Asbestos cement Asbestos cement Mortar Mortar Rubber Rubber Teflon Teflon (PFTE) Press [√] again, and a screen similar to the following opens.
  • Page 73 Chapter 4. Initial setup and programming Press [√] again, and a screen similar to the following opens. Use the [] or [] key to select a specific digit, then use the [] or [] key to change that digit as required. After all digits are correct, press [√] to save.

  • Page 74: Entering A Special Transducer

    Chapter 4. Initial setup and programming Transducer number Transducer type CPW (WT-1P-1.0 on NDT plastic) CPB-1.0-HT CPB-2.0-HT CPB-1.0 CPB-1.0-MT C-RL-0.5 C-RL-1 C-RL-0.5 C-RL-1 C-RL-0.5 C-RL-1 C-RV-0.5 C-RV-1 C-RW-0.5 C-RW-1 C-RS-0.5 C-RS-1 C-RS-2 UTXDR-2 UTXDR-5 CAT-0.5 CAT-1 CAT-2 Currently supported transducer 4.7.5.2 Entering a special transducer Select transducer and press [√].
  • Page 75 Chapter 4. Initial setup and programming In the special transducer menu, select frequency and press [√]. The following screen opens. Select the appropriate option and press [√] twice to return to the previous screen. Select wedge angle and press [√]. The following screen opens.
  • Page 76 Chapter 4. Initial setup and programming Use the [] or [] key to select a specific digit, then use the [] or [] key to change that digit as required. After all digits are correct, press [x] to save. Then, press [x] to return to the previous screen.

  • Page 77: Programming The Transducer When Wetted Selected

    Chapter 4. Initial setup and programming 4.7.6 Programming the transducer when wetted selected 4.7.6.1 Entering a standard transducer Select transducer and press [√]. The following screen opens. Select STD and press [√]. A screen similar to the following opens. Press [√] again, and a screen similar to the following opens.

  • Page 78: Entering A Special Transducer

    Chapter 4. Initial setup and programming 4.7.6.2 Entering a special transducer Select transducer and press [√]. The following screen opens. Select SPEC and press [√]. A screen similar to the following opens. In the special transducer menu, select frequency and press [√]. The following screen opens.

  • Page 79: Programming The Number Of Traverses

    Chapter 4. Initial setup and programming Press [√] again, and a screen similar to the following opens. Use the [] or [] key to select a specific digit, then use the [] or [] key to change that digit as required. After all digits are correct, press [√] to save.

  • Page 80: Programming The Fluid Type

    Chapter 4. Initial setup and programming Select the appropriate option and press [√] to return to the previous screen. 4.7.8 Programming the fluid type If the fluid type is known, the meter performs flow rate calculations based on the programmed parameters for that fluid.

  • Page 81: Programming The Fluid Temperature

    Chapter 4. Initial setup and programming Use the [] or [] key to select a specific digit, then use the [] or [] key to change that digit as required. After all digits are correct, press [√] to save. Then, press [x] to return to the previous screen.

  • Page 82: Calculating The Path When Clampon Selected

    Chapter 4. Initial setup and programming 4.7.10 Calculating the path when clampon selected Select path and press [√]. The following screen opens. Press [√] again. Record this calculated transducer spacing for use in installing your transducers on the pipe. The calculation is based on your sensor setup input (pipe, transducer, fluid, and transducers).

  • Page 83: Enter The Path When Wetted Selected

    Chapter 4. Initial setup and programming 4.7.11 Enter the path when wetted selected Select path and press [√]. The following screen opens. In the sensor setup menu, select path length or axial length and press [√]. A screen similar to the following opens. Press [√] again.
  • Page 84 Chapter 4. Initial setup and programming [no content intended for this page] AquaTrans™ AT600 User’s manual...

  • Page 85: Chapter 5. Error Codes And Troubleshooting

    Chapter 5. Error codes and troubleshooting Chapter 5. Error codes and troubleshooting Error display in the user interface The bottom line of the LCD displays a single, top priority error message during operation. This line, called the error line, includes two parts: error header and error string. The error header indicates the error pattern and error number, while the error string gives a detailed description of the error information.

  • Page 86: E1: Low Signal

    Chapter 5. Error codes and troubleshooting 5.1.2.1 E1: Low signal Problem: Poor ultrasonic signal strength or the signal exceeds the programmed limit. Cause: When the SNR is less that the value of signal low limit or the signal cannot be found when the flow is started, the low signal error is displayed.

  • Page 87: E6: Cycle Skip

    Chapter 5. Error codes and troubleshooting 5.1.2.6 E6: Cycle skip Problem: The fluid acceleration exceeds the limits programmed in the program > advanced > error limits acceleration menu. Cause: This condition is usually caused by poor flow conditions or improper transducer alignment. Action: Refer to “Diagnostics”...

  • Page 88: Pipe Problems

    Chapter 5. Error codes and troubleshooting 5.2.2.2 Pipe problems Pipe-related problems may result either from a failure to observe the installation instructions, as described in Chapter 2, Installation, or from improper programming of the meter. By far, the most common pipe problems are the following: •...

  • Page 89: Chapter 6. Communication

    Chapter 6. Communication Chapter 6. Communication MODBUS 6.1.1 Introduction The AT600 flow meter generally follows the standard MODBUS communications protocol defined by the MODBUS APPLICATION PROTOCOL SPECIFICATION V1.1b, which is available at www.modbus.org. With this reference as a guide, an operator can use any MODBUS master to communicate with the AT600 flow meter.
  • Page 90 Chapter 6. Communication Register Register Access (in hex) (in decimal) level Description RO/RW Format 1310 Viewer Global unit group 16 for totalizer time INT32 1312 User Global unit group 17 for totalizer INT32 1314 User Global unit group 18 for unitless INT32 1316 User...
  • Page 91 Chapter 6. Communication Register Register Access (in hex) (in decimal) level Description RO/RW Format 3136 User Digital out 1 pulse value (IEEE 32 bit) 3138 User Digital out 1 frequency base value (IEEE 32 bit) 3140 User Digital out 1 frequency full value (IEEE 32 bit) 3142 User...
  • Page 92 Chapter 6. Communication Register Register Access (in hex) (in decimal) level Description RO/RW Format 3472 User Digital out 2 alarm measurement type INT32 3474 User Digital out 2 alarm test value INT32 3476 User Digital out 2 alarm state INT32 3478 User Digital out 2 alarm type...
  • Page 93 Chapter 6. Communication Register Register Access (in hex) (in decimal) level Description RO/RW Format 2000 2000 8192 User Pipe inner diameter (IEEE 32 bit) 2002 8194 User Pipe outer diameter (IEEE 32 bit) 2004 8196 User Pipe wall thickness (IEEE 32 bit) 2006 8198 User...
  • Page 94 Chapter 6. Communication Register Register Access (in hex) (in decimal) level Description RO/RW Format 20A0 8358 User (IEEE 32 bit) 20A6 MultiK Reynolds KFactor4 8360 User (IEEE 32 bit) 20A8 MultiK Reynolds KFactor5 8362 User (IEEE 32 bit) 20AA MultiK Reynolds KFactor6 20C0 8384 User...
  • Page 95 Chapter 6. Communication Register Register Access (in hex) (in decimal) level Description RO/RW Format 8768 Batch fwd totals (IEEE 32 bit) 2240 2240 8770 Batch rev totals (IEEE 32 bit) 2242 8772 Batch net totals (IEEE 32 bit) 2244 8774 Batch totals time (IEEE 32 bit) 2246...

  • Page 96: Hart

    Chapter 6. Communication HART 6.2.1 Device Identification The AT600 flow meter supports the HART communication protocol, for which the manufacturer ID is 0x9D (157 Dec) and the device type code is 0x9D73 (127 Dec). 6.2.2 Commands 6.2.2.1 Universal commands Table 8: Universal commands for HART Command Function Description Read unique identifier...

  • Page 97: Common Commands

    Chapter 6. Communication 6.2.2.2 Common commands Table 9: Common commands Command Function Description Read device variables Allows a master to request the value of up to four device variables. Read dynamic variable assignments Reads the device variables assigned to the primary, secondary, tertiary, and quaternary variables.
  • Page 98 Chapter 6. Communication Command 128 (0x80): Login with password This command sends a password to the flow meter. If the password is correct, the user may operate the meter until there has been a gap of 10 minutes since the last command. Table 11: Request data bytes for login with password Byte Format...
  • Page 99 Chapter 6. Communication Table 16: Command-specific response codes for logout and save Code Class Description Success No command-specific errors 1 - 4 Undefined Error Device-specific command error Error In write protect mode 7 - 15 Undefined Error Access restricted 17 - 127 Undefined Command 130 (0x82): Logout without saving This command will logout the flow meter and not save anything.
  • Page 100 Chapter 6. Communication Table 21: Response data bytes for read current user access right Byte Format Description None Table 22: Command-specific response codes for read current user access right Code Class Description Success No command-specific errors 1 - 127 Undefined Command 136 (0x88): Sends new password This command will send a new password to the flow meter.
  • Page 101 Chapter 6. Communication Command 144 (0x90): Read unit group This command will read the unit group in the meter. Table 26: Request data bytes for read unit group Byte Format Description Unsigned-8 Group index: 1: Velocity unit; 2: Actual volumetric unit; 3: Standard volumetric unit;...
  • Page 102 Chapter 6. Communication Command 145 (0x91): Read density value This command will read density value in meter. Table 29: Request data bytes for read density value Byte Format Description Unsigned-8 Density type: 1: Actual density; 2: Reference density; Table 30: Response data bytes for read density value Byte Format Description...
  • Page 103 Chapter 6. Communication Table 34: Command-specific response codes for read backlight setting Code Class Description Success No command-specific errors 1 - 5 Undefined Error Device-specific command error 7 - 127 Undefined Command 152 (0x98): Write unit group This command will write unit group in meter Table 35: Request data bytes for write unit group Byte Format...
  • Page 104 Chapter 6. Communication Table 37: Command-specific response codes for write unit group Code Class Description Success No command-specific errors Undefined Error Invalid selection 3 - 4 Undefined Error Too few data bytes received Error Device-specific command error Error In write protect mode 8 - 15 Undefined Error...
  • Page 105 Chapter 6. Communication Code Class Description 8 - 15 Undefined Error Access restricted 17 - 127 Undefined Command 154 (0x9A): Write display backlight This command is to set the back light. Table 41: Request data bytes for write display backlight Byte Format Description...
  • Page 106 Chapter 6. Communication Byte Format Description 1 - 4 Float Upper range value 5 - 8 Float Lower range value Table 46: Command-specific response codes for read analog measurement range value Code Class Description Success No command-specific errors 1 - 5 Undefined Error Device-specific command error...
  • Page 107 Chapter 6. Communication Command 168 (0xA8): Enter/exit fixed loop current Enter or exit the fixed mode of loop current. Table 50: Request data bytes for enter/exit fixed loop current Byte Format Description Unsigned-8 Fixed current level: 0: Exit fixed loop current; 1: fixed 4 mA;...
  • Page 108 Chapter 6. Communication Table 54: Response data bytes for set loop current zero Byte Format Description 0 - 3 Float Externally measured loop current level, units of milliamperes Table 55: Command-specific response codes for set loop current zero Code Class Description Success No command-specific errors...
  • Page 109 Chapter 6. Communication Code Class Description Error Too few data bytes received Error Device-specific command error Error In write protect mode Undefined Error Incorrect loop current mode or value 10 - 15 Undefined Error Access restricted 17 - 31 Undefined Error Busy 33 - 127...
  • Page 110 Chapter 6. Communication Command 172 (0xAC): Set analog measurement range values This command is to set the analog measurement range. Table 62: Request data bytes for set analog measurement range values Byte Format Description Unsigned-8 Upper and lower range values unit code 1 - 4 Float Upper range value...
  • Page 111 Chapter 6. Communication Command 173 (0xAD): Set loop current error handling This command will set the loop current output error handling. Table 65: Request data bytes for set loop current error handling Byte Format Description Unsigned-8 Analog output error handling: 0: Low;...
  • Page 112 Chapter 6. Communication Table 69: Response data bytes Byte Format Description Unsigned-8 Channel number Unsigned-8 Digital output type: 0: Off; 1: Pulse; 2: Frequency; 3: Alarm; Table 70: Command-specific response codes Code Class Description Success No command-specific errors Undefined Error Invalid selection 3 - 4 Undefined...
  • Page 113 Chapter 6. Communication Table 73: Command-specific response codes for read pulse configuration Code Class Description Success No command-specific errors Undefined Error Invalid selection 3 - 4 Undefined Error Too few data bytes received Error Device-specific command error 7 - 127 Undefined Command 178 (0xB2): Read frequency configuration This command is to read the frequency configuration.
  • Page 114 Chapter 6. Communication Command 179 (0xB3): Read alarm configuration This command is to read the alarm configuration. Table 77: Request data bytes for read alarm configuration Byte Format Description Unsigned-8 Channel number (1/2) Table 78: Response data bytes for read alarm configuration Byte Format Description...
  • Page 115 Chapter 6. Communication Command 184 (0xB8): Write digital configuration This command is to write the digital output configuration. Table 80: Request data bytes for write digital configuration Byte Format Description Unsigned-8 Channel number (1/2) Unsigned-8 Digital output type: 0: Off; 1: Pulse;...
  • Page 116 Chapter 6. Communication Command 185 (0xB9): Write pulse configuration This command is to write the pulse configuration. Table 83: Request data bytes for write pulse configuration Byte Format Description Unsigned-8 Channel number (1/2) Unsigned-8 Measurement type: 5: Forward batch total; 6: Reverse batch total;...
  • Page 117 Chapter 6. Communication Code Class Description Error Access restricted 8 - 127 Undefined Command 186 (0xBA): Write frequency configuration This command is to write the frequency configuration. Table 86: Request data bytes for write frequency configuration Byte Format Description Unsigned-8 Channel number (1/2) Unsigned-8 Measurement type...
  • Page 118 Chapter 6. Communication Code Class Description Error Invalid selection 3 - 4 Undefined Error Too few data bytes received Error Device-specific command error Error In write protect mode 8 - 15 Undefined Error Access restricted 8 - 127 Undefined Command 187 (0xBB): Write alarm configuration This command is to write the alarm configuration.
  • Page 119 Chapter 6. Communication Table 91: Command-specific response codes for write alarm configuration Code Class Description Success No command-specific errors Undefined Error Invalid selection 3 - 4 Undefined Error Too few data bytes received Error Device-specific command error Error In write protect mode 8 - 15 Undefined Error...
  • Page 120 Chapter 6. Communication Code Class Description 3 - 4 Undefined Error Too few data bytes received Error Device-specific command error Error In write protect mode 8 - 15 Undefined Error Access restricted 8 - 127 Undefined Command 192 (0xC0): Read pipe size This command is to read pipe size.
  • Page 121 Chapter 6. Communication Table 99: Response data bytes for read pipe material Byte Format Description 0 - 3 Unsigned-8 Pipe material 4 - 7 Float Pipe sound speed Table 100: Command-specific response codes for read pipe material Code Class Description Success No command-specific errors 1 - 5...
  • Page 122 Chapter 6. Communication Table 105: Response data bytes for read sensor meter setup Byte Format Description 0 - 3 Float Zero cutoff Table 106: Command-specific response codes for read sensor meter setup Code Class Description Success No command-specific errors 1 - 5 Undefined Error Device-specific command error...
  • Page 123 Chapter 6. Communication 28: CPB-2.0 29: CPB-0.5 30: CPS-1.0 CPT-1. 31: CWL-2 32: CPS-1.0 33: CPW (WT-1P-1.0 on AB82) 34: CPW (WT-1P-0.5 on NDT plastic) 35: CPW (WT-1P-1.0 on NDT plastic) 36: CPB-1.0-HT 37: CPB-2.0-HT 38: CPB-1.0 39: CPB-1.0-MT 301: C-RL-0.5 302: C-RL-1 304: C-RL-0.5 305: C-RL-1...
  • Page 124 Chapter 6. Communication Code Class Description Error Device-specific command error 7 - 127 Undefined Command 197 (0xC5): Read transducer traverses and spacing This command is to read transducer traverses and spacing. Table 110: Request data bytes for read transducer traverses and spacing Byte Format Description...
  • Page 125 Chapter 6. Communication Table 115: Command-specific response codes for read fluid information Code Class Description Success No command-specific errors 1 - 5 Undefined Error Device-specific command error 7 - 127 Undefined Command 200 (0xC8): Write pipe size This command is to write pipe size. Table 116: Request data bytes for write pipe size Byte Format...
  • Page 126 Chapter 6. Communication Command 201 (0xC9): Write pipe material This command is to write pipe material. Table 119: Request data bytes for write pipe material Byte Format Description 0 - 3 Unsigned-32 Pipe material 4 - 7 Float Pipe sound speed Table 120: Response data bytes for write pipe material Byte Format...
  • Page 127 Chapter 6. Communication Table 124: Command-specific response codes for write pipe lining attribute Code Class Description Success No command-specific errors 1 - 4 Undefined Error Too few data bytes received Error Device-specific command error Error In write protect mode 8 - 15 Undefined Error Access restricted...
  • Page 128 Chapter 6. Communication Command 204 (0xCC): Write transducer information This command is to write transducer information. Table 128: Request data bytes for write transducer information Byte Format Description 0 - 3 Unsigned-32 Transducer type: 0: Other; 10: CPT-0.5 11: CPT-2.0 12: CPT-0.5-MT C-PB-05-M 13: CPT-1.0-MT C-PB-10-M 14: CPT-2.0-MT C-PB-20-M...
  • Page 129 Chapter 6. Communication 0 - 3 Unsigned-32 Transducer type: 0: Other; 4 - 7 Unsigned-32 Transducer frequency 8 - 11 Unsigned-32 Transducer wedge type 12 – 15 Unsigned-32 Transducer wedge angle 16 – 19 Unsigned-32 Transducer wedge SOS 20 - 23 Unsigned-32 Transducer Tw Table 129: Response data bytes for write transducer information Byte...
  • Page 130 Chapter 6. Communication Table 132: Response data bytes for write transducer traverses and spacing Byte Format Description Unsigned-8 Transducer traverse 1 - 4 Unsigned-32 Transducer spacing Table 133: Command-specific response codes for write transducer traverses and spacing Code Class Description Success No command-specific errors 1 - 4...
  • Page 131 Chapter 6. Communication Table 136: Command-specific response codes Code Class Description Success No command-specific errors Undefined Error Invalid selection 3 - 4 Undefined Error Too few data bytes received Error Device-specific command error Error In write protect mode 8 - 15 Undefined Error Access restricted...
  • Page 132 Chapter 6. Communication Command 209 (0xD1): Read velocity KFactor table This command is to read the velocity KFactor table. Table 140: Request data bytes for read velocity KFactor table Byte Format Description Unsigned-8 Velocity KFactor index (1 - 6) Table 141: Response data bytes for read velocity KFactor table Byte Format Description...
  • Page 133 Chapter 6. Communication Table 145: Command-specific response codes for read Reynolds KFactor table Code Class Description Success No command-specific errors Undefined Error Invalid selection 3 - 4 Undefined Error Too few data bytes received Error Device-specific command error 7 - 127 Undefined Command 216 (0xD8): Write calibration configuration This command is to write calibration configuration.
  • Page 134 Chapter 6. Communication Table 148: Command-specific response codes for write calibration configuration Code Class Description Success No command-specific errors 1 - 4 Undefined Error Too few data bytes received Error Device-specific command error Error In write protect mode 8 - 15 Undefined Error Access restricted...
  • Page 135 Chapter 6. Communication Command 218 (0xDA): Write Reynolds KFactor Table This command is to write Reynolds KFactor table. Table 152: Request data bytes for write Reynolds KFactor Table Byte Format Description Unsigned-8 Reynolds KFactor index (1 - 6) 1 - 4 Float Reynolds value 5 - 8...
  • Page 136 Chapter 6. Communication Command 224 (0xE0): Read error limits This command is to read flow meter error limits. Table 155: Request data bytes for read error limits Byte Format Description Unsigned-8 Error limit: 1. Correlation peak limit 2. Acceleration limit 3.
  • Page 137 Chapter 6. Communication Command 225 (0xE1): Read signal setup This command is to read flow meter signal setup. Table 158: Request data bytes for read signal setup Byte Format Description Unsigned-8 Signal setup type: 1. Delta T offset 2. Percentage peak 3.
  • Page 138 Chapter 6. Communication Table 162: Response data bytes for read flowmeter S/N Byte Format Description Unsigned-8 Signal setup type: 1. Electronic S/N 2. UP sensor 3. S/N 4. DN sensor S/N 1 - 4 Unsigned-8 Table 163: Command-specific response codes for read flowmeter S/N Code Class Description...
  • Page 139 Chapter 6. Communication Code Class Description 3 - 4 Undefined Error Too few data bytes received Error Device-specific command error 7 - 127 Undefined Command 232 (0xE8): Write error limits This command is to write flow meter error limits. Table 167: Request data bytes for write error limits Byte Format Description...
  • Page 140 Chapter 6. Communication Code Class Description Error Invalid selection 3 - 4 Undefined Error Too few data bytes received Error Device-specific command error Error In write protect mode 8 - 15 Undefined Error Access restricted 17 - 127 Undefined Command 233 (0xE9): Write signal setup This command is to write flow meter signal setup.
  • Page 141 Chapter 6. Communication Command 239 (0xEF): Reset flow meter data This command is to reset flow meter data. Table 173: Request data bytes for reset flow meter data Byte Format Description Unsigned-8 Reset type: 1. Reset error log 2, Forward inventory 3.
  • Page 142 Chapter 6. Communication Command 241 (0xF1): Read the factory setting This command is to read the factory setting. Table 176: Request data bytes for read the factory setting Byte Format Description None Table 177: Response data bytes for read the factory setting Byte Format Description...
  • Page 143 Chapter 6. Communication Command 248 (0xF8): Write the factory setting This command is to write the factory setting. Table 179: Request data bytes for write the factory setting Byte Format Description Unsigned-8 Response time 0.5s 1 - 4 Unsigned-32 Sample size: Table 180: Response data bytes for write the factory setting Byte Format...
  • Page 144 Chapter 6. Communication Code Class Description Error Too few data bytes received Error Device-specific command error Error In write protect mode 8 - 15 Undefined Error Access restricted 17 - 127 Undefined Command 253 (0xFD): Reset to factory setting This command is to reset the setting to the factory default. Table 182: Request data bytes for reset to factory setting Byte Format...

  • Page 145: Additional Device Status

    Chapter 6. Communication Additional device status Command 48 returns 4 bytes of data, with Table 185: HART additional device status HART additional device status Device status Byte Error description Class bits set Amplitude error Error 4, 7 Low signal Error 4, 7 Sound speed error Error...

  • Page 146: Device Variables

    Chapter 6. Communication Device variables Table 186: Device variables Device variable classification code Device Measurement variable code Code Classification Velocity Velocity Actual volumetric Volumetric flow Standardized volumetric Volumetric flow Fwd. batch totals Volumetric Rev batch totals Volumetric Net batch totals Volumetric Batch totalizer time Time...

  • Page 147: Hart Engineering Units

    Chapter 6. Communication HART engineering units The unit types allowed for the AT600 flow meter device variables are listed below Table 187: HART engineering units Device variable Unit Code Classification Code Description Temperature Degrees Celsius Degrees Fahrenheit Volumetric flow Cubic feet per day Cubic feet per hour Cubic feet per minute Cubic feet per second...
  • Page 148 Chapter 6. Communication Device variable Unit Code Classification Code Description Velocity Feet per second Meters per second Volume Cubic meter Cubic decimeter (liter) Mega liters Million cubic meter Cubic feet Gallon Barrel Mega gallons Million cubic feet Standard cubic meter Standard liters Kilogram Metric ton...
  • Page 149 Chapter 6. Communication Device variable Unit Code Classification Code Description Pounds per day Short ton per seconds Short ton per minute Short ton per hour Short ton per day Mass per volume Pounds per cubic feet Kilograms per cubic meter Viscosity Centistokes Square meter per sec...
  • Page 150 Chapter 6. Communication [no content intended for this page] AquaTrans™ AT600 User’s manual...

  • Page 151: Appendix A. Specifications

    Appendix A. Specifications Appendix A. Specifications Overall operation and performance Fluid types: Liquids: acoustically conductive fluids, including most clean liquids, and many liquids with small amounts of entrained solids or gas bubbles Flow measurement: Correlation Transit-Time™ mode Pipe sizes: 0.5 in. (15 mm) or greater Pipe materials: All metals and most plastics.

  • Page 152: Electronics

    Appendix A. Specifications Electronics Enclosure: Epoxy-coated, copper free, aluminum weatherproof type 4X/IP67 Dimensions: 6.6 x 5.0 x 2.4 in. (168 x 128 x 61 mm) Weight: 3.5 lb/1.5 kg Channels: One channel Display: Graphic LCD (128 x 64 pixels) Keypad: Six-button keypad for full functionality operation Error display Green or red light...

  • Page 153: Clamp-On Ultrasonic Flow Transducers

    Appendix A. Specifications Clamp-on ultrasonic flow transducers Materials: • AT6 transducer • Transducer body: aluminum (ASTM AL6061) • Fixture body: aluminum (ASTM AL6061)/stainless steel (ASTM A316) • C-RS transducer • Transducer body: stainless steel (ASTM A316) • Fixture body: stainless steel •...

  • Page 154: General

    Appendix A. Specifications General A.4.1 Wiring cable specifications and requirements • Cable diameter range for PWR connection: 7 to 12mm, refer to gland Hole 1 on Figure 24 on page 20 • Cable diameter range for Hart, Modbus and I/O connection: 5 to 8mm, refer to gland Hole 2,3 and 4 in Figure 24 on page 20 •...

  • Page 155: Appendix B. Specifications

    Appendix B. Specifications Appendix B. Specifications Service record Whenever any service procedure is performed on the AT600 flow meter, the details of the service should be recorded in this appendix. An accurate service history of the meter can prove very helpful in troubleshooting any future problems.

  • Page 156: Initial Settings

    Appendix B. Specifications Initial settings The values for the initial measurement settings immediately after commissioning of the meter and verification of proper operation should be entered below. Table 189: Initial settings Parameter Initial value Pipe OD Pipe ID Pipe wall thickness Pipe material Pipe sound speed Lining thickness...

  • Page 157: Diagnostic Parameters

    Appendix B. Specifications Diagnostic parameters The values for the diagnostic parameters immediately after commissioning of the meter and verification of proper operation should be entered below. These initial values can then be compared to current values to help diagnose any future malfunction of the system.
  • Page 158 Appendix B. Specifications [no content intended for this page] AquaTrans™ AT600 User’s Manual...

  • Page 159: Appendix C. Specifications

    Appendix C. Specifications Appendix C. Specifications Introduction The AT600 firmware can be updated in the field. However, before attempting a firmware update, read the information in this section thoroughly to ensure a successful update process. Note: The instructions in this appendix are also available in Panametrics document p/n 714-1418. C.1.1 System requirements Make sure that your AT600 flow meter system meets the following requirements:...

  • Page 160: C.2.2 Update Steps

    Appendix C. Specifications Note: As indicated on the previous page, the current version of your AT600 firmware must be 01.02.23 or later. If your version is older than this, you cannot use this update method. Software versions 01.02.24, 01.03.xx, 02.xx.xx are examples of acceptable versions.

  • Page 161: Clearing An S2 Warning

    Appendix C. Specifications Clearing an S2 warning After the firmware update, the AT600 may show an S2 warning. If so, complete the following steps: In the update software, click on the com port button and select the specific port that was used for the update (see top red box in figure 39 below).
  • Page 162 Appendix C. Specifications [no content intended for this page] AquaTrans™ AT600 User’s Manual...

  • Page 163: Appendix D. Menu Maps

    Appendix D. Menu maps Appendix D. Menu maps The display measurement menu Figure 41: The display measurement menu AquaTrans™ AT600 User’s Manual...

  • Page 164: The Main Menu

    Appendix D. Menu maps The main menu Figure 42: The main menu AquaTrans™ AT600 User’s Manual...

  • Page 165: The Main Menu > User Preferences Menu

    Appendix D. Menu maps The main menu > user preferences menu Figure 43: The main menu > user preferences menu AquaTrans™ AT600 User’s Manual...

  • Page 166: The Main Menu > Inputs/Outputs Menu

    Appendix D. Menu maps The main menu > inputs/outputs menu Figure 44: The main menu > inputs/outputs menu AquaTrans™ AT600 User’s Manual...

  • Page 167: The Main Menu > Sensor Setup Menu

    Appendix D. Menu maps The main menu > sensor setup menu Figure 45: The main menu > sensor setup menu AquaTrans™ AT600 User’s Manual...

  • Page 168: The Main Menu > Calibration Menu

    Appendix D. Menu maps The main menu > calibration menu Figure 46: The main menu > calibration menu AquaTrans™ AT600 User’s Manual...

  • Page 169: The Main Menu > Advanced Menu

    Appendix D. Menu maps The main menu > advanced menu Figure 47: The main menu > advanced menu AquaTrans™ AT600 User’s Manual...

  • Page 170: The Main Menu > Factory Menu

    Appendix D. Menu maps The main menu > factory menu Figure 48: The main menu > factory menu AquaTrans™ AT600 User’s Manual...
  • Page 171 Warranty Warranty Each instrument manufactured by Panametrics Sensing is warranted to be free from defects in material and workmanship. Liability under this warranty is limited to restoring the instrument to normal operation or replacing the instrument, at the sole discretion of Panametrics Sensing. Fuses and batteries are specifically excluded from any liability.
  • Page 172 Warranty AquaTrans™ AT600 User’s Manual...
  • Page 174 Copyright 2023 Baker Hughes company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third-party product and company names are trademarks of their respective holders.

Table of Contents
