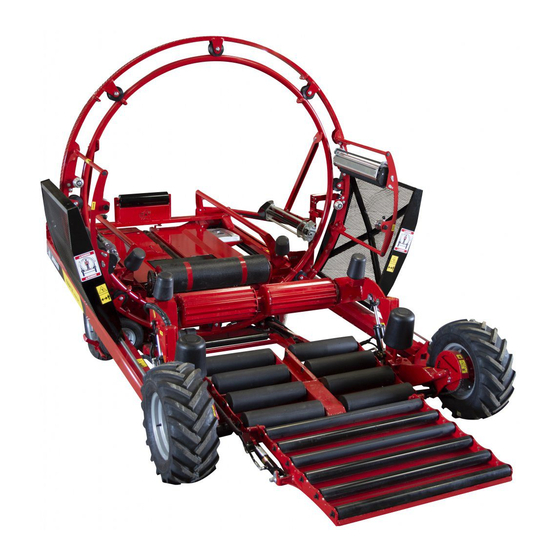

Anderson FUSION720 Xtractor Quick Start Manual

Hide thumbs Also See for FUSION720 Xtractor:

Advertisement

Quick Links

Download this manual
QUICK START
FUSION720 Xtractor
INLINE WRAPPING
INDIVIDUAL BALE WRAPPING

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUSION720 Xtractor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Anderson FUSION720 Xtractor

Summary of Contents for Anderson FUSION720 Xtractor

  • Page 1 QUICK START FUSION720 Xtractor INLINE WRAPPING INDIVIDUAL BALE WRAPPING...

  • Page 2: Product Range Overview

    Back Product range overview FUSION • Inline round and individual round bale wrapper • Equipped with patented hydraulic push off system “ XTractor™” • Inline wrapping capability: Up to 6’ diameter 4’ or 5’ length • Individual wrapping capability: Up to 5’ diameter 4’...
  • Page 3 Back Find out the best wrapping area and put the machine there. Remove the tongue and put it at its storage place (close to the steering wheel under the left fender) If necessary, unlock the steering axle by removing the locking pin (steering pin) Unlock the front gate (mechanic) and the ball valve to release the cylinder...
  • Page 4 Back Find out the best wrapping area and put the machine there. When wrapping individually you will need space in front of the exit ramp of the machine and a stopper as the bale will roll off the machine. Remove the tongue and put it in its storage place (close to the steering wheel under the left fender);...
  • Page 5 Back to Back to inline individual FUSION CONTROL PANEL Control panel WORKING LIGHTS ENGINE THROTTLE CONTROL XTRACTOR LEVER FRONT DRIVE WHEEL LEVER FRONT AXLE LEVER (LIFT THE FRONT OF THE MACHINE) REAR WHEEL STEERING LEVER HOOP SPEED CONTROL SELECTOR VALVE: WRAPPING OR MORVE THE WRAPPER/ « SMART START» HYDRAULIC COMPACTION VALVE COMPUTER (CONTROL BOX) HYDRUALIC COMPACTIION GAUGE...
  • Page 6 Back to Back to inline individual Make sure to retract the bale spears Put the pin for transport in the steering axle (see below image) Lift and lock the front tailgate in the up position (see below image) Be sure that you remove the plastic film rolls from the stretchers Be sure to turn off the Honda engine key Turn off the gas valve for the Honda engine The front axle must be at the highest position (as the traction wheels cannot touch the...
  • Page 7 Back to Back to inline individual Lift the locking mechanism from each end of the guide bars. The further out the bars the bigger bale. Note: Both sides have to be in the same position. The cone rollers on the exit ramp must also be adjusted at this time.
  • Page 8 Back to Back to inline individual Install Plastic rolls • To install your first roll of plastic you must have the stretcher on the side of the machine with the door that has a latch. To move the hoop you need to start the machine and follow the below steps.
  • Page 9 Back to Back to inline individual Attaching the plastic to the cut and hold (individual wrapping sequence only) • In individual wrapping mode, it is necessary to Install the plastic in both cut and hold systems. To do this follow the below instructions: Start the engine of the honda.
  • Page 10 Back to Back to inline individual...
  • Page 11 Back to Back to inline individual A hand lever located on the side of the wrapper is used to lift and lower the bale spears. (spears out for inline wrapping and in for individual) see below illustration.
  • Page 12 Back to Back to inline individual Adjustment of the pusher stroke and hoop start: • Putting the sensor for the hoop start closer to the rear of the machine will start the hoop sooner (applying more plastic to the intersection of your bales) •...
  • Page 13 The Smart start is a function that Anderson Developed that permits the user to start the tube without the bales sliding on the ground. The function will help resolve the problem of the first bales dragging on the ground and tearing the plastic.
  • Page 14 Photo of menu screens individual Back to inline Back to inline individual Composant Inline wrapping Individual wrapping Emergency stop button Stop the engine (on menue page) and go back one page for the rest of the functions Start engine Menu Navigate through the menu Steer the wrapper remotely Automatic pilot function...
