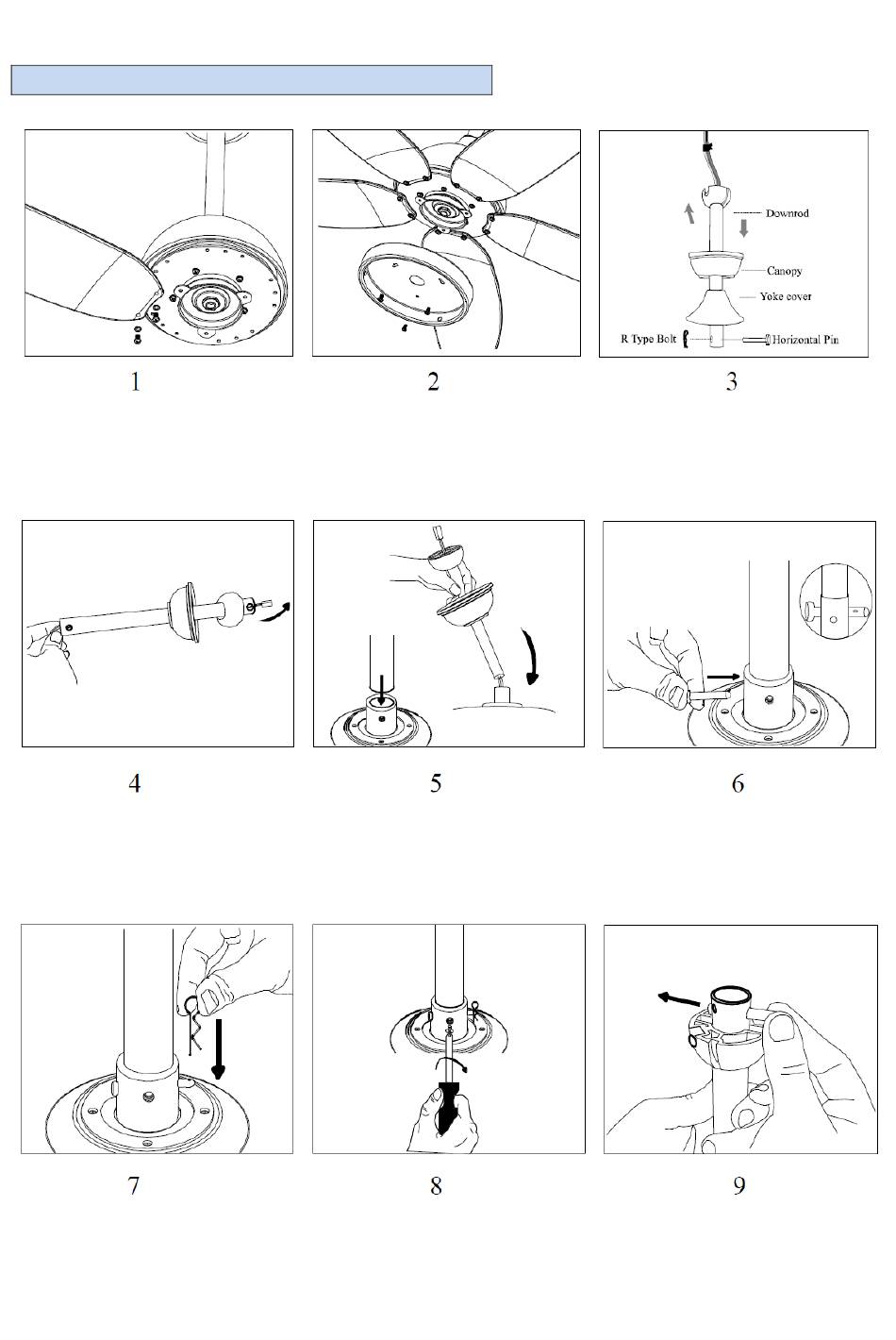

FAN INSTALLATION INSTRUCTIONS

Connect the ABS blades to the fan
motor with the screws and washers.
Insert the electrical cables inside the
downrod.
Apply the cotter pin to prevent the
screw from pulling out by itself.
Connect the LED housing to the fan
motor with the screws.
Insert downrod into the top of the fan
motor.
Lock the downrod definitively by
applying the safety screw in the side
hole
Make sure you have inserted canopy
and yoke cover along the central
downrod.
Lock the bracket by applying the
safety hook through the ends of the
hole
Apply the safety pin in the upper end
of the downrod.
