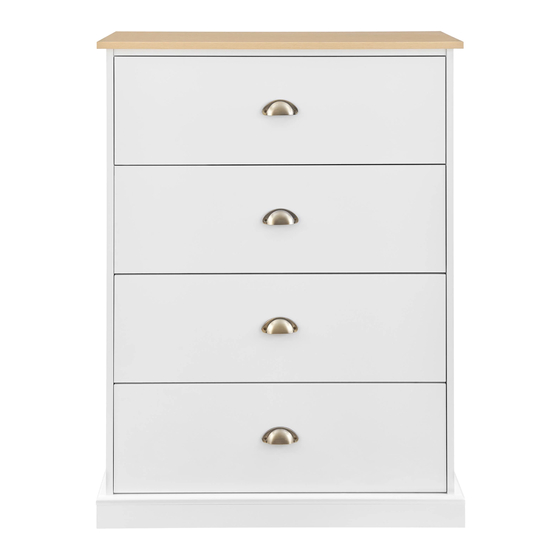

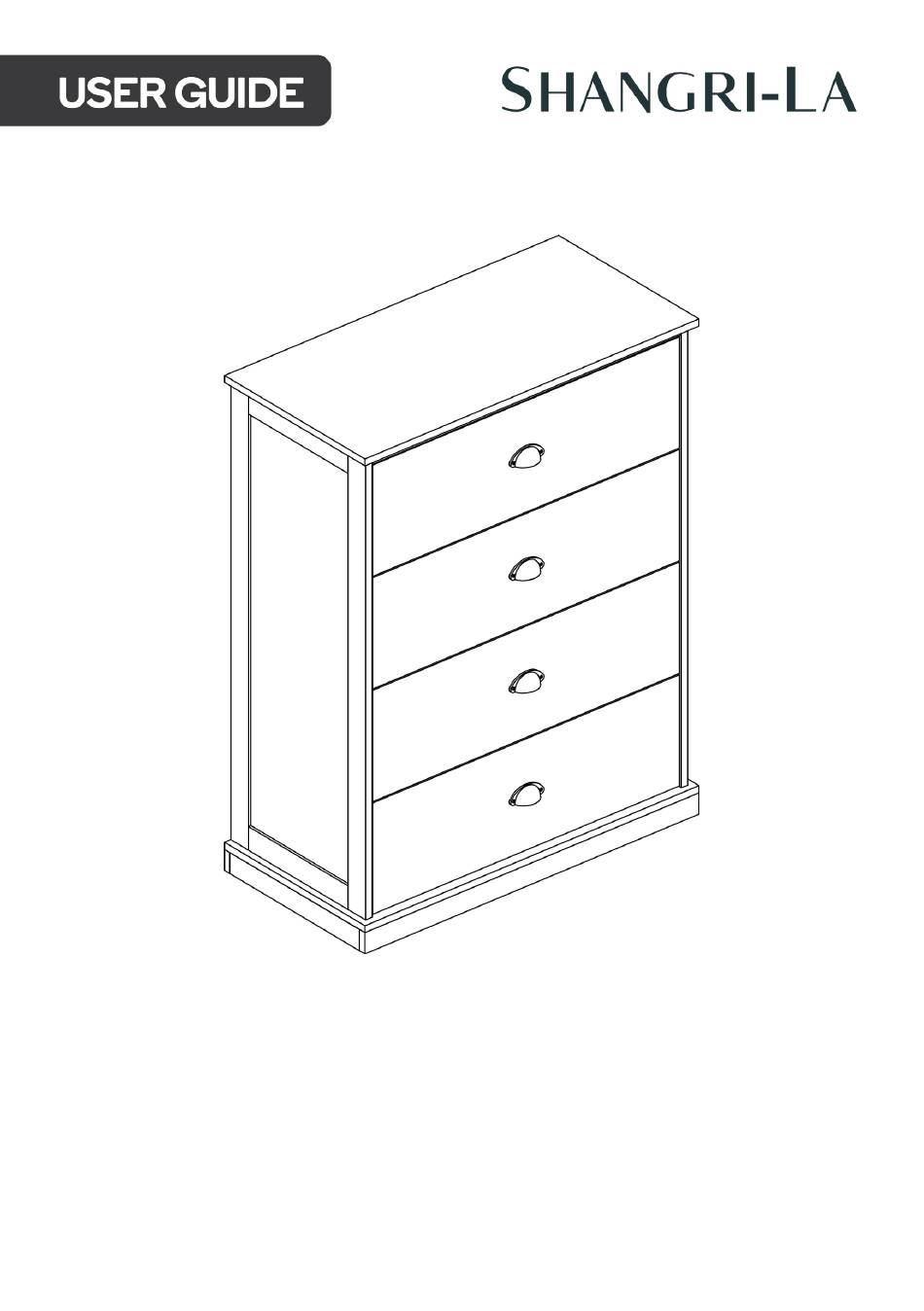

- Page 1 HAMPTON CHEST OF DRAWERS SLHAMPTCDWA, SLHAMPTCDBA...
- Page 3 COMPONENTS...
- Page 4 Hardware A (x34) B (x34) C Φ6x30 (x32) D Φ4x40 (x16) F (x4) G (x4) H (x4) E Φ3x12 (x32) I (x4) K (x2) J Φ4x14 (x2) L Φ4x25 (x3) N (x2) P (x4) M Φ2.5x12 (x26) O Φ4x30 (x20) R (x1) Q Φ3x12 (x8)
- Page 5 ASSEMBLY Step 1: Insert A into both ends of part 9. Repeat this step with the other part labelled 9. A (x4) ✗ ✓ Step 2: Insert C into parts labelled 9 then secure 9 with parts labelled 10. Ensuring the arrows on each B piece are pointing to the corresponding A piece, insert B pieces into parts labelled 10 and secure B to A with a Phillip head screwdriver (not supplied) B (x4)
- Page 6 Step 3: C (x8) D (x10) Step 4: A (x6) E (x16)
- Page 7 Step 5: B (x3) C (x2) Step 6: B (x3) C (x2)
- Page 8 Step 7: C (x4) D (x4) Step 8:...
- Page 9 Step 9: A (x4) J (x2) K (x2) L (x3)
- Page 10 Step 10: B (x4) C (x4)
- Page 11 Step 11: M (x26)
- Page 12 Step 12: Align the chest of drawers assembly with where you would like to place it. Mark two spots on the wall according to the K brackets. Using a drill (not supplied), make holes on the marked spots. With a hammer (not supplied), secure N through the holes. Align K on the chest of drawers assembly over N and using a Phillips screwdriver, secure the D screws through both components (K, N).
- Page 13 Step 13: Using a Phillips screwdriver, secure parts 12, 13 and 14 with O screws. Connect part 16 to part 14 with one O screw. Insert A onto part 11. Secure P onto part 11 with Q screws. Repeat the whole process three more times to create four drawer assemblies. A (x20) O (x20) P (x4)
- Page 14 Step 14: Slide part 15 onto one drawer assembly. Insert part 11 over parts 12, 13 and 16. Ensuring the arrows on each B piece are pointing to the corresponding A piece, insert B pieces into parts labelled 12, 13 and 16 and secure B to A with a Phillips head screwdriver Repeat this process three more times with the remaining drawer assemblies.
- Page 15 Assembly complete.
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
