SHANGRI-LA SLLEDBEDBQA User Manual

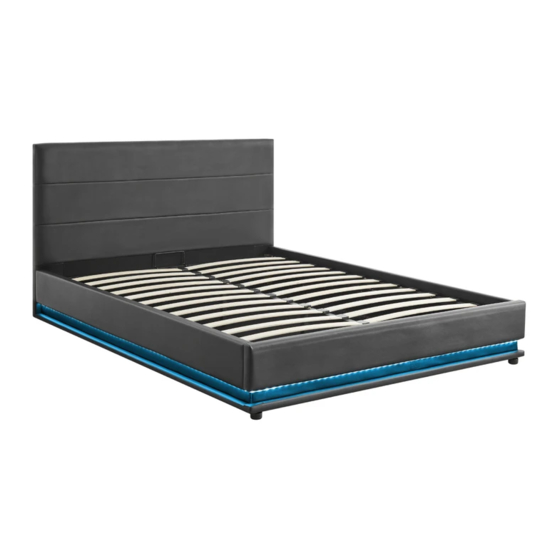

Led gas lift bed frame
Hide thumbs Also See for SLLEDBEDBQA:

Advertisement

Quick Links

Download this manual
LED GAS LIFT BED FRAME
(QUEEN)
SLLEDBEDBQA

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLLEDBEDBQA and is the answer not in the manual?

Questions and answers

Related Manuals for SHANGRI-LA SLLEDBEDBQA

Summary of Contents for SHANGRI-LA SLLEDBEDBQA

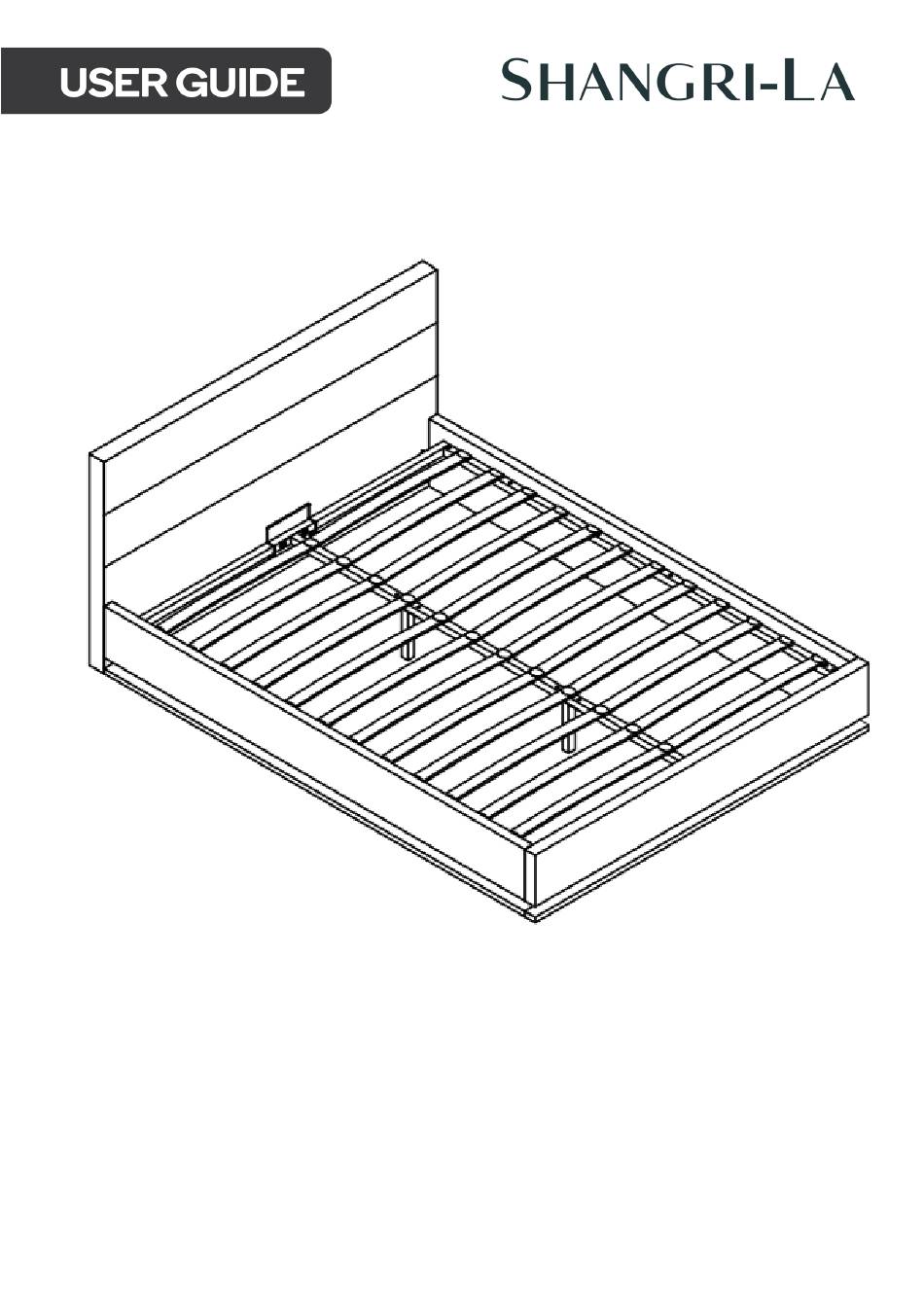

  • Page 1 LED GAS LIFT BED FRAME (QUEEN) SLLEDBEDBQA...

  • Page 3: Safety And Warnings

    SAFETY & WARNINGS • Ensure to read all instructions and warnings in this user guide prior to assembly. • When opening the packaging, ensure all components are accounted for. If components are missing, contact help.Kogan.com for assistance. • Clean the surface using only with a slightly damp cloth, do not use strong abrasive cleaners.
  • Page 4 Hardware 4 M8 Washer 1 Bed base fabric (x1) 2 Feet (x4) 3 M8x20 (x24) (x14) 5 Bracket (x2) 6 Allen Key 7 T-handle Allen 8 M8x40 Screw (x14) 12 End Caps 9 M8 Nut (x22) 10 Remote receiver (x1) 11 Remote (x1) (x24) 13 Slats (x24)
  • Page 5 ASSEMBLY Step 1 • Screw the feet (2) to the headboard (A) and footboard (B). • Insert x8 M8x20 screws (3) into the headboard and footboard. Feet (x4) M8 x 20 (x8)
  • Page 6 Step 2 • Align the holes on the ends of the footboard (B) with those on the left and right sideboards (C, D). • Align a bracket (5) with the corner between the left sideboard (C) and footboard (B), then use the Allen key (6) to secure the bracket (5) with x4 M8x20 screws (3). •...
  • Page 7 Step 3 • Connect the x4 frames (E,F) using the M8x20 screws (3), pay attention to the orientation of the left and right-side tube (E). • Connect the centre support bar (G) to the assembled frame using M8x40 screws (8) and M8 washers (4) on the outside of (F) and secure it with x4 M8 nuts (9).
  • Page 8 Step: 4 • Place the slat support assembly onto the gas lifts (on the sideboard) and secure it in place using x6 M8x40 screws (8), x6 M8 washers (4), and x6 M8 nuts (9) in the holes. • Tighten using the Allen key (6) and T-handle Allen key (7) to secure the screws. M8 washer (x6) M8x40 screws (x6) M8 nuts (x6)
  • Page 9 Step: 5 Install the lift handle (15) and mattress stopper (16) to the bed. Lift handle (x1) Mattress stopper (x1)
  • Page 10 Step: 6 • Connect 2 slats (13) together using x1 inner caps (14) and x2 end caps (12) to create a slat assembly. Repeat this process for the remaining slats (13). • Secure the slat assemblies by aligning the holes on the end caps (12) and inner caps (14) with the slots on the bed assembly.
  • Page 11 Step: 7 Extend the gas struts (18) on the left and right sideboards (C, D), then tighten the screws.
  • Page 12 Step: 8 • Connect the remote receiver (10) to the light strip (17). • Connect the power adapter (20) to the remote receiver (10). Remote receiver (x1) Light strip (x1) Power adapter (x1) Power adapter Light strip Remote receiver Remote...
  • Page 13 Step: 9 • Place the bed base fabric (1) onto the bed assembly. • Attach the strip light (17) to the channel on the outside of the sideboard and footboard. • Tighten all screws using the Allen key (6) and T-handle Allen key (7). Clean the bed using the alcohol wipe (19).

  • Page 14: Operation

    OPERATION Remote button controls The remote is used to control the LED light strip. Refer to the table below for the function of each button: Brightness + Brightness - (Speed up) (Speed down) Static red Static green Static blue Static white 7 colours jump Static orange Static pea-green...
  • Page 15 NOTES...
  • Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com.
