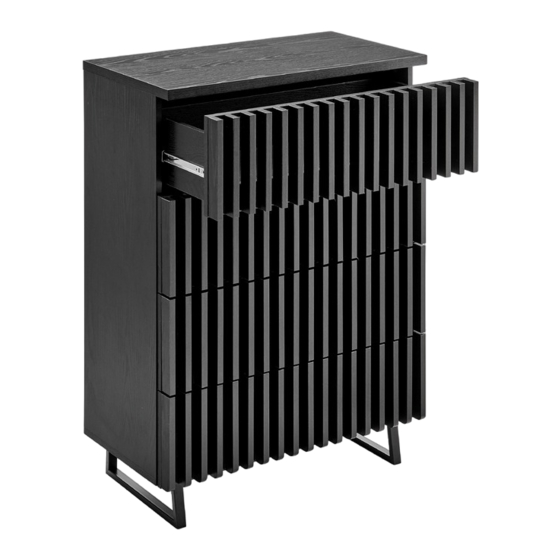

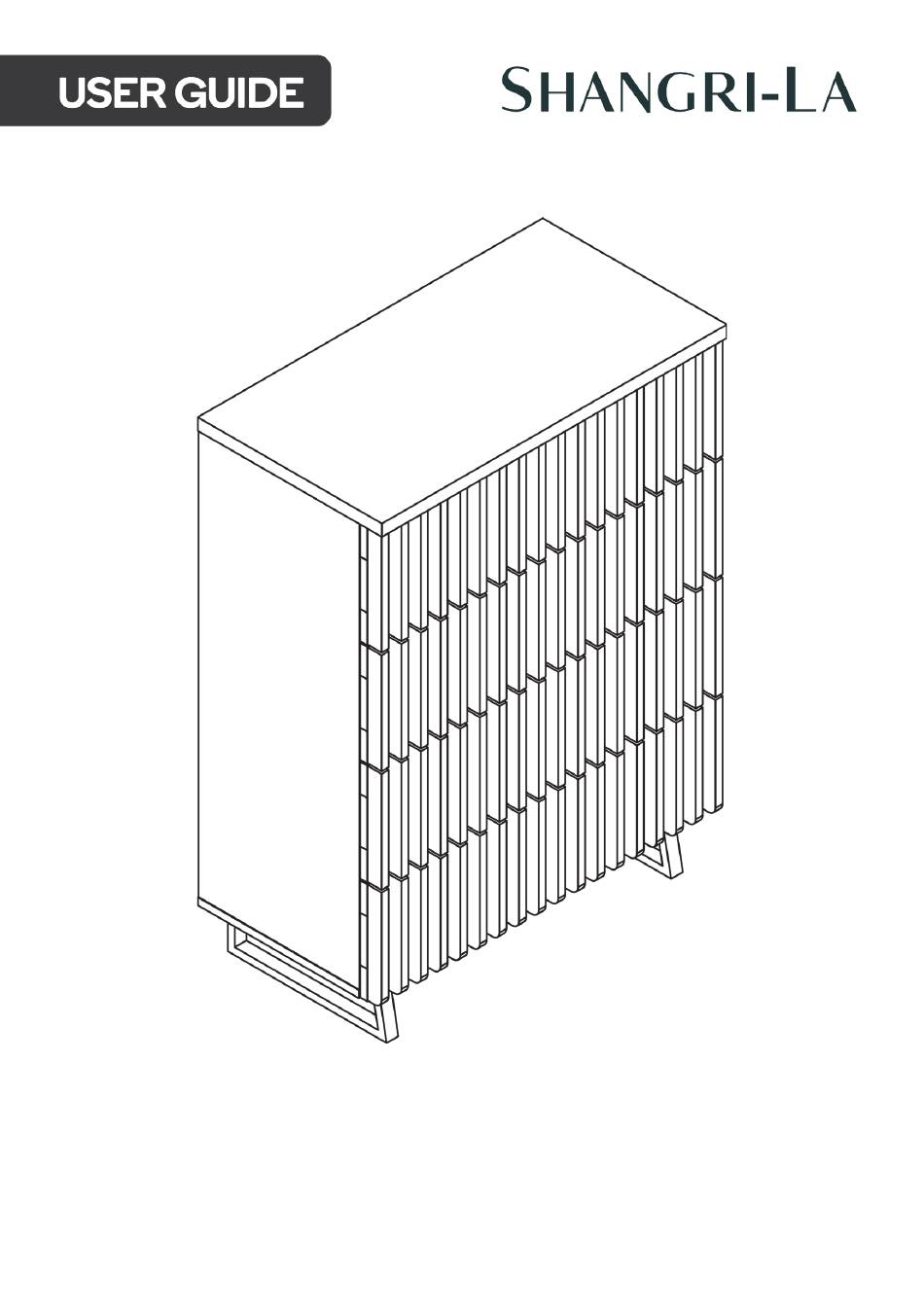

- Page 1 MANILA CHEST OF DRAWERS SLMANILCDWA, SLMANILCDBA, SLMANILCDNA...
-
Page 3: Safety And Warnings
To avoid any damage to these items during transportation, the slide runners and slide tracks have been pre-assembled together in pairs. Each pair includes a slide runner and slide track. Before assembling your new Shangri-La unit, please separate the slide runners from the slide tracks according to the following instructions. - Page 4 Step 1: Extend the slide runners apart from the slide track. Step 2: Gently press the plastic release lever on the slide runner while pulling the slide runner and slide track apart from each other. Step 3: The slide runner and slide track should now be separated.
- Page 5 COMPONENTS...
- Page 6 Parts list Dimensions (mm) Dimensions (mm) 340 x 865 x 15 217 x 731 x 50 340 x 865 x 15 217 x 731 x 50 394 x 738 x 25 148 x 300 x 12 340 x 737 x 15 148 x 300 x 12 424 x 704 x 12 146 x 661 x 12...
- Page 7 ASSEMBLY Step 1: Insert B onto the four parts labelled 12, three parts labelled 8, and one part labelled B L=35mm (x32)
- Page 8 Step 2: Repeat this process to all four parts labelled 10, and four parts labelled 11. F 12" (x8) G Φ3.5x12 (x16) DRAWER SLIDE (F x 4) DRAWER SLIDE (F x 4)
- Page 9 Step 3: Using a Phillips screwdriver, secure D screws as shown below. Repeat this process three more times. This will create four drawer assemblies. With one drawer assembly, secure A to B for part 8. Repeat this process two more times. There will be one drawer assembly leftover.
- Page 10 Step 4: A Φ15x9.6 (x4) Arrow to point in the direction of end hole...
- Page 11 Step 5: A Φ15x9.6 (x16) Arrow to point in Arrow to point in the direction of the direction of end hole end hole...
- Page 12 Step 6: E 12" (x8) G Φ3.5x12 (x16) DRAWER SLIDE (E x 8)
- Page 13 Step 7: B L=35mm (x12)
- Page 14 Step 8: B L=35mm (x4)
- Page 15 Step 9: A Φ15x9.6 (x2) Arrow to point in the direction of end hole...
- Page 16 Step 10: A Φ15x9.6 (x2) Arrow to point in the direction of end hole...
- Page 17 Step 11: A Φ15x9.6 (x6) Arrow to point in the direction of end hole...
- Page 18 Step 12: A Φ15x9.6 (x6) Arrow to point in the direction of end hole...
- Page 19 Step 13: B L=35mm (x2)
- Page 20 Step 14: A Φ15x9.6 (x2) C Φ5.5x38 (x4) Arrow to point in the direction of end hole...
- Page 21 Step 15: I L=4mm (x1) J Φ6x13x1 (x4) H 25x340x105 (x2) M Φ6x30 (x4)
- Page 22 Step 16: B L=35mm (x6)
- Page 23 Step 17: A Φ15x9.6 (x6) Arrow to point in the direction of end hole...
- Page 24 Step 18:...
- Page 25 Step 19: J Φ6x13x1 (x1) K Φ4x16 (x1) L (x1)
- Page 26 Step 20: Secure a screw (not supplied) through L to prevent the unit from toppling. TOPPLING FURNITURE WARNING: • It is strongly recommended that this product is permanently fixed to the wall. • Please seek professional advice if you are in doubt of what fixing device to use. •...
- Page 27 Assembly complete.
- Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
