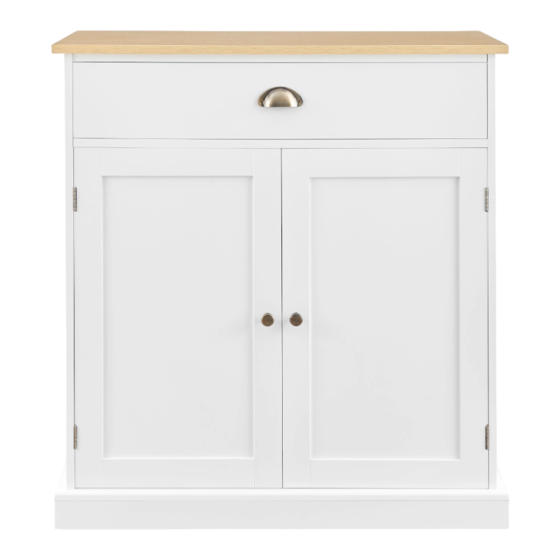

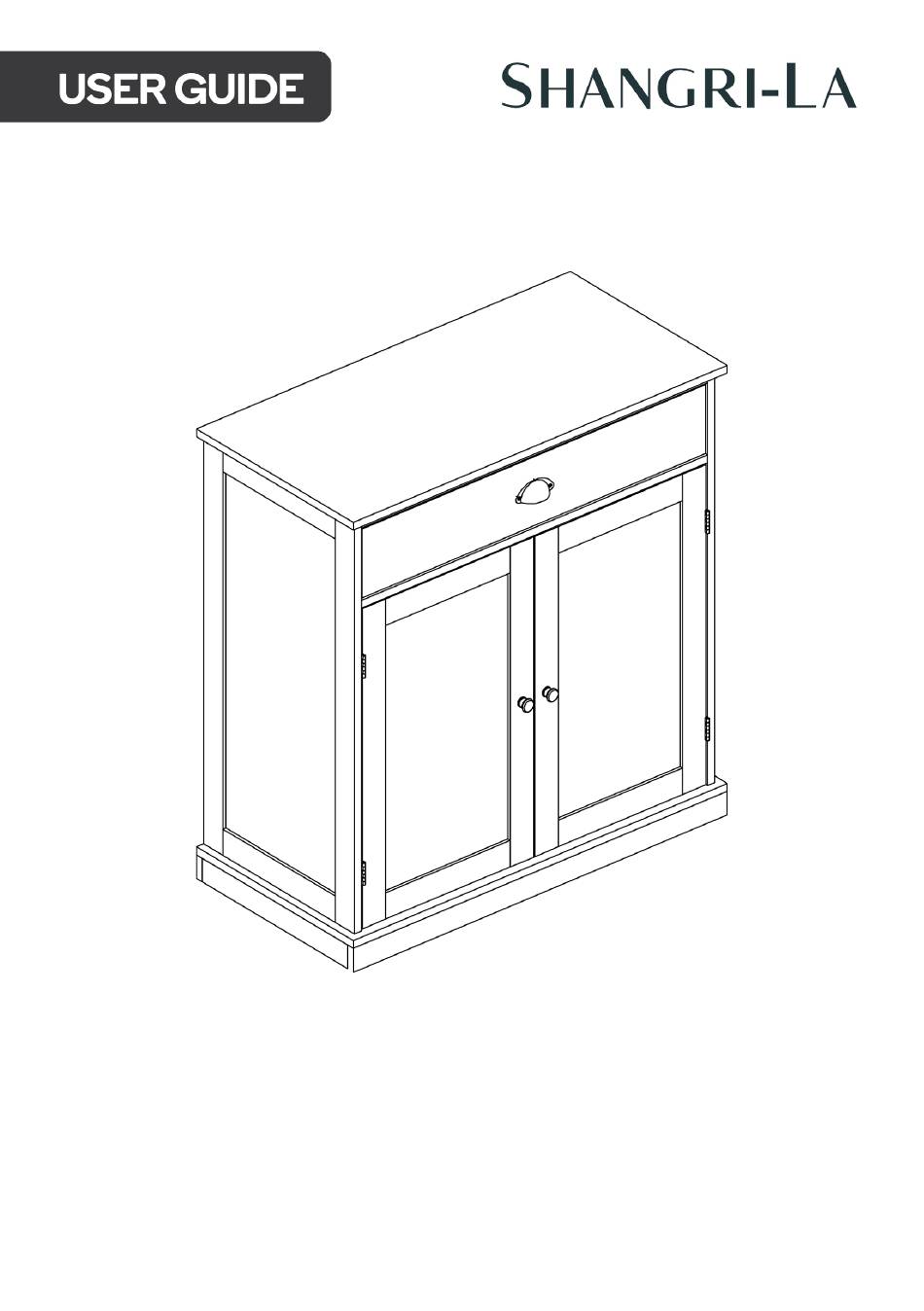

- Page 1 HAMPTON STYLE BUFFET SLHAMPTBFWA, SLHAMPTBFBA...
- Page 3 COMPONENTS...
- Page 4 Hardware A (x21) B (x21) C Φ6x30 (x28) D Φ4x40 (x14) F (x1) H (x1) E Φ2.5x12 (x2) G Φ3x10 (x30) I (x1) J (x1) K (x1) L Φ4x14 (x2) M (x2) O (x4) P (x2) N Φ4x25 (x3) Q (x2) R (x2) S (x1) T Φ4x30 (x5)
- Page 5 ASSEMBLY Step 1: Insert A into both ends of part 9. Repeat this step with the other part labelled 9. A (x4) ✗ ✓ Step 2: Insert C into parts labelled 9 then secure 9 with parts labelled 10. Ensuring the arrows on each B piece are pointing to the corresponding A piece, insert B pieces into parts labelled 10 and secure B to A with a Phillips head screwdriver (not supplied).
- Page 6 Step 3: C (x8) D (x10) Step 4: E (x2) F (x1)
- Page 7 Step 5: A (x8) G (x6) Step 6: B (x4) C (x4)
- Page 8 Step 7: B (x4) C (x4) Step 8: C (x4) D (x4)
- Page 9 Step 9: A (x4) L (x2) N (x3) Step 10: B (x4) C (x4)
- Page 10 Step 11: Step 12: V (x30)
- Page 11 Step 13: G (x10) O (x4) P (x2) Q (x2) R (x2)
- Page 12 Step 14: G (x8)
- Page 13 Step 15: Insert A onto part 13. Using a Phillips screwdriver, secure S onto part 13 using G screws. Using a Phillips screwdriver, connect parts labelled 14, 15 and 16 with T screws. A (x5) G (x8) T (x4) Step 16: Using a Phillips screwdriver, secure part 18 onto part 16 with a T screw. Secure I and J onto parts labelled 14 and 15 respectively with G screws.
- Page 14 Step 17: Align the buffet assembly with where you would like to place the buffet assembly. Mark two spots on the wall according to the M brackets. Using a drill (not supplied), make holes on the marked spots. With a hammer (not supplied), secure U through the holes. Align M on the buffet assembly over U and using a Phillips screwdriver, secure the D screws through both components (M, U).
- Page 15 Step 18: Assembly complete.
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
